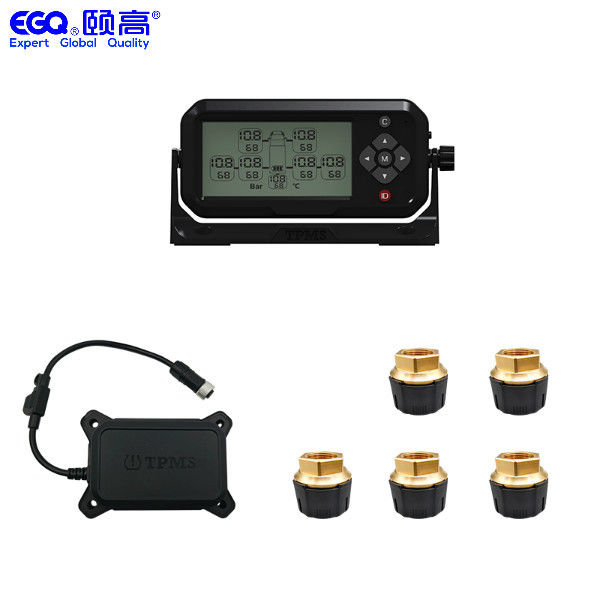

CE FCC ROHS One Tire Wireless Tyre Pressure Monitoring System
OTR sensors one tire Truck TPMS For RV non iclude repeter
component of product
Sensor and receiver corresponding wheel position number
Alarm function
leakage warning
Product parameters
| Commercial vehicle repeater |
|
| Machine port |
Vehicle battery ACC input(24V) |
| Machine weight (excluding packaging) |
120g±3g |
| working temperature |
-40-85℃ |
| Normal current |
4.5mA |
| Reception sensitivity |
-95dbm |
| Transmit frequency |
433.92MHz |
| Transmit current |
<50mA |
| Transmit power |
<10dbm |
| Waterproof grade |
IP67 |
| Dimensions |
11.7cm(length)*7.9cm(width)*2.2cm(height) |
1. What are the advantages of TPMS ?
Reduce Driving Risks
Improve Fuel Economy
Prolong lifetime of the tires
2. Sensor Features & Specifications:
Sensor Features:
Reliable cap sensors, easy to install.
Water resistant.
Replaceable sensor batteries.
Sensors transmit pressure and temperature data every 5 minutes.
Fast leakage alert.
Individually coded sensors.
Anti-theft desigh.
| OTR sensors |
|
| Dimensions |
Φ2.4cm(diameter)*2cm( height ) |
| Plastic parts material |
Nylon + glass fiber |
| Metal part material |
copper |
| Shell temperature resistance |
-50℃-150℃ |
| Thread Size |
12V1 internal thread(customizable) |
| Machine weight (excluding packaging) |
23g±1g |
| Power supply mode |
Button Battery |
| Battery model |
CR1632 |
| Battery capacity |
135mAh |
| Working voltage |
2.1V-3.6V |
| Transmit current |
8.7mA |
| Self-test current |
2.2mA |
| Sleep current |
0.5uA |
| Sensor working temperature |
-30℃-80℃ |
| Transmit frequency |
433.92MHZ |
| Transmit power |
-10dbm |
