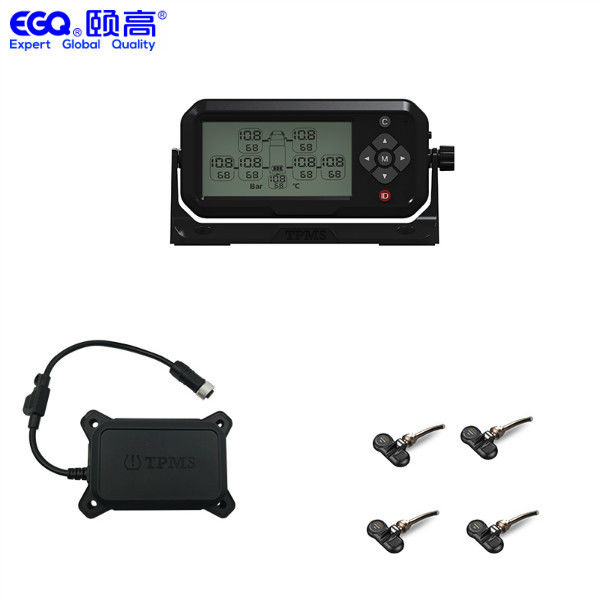

Rechargeable LCD Screen RV Tire Pressure Monitoring System
1. What are the advantages of TPMS ?
Reduce Driving Risks
Improve Fuel Economy
Prolong lifetime of the tires
2. Monitor Features & Specifications:
Monitor Features:
Reliable and easy to install.
Large LCD screen.
Built-in rechargeable lithium battery.
Vibration awakening.
Automatical backlight.
Configurable high/low pressure warnings.
Configurable high temperature warnings.
Visible and audible alerts.
Selectable pressure units ( BAR, PSI ).
Temperature unit selectable (℃, ℉)
Monitors up to 22 tires maximum.
Long range between monitor and sensors.
Individual configuration of axle high/low pressure warnings.
Awake sensor to program ID code.
Product parameters
| Receiver(7 Wheels) |
|
| Display interface |
LCD segment code (7 wheels with the same display) |
| Receiver port |
Vehicle battery, ACC input and RS232 output |
| Machine weight (excluding packaging) |
230g±5g |
| Abnormal self-recovery |
Toggle Switches(The switch is facing up, restart after disconnecting the external power supply.) |
| Working temperature |
-30-80℃ |
| Power supply mode |
internal rechargeable lithium battery and external power supply |
| Interface voltage |
Vehicle battery 24Volt, ACC24Volt |
| Built-in battery voltage |
3.5V-4.2V |
| Bright working current |
12mA |
| Black working current (for data communication) |
4.5mA |
| Reception sensitivity |
-95dbm |
| Dimensions |
13.5cm*6.5cm*2.2cm |
| Warranty |
1 years |
| Type |
Digital |
| Sensor(Ordinary internal type sensor) |
|
| Plastic parts material |
Nylon + glass fiber |
| Shell temperature resistance |
-50℃-150℃ |
| Antenna sheet material |
Phosphorus copper nickel plating |
| Machine weight (excluding valve) |
16g±1g |
| Power supply mode |
Button Battery |
| battery model |
CR2050 |
| battery capacity |
345mAh |
| Working voltage |
2.1V-3.6V |
| working temperature |
8.7mA |
| Self-test current |
2.2mA |
| Dormant current |
0.5uA |
| Working temperature |
-40℃-125℃ |
| Transmit frequency |
433.92MHZ |
| Transmit power |
>-12dBm |
| Dimensions |
5.3cm(length)*3.5cm(width)*1.4cm(height)(excluding valve) |
| Warranty |
12 Months |
System function
Reduce the pollution of vehicle exhaust emissions to the environment, and create a green and environmental friendly social environment;
Prevent tire blowout and reduce the risk of accidents;
Esteemed customer:
Thank you for buying our Tire pressure Monitoring System (TPMS). This system makes you more safety when driving.It can real-time monitor tire pressure and temperature conditions.If detected any abnormal pressure and temperature of tires, the system will transmit real-time voice alarm and flash warning icon to remind the driver. Real-time monitoring and warning can not only avoid risk of traffic accident but also make passenger safety.
In addition, this system can effectively help improve the vehicle comfortableness and driving safety, reduce vehicle wear, save fuel consumption and avoid risk of flat tire.
FAQ
1. Q: Are you a manufacturers or trading company?
A: We are a manufacturers.
2. Q: Where is your factory located? How can I visit there?
A: Our factory is located in Shenzhen, Guangdong Province, China, about 1 hours by train from Hongkong. Warmly welcome oversea or domestic clients to visit our factory.
3. Q: How can I get some samples?
A: Please feel free to contact us by e-mail or alibaba to inquiry the samples request. We are honored to offer you samples to test and check.
4. Q: How does your factory do regarding quality control?
A: Quality is priority. TAT people always to great importance to quality controlling. Our factory has passed ISO9001, ISO14001, CE, FCC certificated.
5. Q: What is your after-sale service?
A: We offer a 100% product quality guarantee.
6. Q: What is your MOQ?
A: Any quantity is acceptable for your order, and the price is negotiable for large quantity.
7. Q: When will you make the lead time ?
A: We can make the lead time within 3-10 working days for normal order qty. As for a big order quantity that we will according quantity to decided delivery date.
