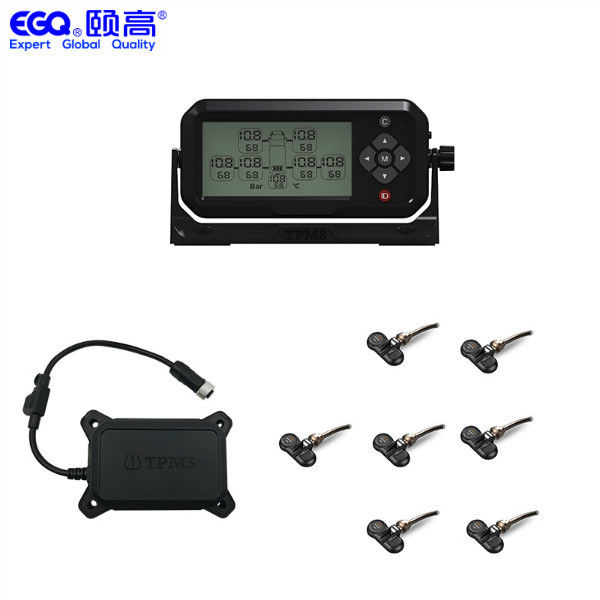

7 sensors Wireless Tire Pressure Monitoring System For RV
Customization
1. Could design your own logo on the product
2. Could design the special color box, blister card and double blister as your requirement
3. Offering you the high-quality product with attractive and competitive price!
Products Description
1. Fit for 2-26 tyre vehicle of DC 12V/24V
2. Tyre pressure sensor range : 0-14 Bar / 0-203 Psi
3. Tyre temperature high limit :125.C
4. switched to another vehicle easily
5. Flexible display placement on dashboard
6. Compact-size wireless display
7. Intelligent sleeping mode for power saving
8. use chips Freescale 87E, Japanese Maxell battery.
Product parameters
| Receiver(7 Wheels) |
|
| Display interface |
LCD segment code (7 rounds with the same display) |
| Receiver port |
Vehicle battery, ACC input and RS232 output |
| Machine weight (excluding packaging) |
230g±5g |
| Abnormal self-recovery |
Toggle Switches(The switch is facing up, restart after disconnecting the external power supply.) |
| Working temperature |
-30℃-80℃ |
| Power supply mode |
Internal rechargeable lithium battery and external power supply |
| Interface voltage |
Vehicle battery 24V, ACC24V |
| Internal battery voltage |
3.5V-4.2V |
| Bright working current |
12mA |
| Black working current (for data communication) |
4.5mA |
| Reception sensitivity |
-95dbm |
| Dimensions |
13.5cm(length)*6.5cm(width)*2.2cm(height) |
| Warranty |
Warranty within 12 months after delivery |
| Type |
Digital |
| Sensor(Ordinary internal type sensor) |
|
| Plastic parts material |
Nylon + glass fiber |
| Shell temperature resistance |
-50℃-150℃ |
| Antenna sheet material |
Phosphorus copper nickel plating |
| Machine weight (excluding valve) |
16g±1g |
| Power supply mode |
Button Battery |
| battery model |
CR2050 |
| battery capacity |
345mAh |
| Working voltage |
2.1V-3.6V |
| working temperature |
8.7mA |
| Self-test current |
2.2mA |
| Dormant current |
0.5uA |
| Working temperature |
-40℃-125℃ |
| Transmit frequency |
433.92MHZ |
| Transmit power |
>-12dBm |
| Dimensions |
5.3cm(length)*3.5cm(width)*1.4cm(height)(excluding valve) |
| Warranty |
Within 1 years after delivery |
| Pressure range |
0Psi~203Psi/0Bar~14Bar |
System function
Reduce vehicle tire damage and extend the service life of tires;
Reduce fuel consumption of vehicles, reduce the cost of use of vehicles;
Maintain the normal braking effect and reduce the occurrence of safety accidents;
Reduce abnormal wear of relevant parts such as vehicle shock absorber and suspension system;
Maintain the normal tire pressure and improve the comfort of vehicle ride;
Reduce the pollution of vehicle exhaust emissions to the environment, and create a green and environmental friendly social environment;
Q: How can I get the sample to check your quality?
A: After price confirmation, you can require for samples to check our product’s quality. If you just need aTPMS sample to check the design and quality. We will provide you sample for free as long as you afford the express freight.
Q: What can I get the price?
A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please tell us in your email so that we will regard you inquiry priority.
Q: What is your term of delivery?
A: We accept EXW, FOB Shenzhen is ok. You can choosethe one which is the most convenient or cost effective for you.
Q: What about the lead time for the mass production?
A: Honestly, it depends on the order quantity and the season you place the order.
