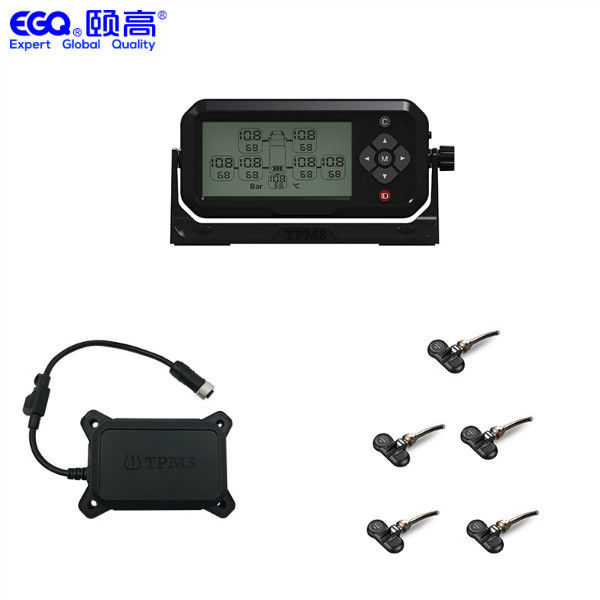

Digital Five Tire Truck TPMS RV Tire Pressure Monitoring System
Main features:
Compatible with both rxternal and internal sensor.
DIY installation for external sensor
Replacement battery for external sensor:CR2050B
Long life battery for internal sensor.
Visual and audible warning.
Convertible pressure and temperature unit.
Product parameters
| Receiver(7 Wheels) |
|
| Display interface |
LCD segment code (7 tires with the same display) |
| Receiver port |
Vehicle battery, ACC input and RS232 output |
| Machine weight (excluding packaging) |
230±5g |
| Abnormal self-recovery |
Toggle Switches(The switch is facing up, restart after disconnecting the external power supply.) |
| Working temperature |
-30-80℃ |
| Power supply mode |
internal rechargeable lithium battery and external power supply |
| Interface voltage |
Vehicle battery 24Volt, ACC24Volt |
| Built-in battery voltage |
3.5V-4.2V |
| Bright working current |
12mA |
| Black working current (for data communication) |
4.5mA |
| Reception sensitivity |
-95dbm |
| Dimensions |
13.5cm(length)*6.5cm(width)*2.2cm(height) |
| Warranty |
Within 12 months |
| Type |
Digital |
| Sensor(Ordinary internal type sensor) |
|
| Plastic parts material |
Nylon + glass fiber |
| Shell temperature resistance |
-50℃-150℃ |
| Antenna sheet material |
Phosphorus copper nickel plating |
| Machine weight (excluding valve) |
16g±1g |
| Power supply mode |
Button Battery |
| battery model |
CR2050 |
| battery capacity |
345mAh |
| Working voltage |
2.1V-3.6V |
| working temperature |
8.7mA |
| Self-test current |
2.2mA |
| Dormant current |
0.5uA |
| Working temperature |
-40℃-125℃ |
| Transmit frequency |
433.92MHZ |
| Transmit power |
>-12dBm |
| Dimensions |
5.3cm(length)*3.5cm(width)*1.4cm(height)(excluding valve) |
| Warranty |
12 Months |
System function
Reduce the pollution of vehicle exhaust emissions to the environment, and create a green and environmental friendly social environment;
Prevent tire blowout and reduce the risk of accidents;
Reduce vehicle tire damage and extend the service life of tires;
Reduce fuel consumption of vehicles, reduce the cost of use of vehicles;
Maintain the normal braking effect and reduce the occurrence of safety accidents;
Esteemed customer:
Thank you for buying our Tire pressure Monitoring System (TPMS). This system makes you more safety when driving.It can real-time monitor tire pressure and temperature conditions. If detected any abnormal pressure and temperature of tires, the system will transmit real-time voice alarm and flash warning icon to remind the driver. Real-time monitoring and warning can not only avoid risk of traffic accident but also make passenger safety.
In addition, this system can effectively help improve the vehicle comfortableness and driving safety, reduce vehicle wear, save fuel consumption and avoid risk of flat tire.
Please read the instruction carefully before using this product. If there is any misunderstanding,please consult distributor or phone customer service, thanks!
FAQ
Q1: What is your product and technique?
A: We produce TPMS products and measure tire pressure, temperature, acceleration through TPMS products show you.
Q2: What is your product apply fields?
A: Our productsare applied to Automotive electronics industry.
Q3: How does purchase your existing product or customized my product?
A-1: Existing product: Please go to choose your favorite product and memorize product code, determine product request (e.g.: color, lids / top, etc.) and order quantity, together with your consignee address, phone, name and port of discharge etc.
A-2: Customized your product: Please mailing your existing sample to us. If you have own design drawing (Include material name, component weight, size, and configuration etc.details),
A-3: Once receive your any information or sample, we will send best price and order process to you within 24 hour and continuously follow-up services for you, answer your any problem, until your receive the goods.
Q4: Are the product dependable?
A: Yes, we are dealing with Automotive electronics industry since 2013. We are attention to each client request and feedback; we have established long term cooperation with them. All productsare top-quality and quality guaranteed.
