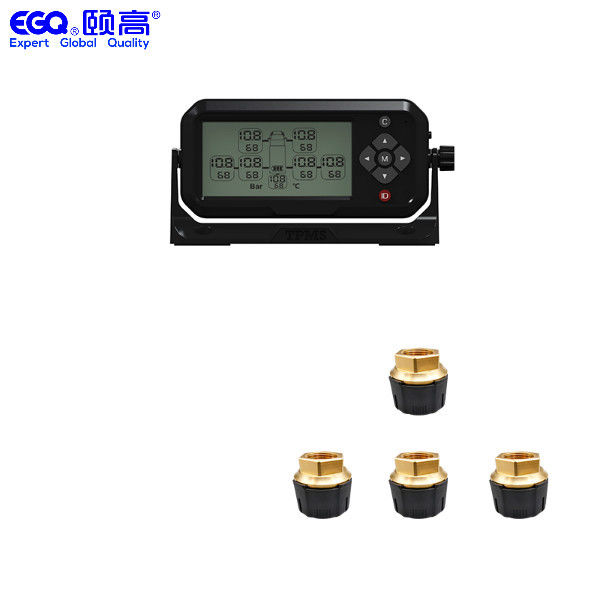

200 Psi 2 Wheels OTR Sensors RV Tire Pressure Monitoring System
433.92MHZ OTR sensors two tire Truck TPMS For Engineering vehicle include repeter
component of product
Low power warning
No signal warning
Parameter Setting
1. What are the advantages of TPMS ?
Reduce Driving Risks
Improve Fuel Economy
Prolong lifetime of the tires
2. Monitor Features & Specifications:
Monitor Features:
Reliable and easy to install.
Large LCD screen.
Built-in rechargeable lithium battery.
Vibration awakening.
Automatical backlight.
Configurable high/low pressure warnings.
Configurable high temperature warnings.
Visible and audible alerts.
Selectable pressure units ( BAR, PSI ).
Temperature unit selectable (℃, ℉)
Monitors up to 22 tires maximum.
Long range between monitor and sensors.
Individual configuration of axle high/low pressure warnings.
Awake sensor to program ID code.
Product parameters
| Commercial vehicle repeater |
|
| Machine port |
Vehicle battery ACC input(24Volt) |
| Machine weight (excluding packaging) |
120±3g |
| working temperature |
-40℃-85℃ |
| Normal current |
4.5mA |
| Reception sensitivity |
-95dbm |
| Transmit frequency |
433.92MHz |
| Transmit current |
<50mA |
| Transmit power |
<10dbm |
| Waterproof grade |
IP67 |
| Dimensions |
11.7cm(length)*7.9cm(width)*2.2cm(height) |
| OTR sensors |
|
| Dimensions |
Φ2.4cm(diameter)*2cm( height ) |
| Plastic parts material |
Nylon + glass fiber |
| Metal part material |
copper |
| Shell temperature resistance |
-50℃-150℃ |
| Thread Size |
12V1 internal thread(customizable) |
| Machine weight (excluding packaging) |
23g±1g |
| Power supply mode |
Button Battery |
| Battery model |
CR1632 |
| Battery capacity |
135mAh |
| Working voltage |
2.1V-3.6V |
| Transmit current |
8.7mA |
| Self-test current |
2.2mA |
| Sleep current |
0.5uA |
| Sensor working temperature |
-30℃-80℃ |
| Transmit frequency |
433.92MHZ |
| Transmit power |
-10dbm |
