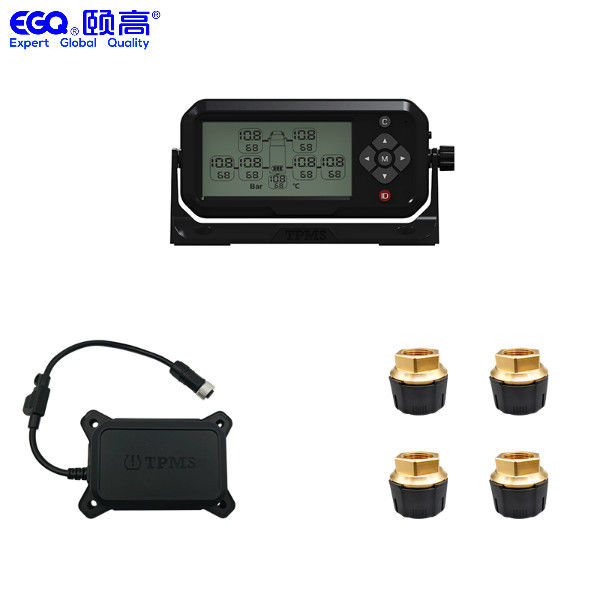

Intelligent Two Tire Wireless RV Tire Pressure Monitoring System
Product parameters
| Receiver(7 Wheels) |
|
| Display interface |
LCD segment code (26 tires with the same display) |
| Receiver port |
Vehicle battery, ACC input and RS232 output |
| Machine weight (excluding packaging) |
230g±5g |
| Abnormal self-recovery |
Toggle Switches(The switch is facing up, restart after disconnecting the external power supply.) |
| Working temperature |
-30℃-80℃ |
| Power supply mode |
Internal rechargeable lithium battery and external power supply |
| Interface voltage |
Vehicle battery 24V, ACC24V |
| Internal battery voltage |
3.5V-4.2V |
| Bright working current |
12mA |
| Black working current (for data communication) |
4.5mA |
| Reception sensitivity |
-95dbm |
| Dimensions |
13.5cm(length)*6.5cm(width)*2.2cm(height) |
| Warranty |
Warranty within 1 years after delivery |
| Type |
Value |
| Sensor(Ordinary internal type sensor) |
|
| Plastic parts material |
Nylon + glass fiber |
| Shell temperature resistance |
-50℃-150℃ |
| Antenna sheet material |
Phosphorus copper nickel plating |
| Machine weight (excluding valve) |
16g±1g |
| Power supply mode |
Button Battery |
| battery model |
CR2050 |
| battery capacity |
345mAh |
| Working voltage |
2.1V-3.6V |
| working temperature |
8.7mA |
| Self-test current |
2.2mA |
| Dormant current |
0.5uA |
| Working temperature |
-40℃-125℃ |
| Transmit frequency |
433.92MHZ |
| Transmit power |
>-12dBm |
| Dimensions |
5.3cm(length)*3.5cm(width)*1.4cm(height)(excluding valve) |
| Warranty |
Within 1 years after delivery |
| Pressure range |
0~203Psi |
System function
Maintain the normal braking effect and reduce the occurrence of safety accidents;
Reduce abnormal wear of relevant parts such as vehicle shock absorber and suspension system;
Maintain the normal tire pressure and improve the comfort of vehicle ride;
Reduce the pollution of vehicle exhaust emissions to the environment, and create a green and environmental friendly social environment;
Bullet Points:
1, Suitable for: Designed for large vehicles, trucks, buses and other vehicles with more than 4 tyres. It can support up to 36 tyres at the same time. The product has 6 sensors.
2, Convenient and safe: It is more convenient and safe to drive without blocking the vision; HD display, tire pressure and tire temperature are monitored at the same time.
3, Easy to operate: On-board start, automatic switch, saving electricity, easy to operate.
4, Multi-function: Abnormal tire pressure alarm, abnormal tire temperature alarm, leakage alarm, sensor failure alarm.
5, Note: If you need more sensor monitoring, please go elsewhere to purchase sensors, general built-in and external sensors. Contains: Display, Sensor * 6, Gas Nozzle * 6, Gas Nozzle Screw * 6, 2m Power Supply Line, Instructions.
