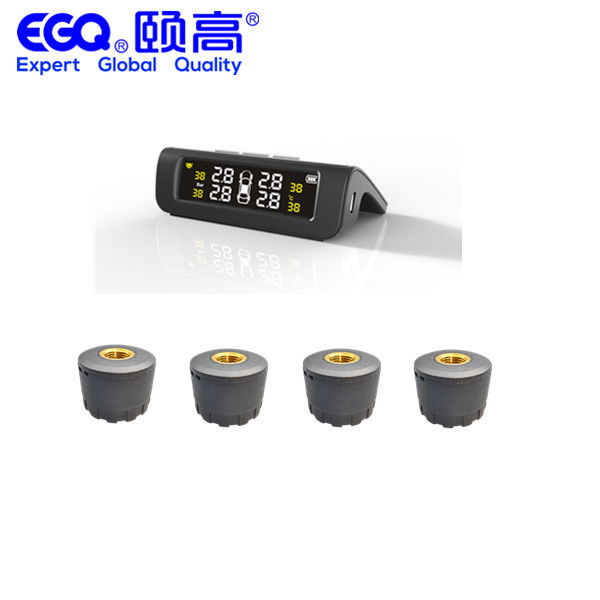

Rechargeable External Auto Solar Tire Pressure Monitoring System

Rechargeable External Auto Solar Tire Pressure Monitoring System

  • Rechargeable External Auto Solar Tire Pressure Monitoring System
Rechargeable External Auto Solar Tire Pressure Monitoring System
Product Details:
Place of Origin: China
Brand Name: EGQ
Certification: CE,FCC,ROHS,IATF16949:2016
Model Number: S9w
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: boxs
Delivery Time: 7-15 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000 sets per month
Contact Now
Detailed Product Description
Max Pressure: 120 Psi Product Name: Solar Tire Pressure Monitoring System (TPMS)
Working Voltage: 2.1V-3.6V Emission Current: 8.7mA
Self-test Current: 2.5mA Sleep Current: 0.5uA
Highlight:

Auto Solar TPMS

,

Rechargeable Solar Tire Pressure Monitoring System

,

120 Psi Auto TPMS

Rechargeable External Auto Solar Tire Pressure Monitoring System



2.84 inch Universal External sensor solar Tire pressure monitoring system for passenger cars 433.92mhz



external sensor parameters



Dimensions 7.1cm*5.3cm
Sensor plastic material nylon/glass fiber
Shell temperature resistance -50℃-150℃
Potting material silicone 9210
Silicone volume resistivity ≥1.0×1013Ω•cm
Silicone temperature resistance -50℃-200℃
Silicone hardness A10-A55
Antenna Material Phosphor Copper Nickel Plated
Valve metal material aluminum (outside spray insulation paint)
Valve weight 12.9g
Total weight of sensor (including valve) 29.5g±3g
Sensor working temperature -20℃-85℃
Battery model CR2032
Battery capacity 220mAh
Working voltage 2.1V-3.6V
Emission current 8.7mA
Self-test current 2.5mA
Sleep current 0.5uA
Transmission frequency 433.92MHZ
Transmit power -12dbm



component of product



High temperature warning



Low power warning



No signal warning



Specifications



1. Display can ba charged by solat or mini USB charging slot.



2. DIY installation, no need connect cable/cigarette lighter.



3. High-definition colorful LCD display shows pressure&temperature of all tire in circular scrolling motion.



4. Alert immediately when temperature or pressure of tire under abnormal condition. Large capacity battery display.



5. Innovative technology, super long standby time, super long working life, visual and sudible warning, aleeping mode available.



6. Pressure range: 0~8 bar



FAQ





Why Your car Need TPMS

Tire Pressure Monitoring System, also called TPMS, uses pressure monitoring sensors within each tire to monitor specific pressure levels. Combined with the solar energy display, it lets driver get the real-time tire pressure data, temperature data and status, warning messages at once. Solar power display features the green, low carbon and renewable advantages, enabling you to charge the device faster and greener.
