Shenzhen EGQ Cloud Technology Co., Ltd.
 |
| Place of Origin: | China |
| Brand Name: | EGQ |
| Certification: | CE,FCC,ROHS,IATF16949:2016 |
| Model Number: | S2N |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | boxs |
| Delivery Time: | 7-15 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10000 sets per month |
| Max Pressure: | 120 Psi | Product Name: | Solar Tire Pressure Monitoring System (TPMS) |
|---|---|---|---|
| MICRO USB Beyond The Edge Of The Board: | 1mm | Working Temperature: | -20-70℃ |
| Power Interface: | Micro Usb | Battery Working Voltage: | 3.0V-4.2V |
| High Light: | wireless tpms,Internal Sensor Solar tpms,120 Psi Internal Sensor tpms |
||

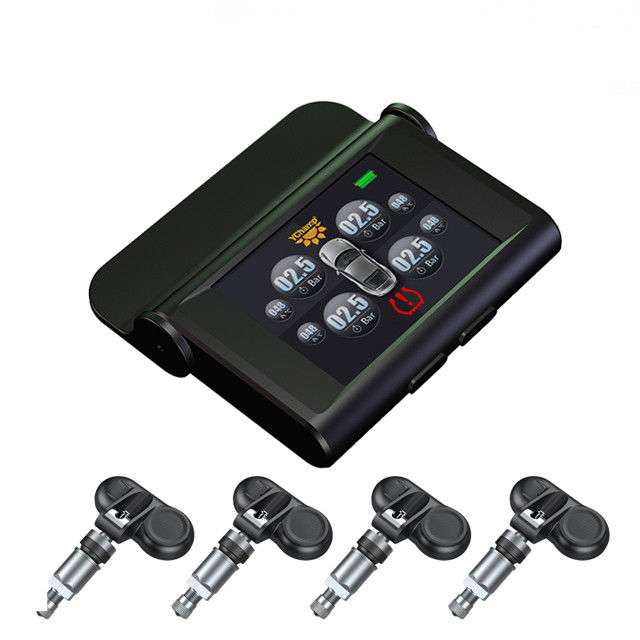

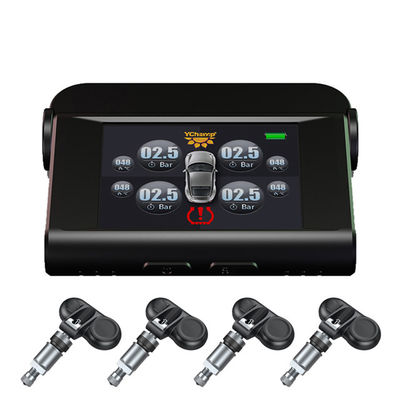

Wireless Internal Sensor Solar Tire Pressure Monitoring System
2.52 inch Universal internal sensor solar Tire pressure monitoring system for passenger cars 433.92mhz
internal sensor parameters
|
Dimensions |
7.1cm*5.3cm |
|
Sensor plastic material |
nylon/glass fiber |
|
Shell temperature resistance |
-50℃-150℃ |
|
Potting material |
silicone 9210 |
|
Silicone volume resistivity |
≥1.0×1013Ω•cm |
|
Silicone temperature resistance |
-50℃-200℃ |
Receive host parameters
| Circuit board size | 4.3cm (width) * 6.7cm (height) |
| PCB thickness | 1.0mm |
| PCB copper thickness | 1OZ |
| Whole board weight (without shell) | 18g±1g |
| MICRO USB beyond the edge of the board | 1mm |
| Working temperature | -20-70℃ |
| Power interface | micro usb |
| Battery working voltage | 3.0V-4.2V |
| Charging voltage | 4.5-5.5V |
| Bright screen standby current | 40mA |
| Black screen standby current | 4.5mA |
| Receiving sensitivity | -90dbm |
| Sleep current | 100uA |
Specifications
The advantages of solar products, good solar panels generate large amounts of electricity, and the power consumption of the products is relatively small compared to other products. In the case of cloudy solar energy, the product can be used continuously for 16 days when the battery is fully charged. The product can be used for 2 days if exposed to the sun for one hour under sufficient conditions
Optional two pressure units "PSI, BAR" and two temperature units "℃, ℉"
The receiver can also vibrate the switch. Sleep for 2 minutes to save energy and worry. When the car starts, the receiver in sleep will automatically wake up when it feels the vibration. It does not need to manually shut down and sleep automatically when it is stationary, saving energy and worry.
FAQ
Q : What's your payment term?
A: T/T, Paypal, West Union,Alipay and etc. all creditable customers from all over the word are welcome.
Q: If you make poor quality goods, will you refund our fund?
A: As a matter of fact, we do full inspection, it is nearly impossible for us to do poor quality products.
Meanwhile, we manufacture qualified products until your satisfaction.
Anyway, if you find any problem is really caused by ourside, we can refund.
Q: Do you have stock?
A: Most of products are under regular production,we can make delivery immediately if we had the specific one in stock.
