USB Digital 433.92mhz Solar Tire Pressure Monitoring System

USB Digital 433.92mhz Solar Tire Pressure Monitoring System

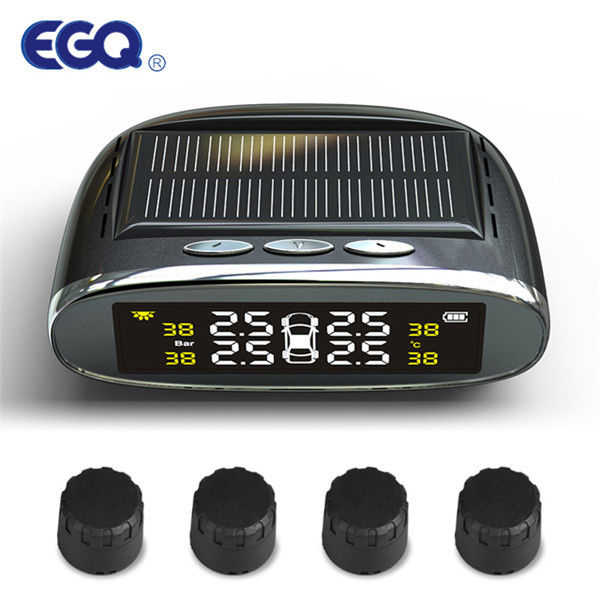

2.7 inch Universal external solar Tire pressure monitoring system for passenger cars 433.92mhz

Specifications

The solar screen VA touch screen is more beautiful and has a wider viewing angle. Because the screen needs to add an additional driver

The shell is made of new materials to prevent secondary pollution from threatening human safety, and ABS+PC prevents deformation.

IP67 highly waterproof (soak it for 30 minutes after being immersed in a meter of water for normal use)

Pre-explosion-proof tires, the tires will continue to have low pressure or thermal expansion and contraction after a long time of driving. This is the main cause of tire explosion. Using a tire pressure monitoring system can further reduce tire wear and reduce fuel consumption.

Receive host parameters

Sensor size: 2.1cm (width)*1.7cm (height)

Sensor plastic part material: nylon/glass fiber

Shell temperature resistance: -50℃-150℃

Features

Air leakage alarm

When the pressure drop of any tire exceeds 0.3Bar in one launch cycle, the buzzer sounds quickly, at the same time, the corresponding tire icon and pressure data, TPMS icon and air leakage icon flash continuously, press any key to stop the buzzer alarm; stop Fully released

Low voltage alarm

When any tire pressure is detected to be lower than 75% of the standard tire pressure, the buzzer sounds an alarm, corresponding to the tire icon and pressure data and TPMS icon

High voltage alarm

When it is detected that any tire pressure is higher than 125% of the standard tire pressure value of the cold tire when the vehicle is fully loaded, the buzzer sounds, and the corresponding tire icon and pressure data, TPMS icon and high pressure icon flash continuously, when the tire pressure is below After the alarm threshold is 0.1Bar, the alarm is released; the factory setting of the high-pressure alarm threshold is 3.2Bar, which is suitable for all cars.
