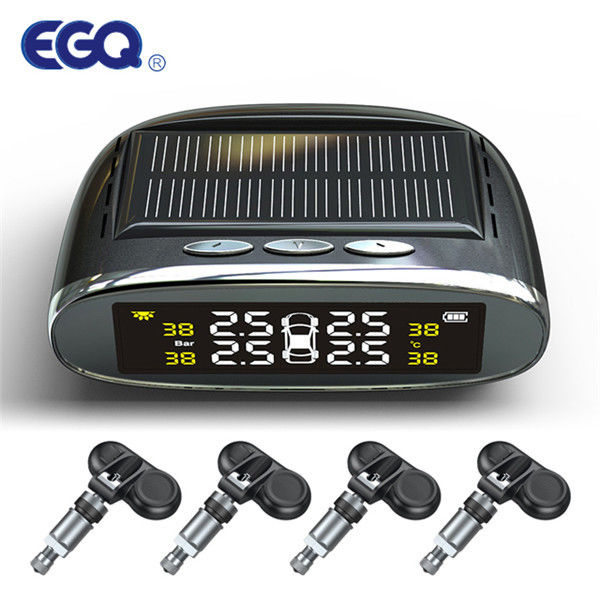

2.70 Inch Digital Internal Tpms Solar Power Tire Pressure Monitor

2.70 Inch Digital Internal Tpms Solar Power Tire Pressure Monitor

  • 2.70 Inch Digital Internal Tpms Solar Power Tire Pressure Monitor
  • 2.70 Inch Digital Internal Tpms Solar Power Tire Pressure Monitor
  • 2.70 Inch Digital Internal Tpms Solar Power Tire Pressure Monitor
  • 2.70 Inch Digital Internal Tpms Solar Power Tire Pressure Monitor
  • 2.70 Inch Digital Internal Tpms Solar Power Tire Pressure Monitor
  • 2.70 Inch Digital Internal Tpms Solar Power Tire Pressure Monitor
2.70 Inch Digital Internal Tpms Solar Power Tire Pressure Monitor
Product Details:
Place of Origin: China
Brand Name: EGQ
Certification: CE,FCC,ROHS,IATF16949:2016
Model Number: S3N
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: boxs
Delivery Time: 7-15 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000 sets per month
Contact Now
Detailed Product Description
Type: Digital Max Pressure: 120 Psi
Product Name: Solar Tire Pressure Monitoring System (TPMS) Highlight Mode Current: 12mA
Sleep Current: 0.1mA Receive Sensitivity (open Loop Test): -90dbm
Highlight:

Internal Solar Power Tire Pressure Monitor

,

Internal solar tpms

,

120 Psi Solar Power Tire Pressure Monitor

2.70 Inch Digital Internal Tpms Solar Power Tire Pressure Monitor



2.7 inch Universal external solar Tire pressure monitoring system for passenger cars 433.92mhz





Receive host parameters



PCB thickness 1.0mm
PCB copper thickness 1OZ
Whole board weight 75g
Working temperature -30-80℃
Power interface micro usb
Working voltage 3.3V-4.2V
Bright screen standby current 5.8mA
Highlight mode current 12mA
Sleep current 0.1mA
Receive sensitivity (open loop test) -90dbm





Features Of TPMS



Low voltage alarm


When any tire pressure is detected to be lower than 75% of the standard tire pressure, the buzzer sounds an alarm, corresponding to the tire icon and pressure data and TPMS icon



High voltage alarm



When it is detected that any tire pressure is higher than 125% of the standard tire pressure value of the cold tire when the vehicle is fully loaded, the buzzer sounds, and the corresponding tire icon and pressure data, TPMS icon and high pressure icon flash continuously, when the tire pressure is below After the alarm threshold is 0.1Bar, the alarm is released; the factory setting of the high-pressure alarm threshold is 3.2Bar, which is suitable for all cars.



parameter



Sensor size 2.1cm (width)*1.7cm (height)
Sensor plastic part material nylon/glass fiber
Shell temperature resistance -50℃-150℃
Valve thread specifications 8V1 external thread
Valve thread material phosphor copper
Battery replacement tool size 4.2cm (width) * 0.6cm (height)



FAQ



Q: What’s the Lead time for samples ?

A: If we are not in busy season, your ordered samples will be sent to you within 10days.



Q: What’s the Lead time for delivery ?

A: In general, we are able to manufacture the items quantity up to a few thousand items with 45-60 days since the order is

confirmed.



Q: Can I put my own Label and Logo on the products ?

A: Yes, and you also have two options as below:

1). Sending your original label design to us, and we will make them for you and put them on the items.

2). Sending your finished labels to us, and will put them on the items.
