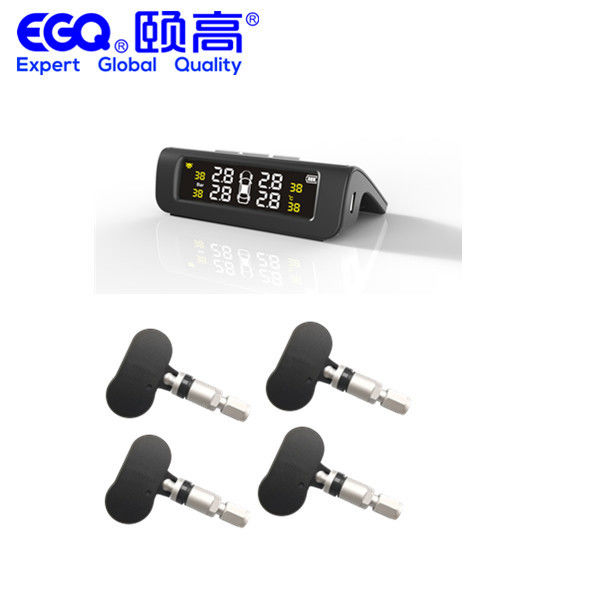

433.92mhz TPMS Solar Energy Tire Pressure Monitoring System

433.92mhz TPMS Solar Energy Tire Pressure Monitoring System

  • 433.92mhz TPMS Solar Energy Tire Pressure Monitoring System
433.92mhz TPMS Solar Energy Tire Pressure Monitoring System
Product Details:
Place of Origin: China
Brand Name: EGQ
Certification: CE,FCC,ROHS,IATF16949:2016
Model Number: S9N
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: boxs
Delivery Time: 7-15 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000 sets per month
Contact Now
Detailed Product Description
Max Pressure: 120 Psi Product Name: Solar Tire Pressure Monitoring System (TPMS)
Total Weight Of Sensor (including Valve): 29.5g±3g Sensor Working Temperature: -20℃-85℃
Battery Model: CR2032 Battery Capacity: 220mAh
Highlight:

Solar Energy TPMS

,

433.92mhz TPMS

,

220mAh TPMS

433.92mhz TPMS Solar Energy Tire Pressure Monitoring System

2.84 inch Universal internal sensor solar Tire pressure monitoring system for passenger cars 433.92mhz

Specifications

1. Display can ba charged by solat or mini USB charging slot.

2. DIY installation, no need connect cable/cigarette lighter.

3. High-definition colorful LCD display shows pressure&temperature of all tire in circular scrolling motion.

4. Alert immediately when temperature or pressure of tire under abnormal condition. Large capacity battery display.

5. Innovative technology, super long standby time, super long working life, visual and sudible warning, aleeping mode available.

6. Pressure range: 0~8bar

internal sensor parameters


Dimensions7.1cm*5.3cm
Sensor plastic materialnylon/glass fiber
Shell temperature resistance-50℃-150℃
Potting materialsilicone 9210
Silicone volume resistivity≥1.0×1013Ω•cm
Silicone temperature resistance-50℃-200℃
Silicone hardnessA10-A55
Antenna MaterialPhosphor Copper Nickel Plated
Valve metal material aluminum(outside spray insulation paint)
Valve weight12.9g
Total weight of sensor (including valve)29.5g±3g
Sensor working temperature-20℃-85℃
Battery modelCR2032
Battery capacity220mAh
Working voltage2.1V-3.6V
Emission current8.7mA
Self-test current2.5mA
Sleep current0.5uA
Transmission frequency433.92MHZ
Transmit power-12dbm


component of product

Alarm function

leakage warning

High pressure warning
