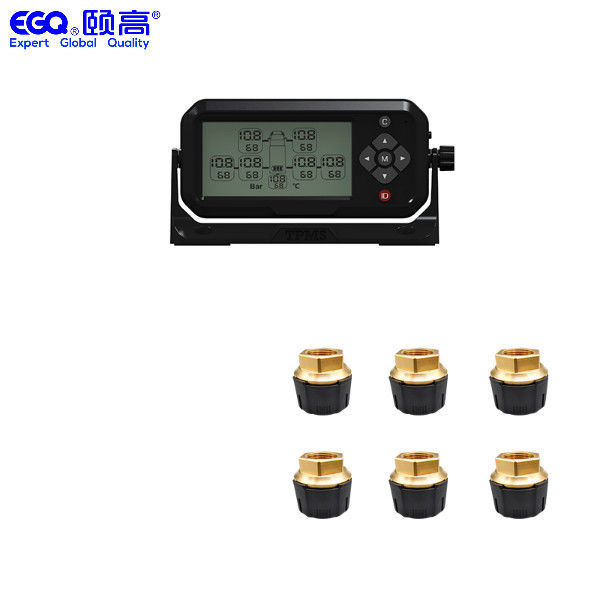

Real Time 433.92 MHZ 6 Wheel Tyre Pressure Monitoring System
433.92MHZ OTR sensors six tires Truck TPMS For Engineering vehicle non iclude repeater
System function
Reduce fuel consumption of vehicles, reduce the cost of use of vehicles;
Maintain the normal braking effect and reduce the occurrence of safety accidents;
Product parameters
| Commercial vehicle repeater |
|
| Machine port |
Vehicle battery ACC input(24Volt) |
| Machine weight (excluding packaging) |
120g±3g |
| working temperature |
-40℃-85℃ |
| Normal current |
4.5mA |
| Reception sensitivity |
-95dbm |
| Transmit frequency |
433.92MHz |
| Transmit current |
<50mA |
| Transmit power |
<10dbm |
| Waterproof grade |
IP67 |
| Dimensions |
11.7cm(length)*7.9cm(width)*2.2cm |
| Max pressure |
203psi |
Features
* Internal TPMS,2 tires to 26 tires
* Sensor built-in installation
* It requires professional installation tire removal tool
* Provide a power line to truck VCC
* Monitor can support up to 26 tire pressure, temperature and battery voltage cycle
* High-definition 5.0-inch colorful LCD display
* you must use more repeaters when you use trailer
* Convertible pressure unit, Bar/Psi
* Adjustable viewing angle of display by steady
| OTR sensors |
|
| Dimensions |
Φ2.4cm(diameter)*2cm( height ) |
| Plastic parts material |
Nylon + glass fiber |
| Metal part material |
copper |
| Shell temperature resistance |
-50℃-150℃ |
| Thread Size |
12V1 internal thread(customizable) |
| Machine weight (excluding packaging) |
23g±1g |
| Power supply mode |
Button Battery |
| Battery model |
CR1632 |
| Battery capacity |
135mAh |
| Working voltage |
2.1V-3.6V |
| Transmit current |
8.7mA |
| Self-test current |
2.2mA |
| Sleep current |
0.5uA |
| Sensor working temperature |
-30℃-80℃ |
| Transmit frequency |
433.92MHZ |
| Transmit power |
-10dbm |
Why Your Truck Need TPMS
Tire Pressure Monitoring System, also called TPMS, uses pressure monitoring sensors within each tire to monitor specific pressure levels. Combined with the solar energy display, it lets driver get the real-time tire pressure data, temperature data and status, warning messages at once. Solar power display features the green, low carbon and renewable advantages, enabling you to charge the device faster and greener.
FAQ
Q1: What is your product and technique?
A: We produce TPMS products and measure tire pressure, temperature, acceleration through TPMS products show you.
Q2: What is your product apply fields?
A: Our productsare applied to Automotive electronics industry.
Q3: How does purchase your existing product or customized my product?
A-1: Existing product: Please go to choose your favorite product and memorize product code, determine product request (e.g.: color, lids / top, etc.) and order quantity, together with your consignee address, phone, name and port of discharge etc.
A-2: Customized your product: Please mailing your existing sample to us. If you have own design drawing (Include material name, component weight, size, and configuration etc.details),
A-3: Once receive your any information or sample, we will send best price and order process to you within 24 hour and continuously follow-up services for you, answer your any problem, until your receive the goods.
Q4: Are the product dependable?
A: Yes, we are dealing with Automotive electronics industry since 2013. We are attention to each client request and feedback; we have established long term cooperation with them. All productsare top-quality and quality guaranteed.
