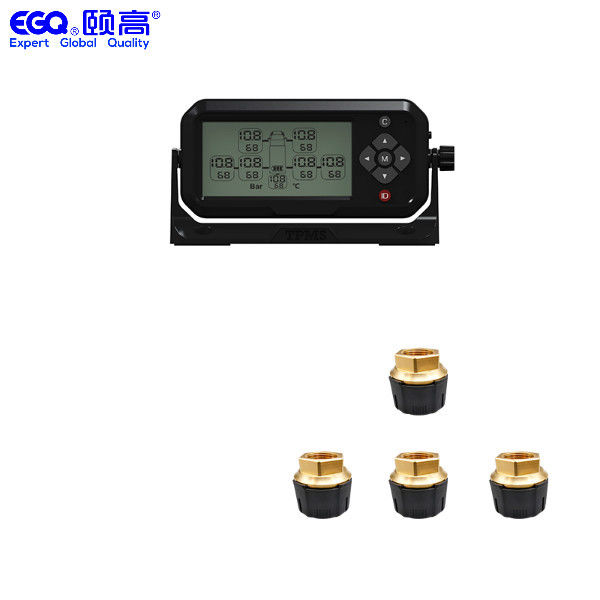

USB Charging Real Time RV Tire Pressure Monitoring System

USB Charging Real Time RV Tire Pressure Monitoring System

  • USB Charging Real Time RV Tire Pressure Monitoring System
USB Charging Real Time RV Tire Pressure Monitoring System
Product Details:
Place of Origin: China
Brand Name: EGQ
Certification: CE,FCC,ROHS,IATF16949:2016
Model Number: T4OZ0
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: boxs
Delivery Time: 7-15 work days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 10000 sets per month
Contact Now
Detailed Product Description
Display Interface: LCD Segment Code (7 Rounds With The Same Display) Max Pressure: 203psi
Transmit Frequency: 433.92MHZ Dimensions: 11.7cm*7.9cm*2.2cm
Type: OTR Sensors Machine Weight (excluding Packaging): 230±5gram
Highlight:

Real Time RV TPMS

,

USB RV TPMS

,

203psi RV TPMS

USB Charging Real Time RV Tire Pressure Monitoring System



433.92MHZ OTR sensorsfour tires Truck TPMS For Engineering vehicle non include repeater



Main features:

- Powerful TPMS:

1. Tyre pressure monitoring system (TPMS) can monitor the tyre pressure/temperature status in real time,

which will transmit real-time voice alarm and flash warning iron to remind the driver for the comfortableness of vehicle and driving safety.

2. Displays tire pressure and temperature simultaneously.

3. Air leakage warning, low pressure warning, high pressure warning.

4. High temperature warning,low power warning, no signal warning.



- Wide application:

This system is widely suitable for vehicle with 22 tyres and the maximum pressure of the tyre is below 14 bar,

such as the commercial car, jeep, off-road vehicle, minibus, and sedan car, etc.



- Digital display:

LCD screen, with the bright backlight and clear data, allows you to know the status of your car easily and comfortably.



- Power supply:

It supports USB charging, which means our TPMS device can be used in all weathers, rather convenient.



- 26 external sensors:

We provide 26 sensors, which are suitable for using on rainy days. Besides, they are in high sensitivity and good accuracy for measuring pressure and temperature.



Product parameters



Commercial vehicle repeater
Machine port Vehicle battery ACC input(24Volt)
Machine weight (excluding packaging) 120±3g
working temperature -40℃-85℃
Normal current 4.5milliampere
Reception sensitivity -95dbm
Transmit frequency 433.92MHz
Transmit current <50milliampere
Transmit power <10dbm
Waterproof grade IP67
Dimensions 11.7cm(length)*7.9cm(width)*2.2cm(height)





OTR sensors
Dimensions Φ2.4cm(diameter)*2cm( height )
Plastic parts material Nylon + glass fiber
Metal part material copper
Shell temperature resistance -50℃-150℃
Thread Size 12V1 internal thread(customizable)
Machine weight (excluding packaging) 23g±1g
Power supply mode Button Battery
Battery model CR1632
Battery capacity 135mAh
Working voltage 2.1V-3.6V
Transmit current 8.7mA
Self-test current 2.2mA
Sleep current 0.5uA
Sensor working temperature -30℃-80℃
Transmit frequency 433.92MHZ
Transmit power -10dbm





FAQ



Q1. What does EGQ do?

A: We provide many kinds of car&truck accessories for resellers or fleet managers,like TPMS,MDVR,Dashcam and Driver Fatigue Monitor,and so on.



Q2. What's your warranty policy?

A: Most of our products has 12 months warranty, however some special parts can exceed to 24 months.If products have a fault in warranty, you can send it back to us and we will fix or exhange a new one for you.



Q3. Does your company provide an OEM service?

A: Yes,we do.But we need to know your OEM details and evaluate it before quotation.



Q4. What is your shipment method?

A: As the products have a built-in battery,so we usually recommend ship by HK DHL for small orders, and ship by sea for bulk order.
