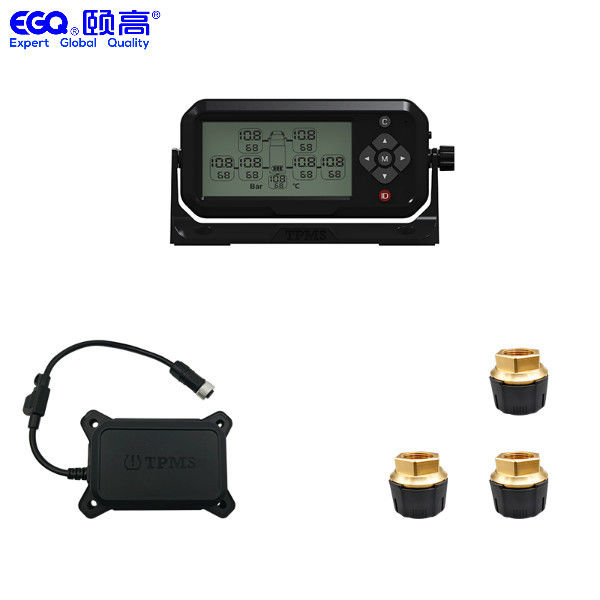

433.92MHZ OTR sensors three tire Truck TPMS For Engineering vehicle include repeater

433.92MHZ OTR sensors three tire Truck TPMS For Engineering vehicle include repeater

  • 433.92MHZ OTR sensors three tire Truck TPMS For  Engineering vehicle include repeater
433.92MHZ OTR sensors three tire Truck TPMS For  Engineering vehicle include repeater
Product Details:
Place of Origin: China
Brand Name: EGQ
Certification: CE,FCC,ROHS,IATF16949:2016
Model Number: T3OZ1
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: boxs
Delivery Time: 7-15 work days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 10000 sets per month
Contact Now
Detailed Product Description
Display Interface: LCD Segment Code (7 Rounds With The Same Display) Max Pressure: 203psi
Transmit Frequency: 433.92MHZ Transmit Power: <10dbm
Dimensions: 11.7cm(length)*7.9cm(width)*2.2cm(height) Machine Weight (excluding Packaging): 230gram±5gram
Highlight:

433.92 MHZ RV TPMS

,

OTR RV tpms

433.92MHZ OTR sensors three tire Truck TPMS For Engineering vehicle non include repeater



Features

* Internal TPMS,2 tires to 26 tires

* Sensor built-in installation

* It requires professional installation tire removal tool

* Provide a power line to truck VCC

* Monitor can support up to 26 tire pressure, temperature and battery voltage cycle

* High-definition 5.0-inch colorful LCD display

* you must use more repeaters when you use trailer

* Convertible pressure unit, Bar/Psi

* Adjustable viewing angle of display by steady

* High/low pressure alarm

* Slow/fast leakage alarm

* High temperature alarm

* Low battery alarm

* Sensor failure alarm

* Real-time tire data monitoring

* Visual/Audible alarm

* Wireless transmission

* With RS232 port, you can connected to GPS module



Product parameters



Commercial vehicle repeater
Machine port Vehicle battery ACC input(24Volt)
Machine weight (excluding packaging) 120±3g
working temperature -40℃-85℃
Normal current 4.5milliampere
Reception sensitivity -95dbm
Transmit frequency 433.92MHz
Transmit current <50milliampere
Transmit power <10dbm
Waterproof grade IP67
Dimensions 11.7cm(length)*7.9cm(width)*2.2cm(height)



component of product



Match sensor(Match tires)



Other functions



Exchange tires’ position





OTR sensors
Dimensions Φ2.4cm(diameter)*2cm( height )
Plastic parts material Nylon + glass fiber
Metal part material copper
Shell temperature resistance -50℃-150℃
Thread Size 12V1 internal thread(customizable)
Machine weight (excluding packaging) 23g±1g
Power supply mode Button Battery
Battery model CR1632
Battery capacity 135mAh
Working voltage 2.1V-3.6V
Transmit current 8.7mA
Self-test current 2.2mA
Sleep current 0.5uA
Sensor working temperature -30℃-80℃
Transmit frequency 433.92MHZ
Transmit power -10dbm





FAQ



What's your warranty policy?

A:Most of our products has 12 months warranty, however some special parts can exceed to 24 months.If products have a fault in warranty, you can send it back to us and we will fix or exhange a new one for you.



Does your company provide an OEM service?

A:Yes,we do.But we need to know your OEM details and evaluate it before quotation.



Are you manufacturer?

A: Yes, meanwhile we are the agent for some products which keep the engine safety,welcome to visit our factory at any time



.

Can I have samples for testing?

A: Yes, samples are available before bulk order,





How long can i get the products

A: For sample order 1-3working days after payment:

For bulk order 3-7working days after receiving the payment.
