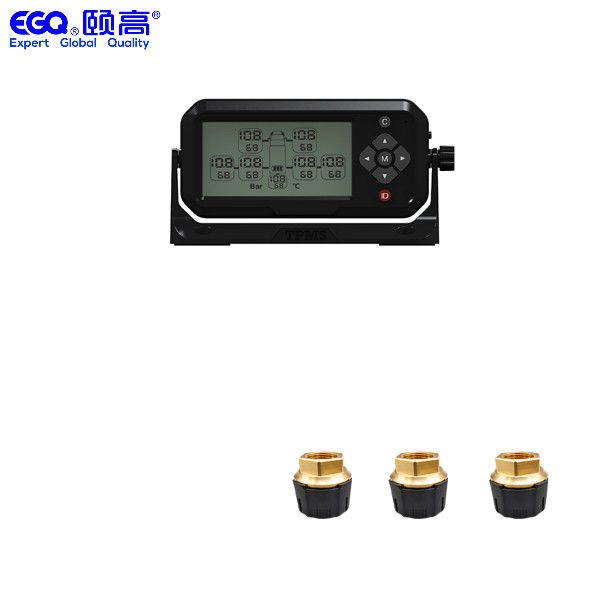

Real Time OTR Sensors Rv TPMS Tire Pressure Monitoring System

Real Time OTR Sensors Rv TPMS Tire Pressure Monitoring System

  • Real Time OTR Sensors Rv TPMS Tire Pressure Monitoring System
Real Time OTR Sensors Rv TPMS Tire Pressure Monitoring System
Product Details:
Place of Origin: China
Brand Name: EGQ
Certification: CE,FCC,ROHS,IATF16949:2016
Model Number: T3OZ0
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: boxs
Delivery Time: 7-15 work days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 10000 sets per month
Contact Now
Detailed Product Description
Display Interface: LCD Segment Code (7 Rounds With The Same Display) Max Pressure: 203psi
Transmit Frequency: 433.92MHZ Normal Current: 4.5milliampere
Reception Sensitivity: -95dbm Transmit Current: <50milliampere
Highlight:

TPMS Tire Pressure Monitoring System

,

RV TPMS

,

433.92MHZ Real Time TPMS

Real Time OTR Sensors Rv TPMS Tire Pressure Monitoring System



433.92MHZ OTR sensors three tire Truck TPMS For Engineering vehicle non include repeter



component of product



Pressure threshold setting



High temperature threshold setting



Restore factory setting



Product parameters



Commercial vehicle repeater
Machine port Vehicle battery ACC input(24Volt)
Machine weight (excluding packaging) 120±3g
working temperature -40℃-85℃
Normal current 4.5milliampere
Reception sensitivity -95dbm
Transmit frequency 433.92MHz
Transmit current <50milliampere
Transmit power <10dbm
Waterproof grade IP67
Dimensions 11.7cm(length)*7.9cm(width)*2.2cm(height)



Specification



Real-time monitor the tires and alarm

Canbus System support

2-26 tires

Internal sensor and External sensor available

Truck/bus/trailer supported

6s to display the temperatue and tire pressure for each tire on the display

Sensor ID Learn and Pair Available

Sensor position Exchange Available

Alarm threshold adjustment Available

Temperature and Pressure unit change Available





OTR sensors
Dimensions Φ2.4cm(diameter)*2cm( height )
Plastic parts material Nylon + glass fiber
Metal part material copper
Shell temperature resistance -50℃-150℃
Thread Size 12V1 internal thread(customizable)
Machine weight (excluding packaging) 23g±1g
Power supply mode Button Battery
Battery model CR1632
Battery capacity 135mAh
Working voltage 2.1V-3.6V
Transmit current 8.7mA
Self-test current 2.2mA
Sleep current 0.5uA
Sensor working temperature -30℃-80℃
Transmit frequency 433.92MHZ
Transmit power -10dbm





FAQ



What does EGQ do?

A:We provide many kinds of car&truck accessories for resellers or fleet managers,like TPMS,MDVR,Dashcam and Driver Fatigue Monitor,and so on.



What's your warranty policy?

A:Most of our products has 12 months warranty, however some special parts can exceed to 24 months.If products have a fault in warranty, you can send it back to us and we will fix or exhange a new one for you.



Delivery term?

Sample will be sent within 3-7 working days after received payment;Need about 20-25 working days for bulk order.



Warranty Policy?

We provide warranty for 12 months and we also provide another option which is you can choose 1% spare parts when you placing the order instead of 1 year warranty.
