200 Psi 2 Wheels OTR Sensors RV Tire Pressure Monitoring System

200 Psi 2 Wheels OTR Sensors RV Tire Pressure Monitoring System

  • 200 Psi 2 Wheels OTR Sensors RV Tire Pressure Monitoring System
200 Psi 2 Wheels OTR Sensors RV Tire Pressure Monitoring System
Product Details:
Place of Origin: China
Brand Name: EGQ
Certification: CE,FCC,ROHS,IATF16949:2016
Model Number: T2OZ1
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: boxs
Delivery Time: 7-15 work days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 10000 sets per month
Contact Now
Detailed Product Description
Display Interface: LCD Segment Code (7 Rounds With The Same Display) Max Pressure: > 200Psi
Transmit Frequency: 433.92MHZ Machine Port: Vehicle Battery ACC Input(24Volt)
Machine Weight (excluding Packaging): 120±3g Working Temperature: -40℃-85℃
Highlight:

200 Psi RV Tire Pressure Monitoring System

,

OTR RV tpms

,

200Psi OTR tpms

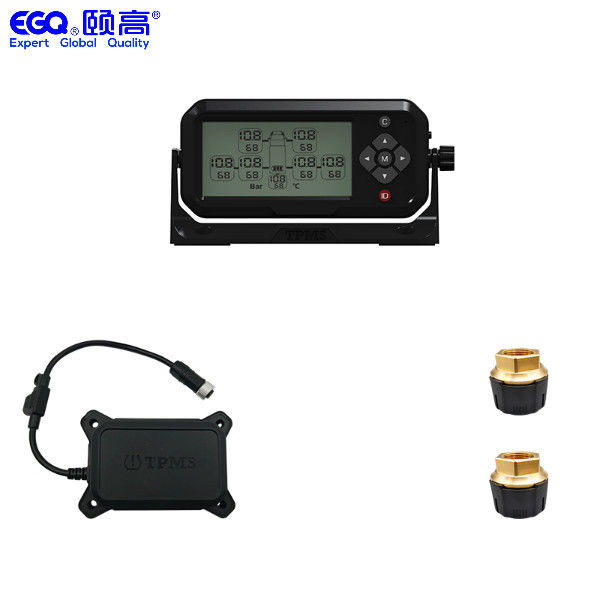

200 Psi 2 Wheels OTR Sensors RV Tire Pressure Monitoring System



433.92MHZ OTR sensors two tire Truck TPMS For Engineering vehicle include repeter





component of product



Low power warning



No signal warning



Parameter Setting



1. What are the advantages of TPMS ?



Reduce Driving Risks



Improve Fuel Economy



Prolong lifetime of the tires



2. Monitor Features & Specifications:



Monitor Features:



Reliable and easy to install.

Large LCD screen.

Built-in rechargeable lithium battery.

Vibration awakening.

Automatical backlight.

Configurable high/low pressure warnings.

Configurable high temperature warnings.

Visible and audible alerts.

Selectable pressure units ( BAR, PSI ).

Temperature unit selectable (℃, ℉)

Monitors up to 22 tires maximum.

Long range between monitor and sensors.

Individual configuration of axle high/low pressure warnings.

Awake sensor to program ID code.



Product parameters



Commercial vehicle repeater
Machine port Vehicle battery ACC input(24Volt)
Machine weight (excluding packaging) 120±3g
working temperature -40℃-85℃
Normal current 4.5mA
Reception sensitivity -95dbm
Transmit frequency 433.92MHz
Transmit current <50mA
Transmit power <10dbm
Waterproof grade IP67
Dimensions 11.7cm(length)*7.9cm(width)*2.2cm(height)



OTR sensors
Dimensions Φ2.4cm(diameter)*2cm( height )
Plastic parts material Nylon + glass fiber
Metal part material copper
Shell temperature resistance -50℃-150℃
Thread Size 12V1 internal thread(customizable)
Machine weight (excluding packaging) 23g±1g
Power supply mode Button Battery
Battery model CR1632
Battery capacity 135mAh
Working voltage 2.1V-3.6V
Transmit current 8.7mA
Self-test current 2.2mA
Sleep current 0.5uA
Sensor working temperature -30℃-80℃
Transmit frequency 433.92MHZ
Transmit power -10dbm





FAQ



Q1. Are you manufactory or trade company ?



A: We are the manufactory specialized in TPMS(Tire pressure Monitoring system)for many years already, in ShenZhen, Guangdong province, China. You are welcome to visit our factory at any time.



Q2. Why your price cheaper than others? And what’s minimum quantity of an order of your cargos?



A: We are the manufacturer with many years of experience,and we sell our products with EX factory price to customer directly .



Q3. How long is the lead time for sending sample ? Does the sample fee can be returned ?



A: Usually it will takes 2~5 days working days for sample preparing & sending.



If the order reach or exceed behind MOQ quantity, sample fee will be refunded.



Q4. Does your company provide an OEM service?



A: Yes,we do.But we need to know your OEM details and evaluate it before quotation.
