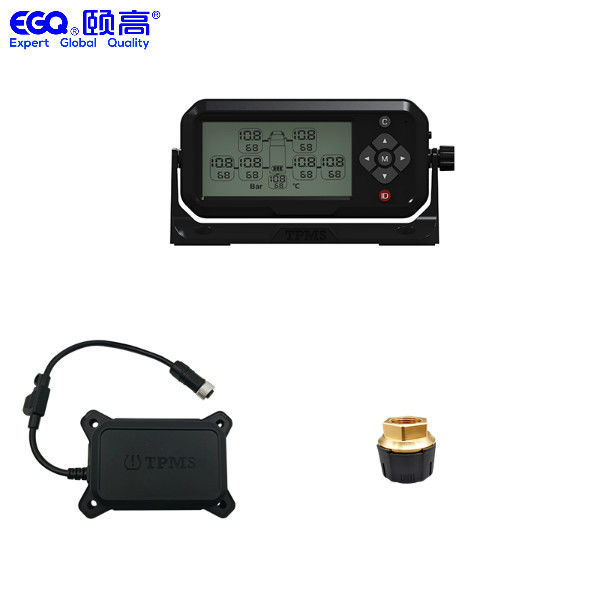

Low Pressure Warning RV Tyre Pressure Monitoring System
433.92MHZ OTR sensors one tire Truck TPMS For Engineering vehicle iclude repeter
1. What are the advantages of TPMS ?
Reduce Driving Risks
Improve Fuel Economy
Prolong lifetime of the tires
2. Monitor Features & Specifications:
Monitor Features:
Reliable and easy to install.
Large LCD screen.
Built-in rechargeable lithium battery.
Vibration awakening.
Automatical backlight.
Configurable high/low pressure warnings.
Configurable high temperature warnings.
Visible and audible alerts.
Selectable pressure units ( BAR, PSI ).
Temperature unit selectable (℃, ℉)
Monitors up to 22 tires maximum.
Long range between monitor and sensors.
Individual configuration of axle high/low pressure warnings.
Awake sensor to program ID code.
Product parameters
| Commercial vehicle repeater |
|
| Machine port |
Vehicle battery ACC input(24V) |
| Machine weight (excluding packaging) |
120g±3g |
| working temperature |
-40-85℃ |
| Normal current |
4.5mA |
| Reception sensitivity |
-95dbm |
| Transmit frequency |
433.92MHz |
| Transmit current |
<50mA |
| Transmit power |
<10dbm |
| Waterproof grade |
IP67 |
| Dimensions |
11.7cm(length)*7.9cm(width)*2.2cm(height) |
component of product
High pressure warning
Low pressure warning
High temperature warning
Product parameters
| OTR sensors |
|
| Dimensions |
Φ2.4cm(diameter)*2cm( height ) |
| Plastic parts material |
Nylon + glass fiber |
| Metal part material |
copper |
| Shell temperature resistance |
-50℃-150℃ |
| Thread Size |
12V1 internal thread(customizable) |
| Machine weight (excluding packaging) |
23g±1g |
| Power supply mode |
Button Battery |
| Battery model |
CR1632 |
| Battery capacity |
135mAh |
| Working voltage |
2.1V-3.6V |
| Transmit current |
8.7mA |
| Self-test current |
2.2mA |
| Sleep current |
0.5uA |
| Sensor working temperature |
-30℃-80℃ |
| Transmit frequency |
433.92MHZ |
| Transmit power |
-10dbm |
