CE FCC ROHS One Tire Wireless Tyre Pressure Monitoring System

CE FCC ROHS One Tire Wireless Tyre Pressure Monitoring System

  • CE FCC ROHS One Tire Wireless Tyre Pressure Monitoring System
CE FCC ROHS One Tire Wireless Tyre Pressure Monitoring System
Product Details:
Place of Origin: China
Brand Name: EGQ
Certification: CE,FCC,ROHS,IATF16949:2016
Model Number: T1OZ0
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: boxs
Delivery Time: 7-15 work days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 10000 sets per month
Contact Now
Detailed Product Description
Display Interface: LCD Segment Code (7 Rounds With The Same Display) Type: Digital
Warranty: Within 1 Years After Delivery Max Pressure: > 200Psi
Waterproof Grade: IP67 Transmit Frequency: 433.92MHZ
Highlight:

wireless tyre pressure monitoring system

,

Wireless TPMS

,

200Psi TPMS

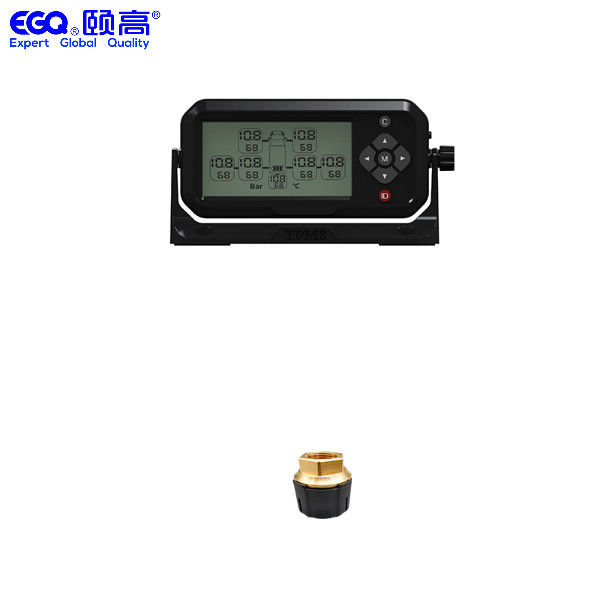

CE FCC ROHS One Tire Wireless Tyre Pressure Monitoring System





OTR sensors one tire Truck TPMS For RV non iclude repeter





component of product



Sensor and receiver corresponding wheel position number



Alarm function



leakage warning





Product parameters



Commercial vehicle repeater
Machine port Vehicle battery ACC input(24V)
Machine weight (excluding packaging) 120g±3g
working temperature -40-85℃
Normal current 4.5mA
Reception sensitivity -95dbm
Transmit frequency 433.92MHz
Transmit current <50mA
Transmit power <10dbm
Waterproof grade IP67
Dimensions 11.7cm(length)*7.9cm(width)*2.2cm(height)



1. What are the advantages of TPMS ?



Reduce Driving Risks



Improve Fuel Economy



Prolong lifetime of the tires



2. Sensor Features & Specifications:



Sensor Features:



Reliable cap sensors, easy to install.



Water resistant.



Replaceable sensor batteries.



Sensors transmit pressure and temperature data every 5 minutes.



Fast leakage alert.



Individually coded sensors.



Anti-theft desigh.







OTR sensors
Dimensions Φ2.4cm(diameter)*2cm( height )
Plastic parts material Nylon + glass fiber
Metal part material copper
Shell temperature resistance -50℃-150℃
Thread Size 12V1 internal thread(customizable)
Machine weight (excluding packaging) 23g±1g
Power supply mode Button Battery
Battery model CR1632
Battery capacity 135mAh
Working voltage 2.1V-3.6V
Transmit current 8.7mA
Self-test current 2.2mA
Sleep current 0.5uA
Sensor working temperature -30℃-80℃
Transmit frequency 433.92MHZ
Transmit power -10dbm





FAQ



What does EGQ do?



A:We provide many kinds of car&truck accessories for resellers or fleet managers,like TPMS,MDVR,Dashcam and Driver Fatigue Monitor,and so on.



About the sample, what’s the cost of transportation? How long can I expect to get the sample ?



A: The freight depends on weight, packing size and your country or province region,etc.



The samples will be sent via international express such as DHL, UPS,TNT,FEDEX and would be arrived within 3~5 days.



Can we have our logo or company name to be printed on your products or package?



A: Sure. If the quantity reach MOQ, your logo could be printed on your products by hot stamping,printing, embossing, UV coating,silk-screen printing or sticker.



Do you have stock?



A: Most of products are under regular production,we can make delivery immediately if we had the specific one in stock.
