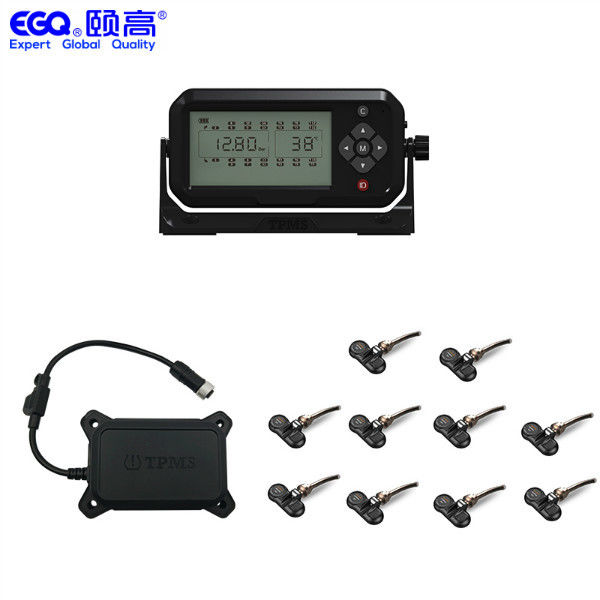

10 wheels 203 Psi Waterproof RV Tire Pressure Monitoring System
Main Features:
1. Support trucks , trailers . 2,6,8,10,12,14,16,18,20,22,24,26 wheels support .
2. LCD display with backlight
3. High temperature , low temperature ,high pressure, low pressure alarm .
4. Max pressure is 14bar , 203psi .
5. Support '' PSI'' '' BAR'' .
6. RF wireless technology,can auto-alarm,when tire pressure and temperature is abnormal.
7. Sensor waterproof grade: IP67.
Product parameters
| Receiver(7 Wheels) |
|
| Display interface |
LCD segment code (26 tires with the same display) |
| Receiver port |
Vehicle battery, ACC input and RS232 output |
| Machine weight (excluding packaging) |
230g±5g |
| Abnormal self-recovery |
Toggle Switches(The switch is facing up, restart after disconnecting the external power supply.) |
| Working temperature |
-30℃-80℃ |
| Power supply mode |
Internal rechargeable lithium battery and external power supply |
| Interface voltage |
Vehicle battery 24V, ACC24V |
| Internal battery voltage |
3.5V-4.2V |
| Bright working current |
12mA |
| Black working current (for data communication) |
4.5mA |
| Reception sensitivity |
-95dbm |
| Dimensions |
13.5cm(length)*6.5cm(width)*2.2cm(height) |
| Warranty |
within 1 years |
| Sensor(Ordinary internal type sensor) |
|
| Plastic parts material |
Nylon + glass fiber |
| Shell temperature resistance |
-50℃~150℃ |
| Antenna sheet material |
Phosphorus copper nickel plating |
| Machine weight (excluding valve) |
16g±1g |
| Power supply mode |
Button Battery |
| battery model |
CR2050 |
| battery capacity |
345mAh |
| Working voltage |
2.1V-3.6V |
| working temperature |
8.7mA |
| Self-test current |
2.2mA |
| Dormant current |
0.5uA |
| Working temperature |
-40℃-125℃ |
| Transmit frequency |
433.92MHZ |
| Transmit power |
>-12dBm |
| Dimensions |
5.3cm(length)*3.5cm(width)*1.4cm(height)(excluding valve) |
| Warranty |
Sensors Warranty Within 12 months after delivery day |
| Pressure range |
0~14bar |
| Type |
Valve truck tpms |
Product attention:
1 Operation is not suggested during driving.
2 Sensor monitors pressure and temperature of tire and signal to receiver, receiver reports pressure and temperature by number and voice. If there is any abnormal pressure or temperature, flashing warning icon and voice prompt will notice driver immediately. Drivers need to check and repair the tire immediately,in order to avoid risk of accident due to tire problem.
3 Tires have natural micro leakage phenomenon. It is a normal phenomenon that pressure of tire decreases over time. Pressure decreasing don't have directly relationship with install this products.
4 It is a normal phenomenon that pressure is unstable due to thermal expansion during driving. It don't have directly relationship with install this products.
5 Incorrectly installation will affect the use of this product or make damage. experienced technician ispreferred to install this product. please be careful not to damage the sensor transmitter when disassembling tires again. Valve of internal sensor is not available for repeat assembling/disassembling.
6 Please use power cable provided by factory. It is not allowed to tie receiver by power cable, as I will damage product or effect signal . And you will lose warranty.
Esteemed customer:
Thank you for buying our Tire pressure Monitoring System (TPMS). This system makes you more safety when driving.It can real-time monitor tire pressure and temperature conditions. If detected any abnormal pressure and temperature of tires, the system will transmit real-time voice alarm and flash warning icon to remind the driver. Real-time monitoring and warning can not only avoid risk of traffic accident but also make passenger safety.
In addition, this system can effectively help improve the vehicle comfortableness and driving safety, reduce vehicle wear, save fuel consumption and avoid risk of flat tire.
Please read the instruction carefully before using this product. If there is any misunderstanding,please consult distributor or phone customer service, thanks!
