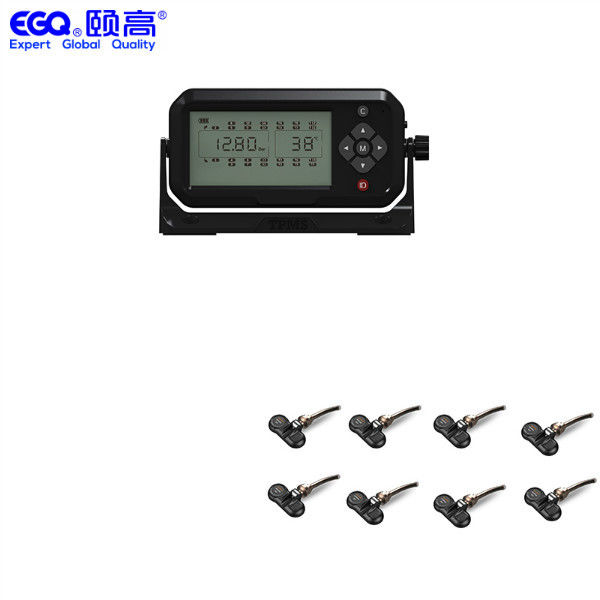

Valve Type Eight wheel RV Tire Pressure Monitor Truck TPMS
Product parameters
| Receiver(26 Wheels) |
|
| Display interface |
LCD segment code (26 tires with the same display) |
| Receiver port |
Vehicle battery, ACC input and RS232 output |
| Machine weight (excluding packaging) |
230g±5g |
| Abnormal self-recovery |
Toggle Switches(The switch is facing up, restart after disconnecting the external power supply.) |
| Working temperature |
-30℃-80℃ |
| Power supply mode |
Internal rechargeable lithium battery and external power supply |
| Interface voltage |
Vehicle battery 24V, ACC24V |
| Internal battery voltage |
3.5V-4.2V |
| Bright working current |
12mA |
| Black working current (for data communication) |
4.5mA |
| Reception sensitivity |
-95dbm |
| Dimensions |
13.5cm(length)*6.5cm(width)*2.2cm(height) |
| Warranty |
within 1 years |
| Sensor(Ordinary internal type sensor) |
|
| Plastic parts material |
Nylon + glass fiber |
| Shell temperature resistance |
-50℃~150℃ |
| Antenna sheet material |
Phosphorus copper nickel plating |
| Machine weight (excluding valve) |
16g±1g |
| Power supply mode |
Button Battery |
| battery model |
CR2050 |
| battery capacity |
345mAh |
| Working voltage |
2.1V-3.6V |
| working temperature |
8.7mA |
| Self-test current |
2.2mA |
| Dormant current |
0.5uA |
| Working temperature |
-40℃-125℃ |
| Transmit frequency |
433.92MHZ |
| Transmit power |
>-12dBm |
| Dimensions |
5.3cm(length)*3.5cm(width)*1.4cm(height)(excluding valve) |
| Warranty |
Sensors Warranty Within 12 months after delivery day |
| Pressure range |
0~14bar |
| Type |
Ordinary Valve truck tpms |
Product attention:
1 Operation is not suggested during driving.
2 Sensor monitors pressure and temperature of tire and signal to receiver, receiver reports pressure and temperature by number and voice. If there is any abnormal pressure or temperature, flashing warning icon and voice prompt will notice driver immediately. Drivers need to check and repair the tire immediately, in order to avoid risk of accident due to tire problem.
3 Tires have natural micro leakage phenomenon. It is a normal phenomenon that pressure of tire decreases over time. Pressure decreasing don't have directly relationship with install this products.
4 It is a normal phenomenon that pressure is unstable due to thermal expansion during driving. It don't have directly relationship with install this products.
Descriptions:
Many accidents are caused by the flat tyre on the highway. As a car owner, the safety of driving is the first thing.
To reduce such accidents, the installation of tire pressure monitoring system (TPMS) is necessary.
With the TPMS, we can keep the tyre working within the specified pressure and temperature range at any time to reduce the damage of the tyre for safe driving.
Esteemed customer:
Thank you for buying our Tire pressure Monitoring System (TPMS). This system makes you more safety when driving.It can real-time monitor tire pressure and temperature conditions.If detected any abnormal pressure and temperature of tires, the system will transmit real-time voice alarm and flash warning icon to remind the driver.Real-time monitoring and warning can not only avoid risk of traffic accident but also make passenger safety.
In addition, this system can effectively help improve the vehicle comfortableness and driving safety, reduce vehicle wear, save fuel consumption and avoid risk of flat tire.
Please read the instruction carefully before using this product. If there is any misunderstanding,please consult distributor or phone customer service, thanks!
FAQ
1. Q: Are you a factory or trading company?
A: We are a 7 years experience manufacturer, and we will give you a factory price.
2. Q: Where is your factory located? How can I visit there?
A: Our factory is located in Shenzhen City, Guangdong Province, China. Welcome to visit us!
3. Q: I received the products is different with the pictures,how can i do?
A: Color different exists due to lighting and the use of different monitors. We will sent the samples to you for confirmation before mass production. If you are not satisfied with it, please contact me or our salesperson for solution.
4. Q: I received the item in broken, what should I do?
A: Every item before shipping is well inspected. Though they are well packed, sometimes damage can`t be avoided because of the rough handing during shipping. In this case, please contact me and send the pictures to me, let me know the quantity which is broken, we will resend them to you with next order.
5. Q: What is your MOQ?
A: Any quantity is acceptable for your order. And the price is negotiable for large quantity.
