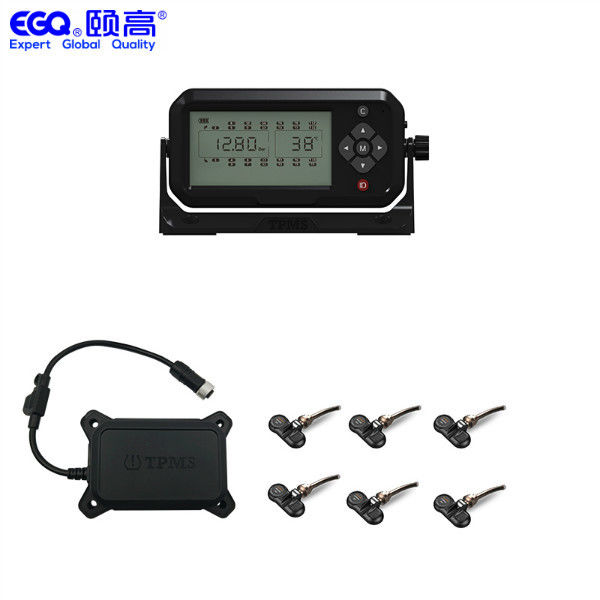

6 External Sensors LCD Rv Air Pressure Monitoring System
Techincal Information
This unit is Easy to install and program and comes with a 12 month manufacturers warranty
Pressure range 0-232PSI
Pressure and temperature displayed for each tyre
Accurate to under 3%
Monitor displays pressure loss warnings visually and with an audible alarm
Tyre pressure levels can be individually set for each tyre
Dual pressure settings available for each tyre (on road/off road etc.)
Temperature alarms if tire temperature rises above 65C
Daily pressure reset
Trailer disconnect function
Sensors have replaceable batteries which are readily available
Minimum one year battery life
Product parameters
| Receiver(7 Wheels) |
|
| Display interface |
LCD segment code (26 tires with the same display) |
| Receiver port |
Vehicle battery, ACC input and RS232 output |
| Machine weight (excluding packaging) |
230g±5g |
| Abnormal self-recovery |
Toggle Switches(The switch is facing up, restart after disconnecting the external power supply.) |
| Working temperature |
-30℃-80℃ |
| Power supply mode |
Internal rechargeable lithium battery and external power supply |
| Interface voltage |
Vehicle battery 24V, ACC24V |
| Internal battery voltage |
3.5V-4.2V |
| Bright working current |
12mA |
| Black working current (for data communication) |
4.5mA |
| Reception sensitivity |
-95dbm |
| Dimensions |
13.5cm(length)*6.5cm(width)*2.2cm(height) |
| Warranty |
within 1 years |
| Sensor(Ordinary internal type sensor) |
|
| Plastic parts material |
Nylon + glass fiber |
| Shell temperature resistance |
-50℃-150℃ |
| Antenna sheet material |
Phosphorus copper nickel plating |
| Machine weight (excluding valve) |
16g±1g |
| Power supply mode |
Button Battery |
| battery model |
CR2050 |
| battery capacity |
345mAh |
| Working voltage |
2.1V-3.6V |
| working temperature |
8.7mA |
| Self-test current |
2.2mA |
| Dormant current |
0.5uA |
| Working temperature |
-40℃-125℃ |
| Transmit frequency |
433.92MHZ |
| Transmit power |
>-12dBm |
| Dimensions |
5.3cm(length)*3.5cm(width)*1.4cm(height)(excluding valve) |
| Warranty |
Sensors Warranty Within 12 months after delivery |
| Pressure range |
0~14bar |
| Type |
Valve sensors tpms |
Product attention:
1 Operation is not suggested during driving.
2 Sensor monitors pressure and temperature of tire and signal to receiver, receiver reports pressure
and temperature by number and voice. If there is any abnormal pressure or temperature, flashing warning
icon and voice prompt will notice driver immediately. Drivers need to check and repair the tire immediately,
in order to avoid risk of accident due to tire problem.
Esteemed customer:
Thank you for buying our Tire pressure Monitoring System (TPMS). This system makes you more safety when driving.It can real-time monitor tire pressure and temperature conditions.If detected any abnormal pressure and temperature of tires, the system will transmit real-time voice alarm and flash warning icon to remind the driver.Real-time monitoring and warning can not only avoid risk of traffic accident but also make passenger safety.
In addition, this system can effectively help improve the vehicle comfortableness and driving safety, reduce vehicle wear, save fuel consumption and avoid risk of flat tire.
Please read the instruction carefully before using this product. If there is any misunderstanding,please consult distributor or phone customer service, thanks!
