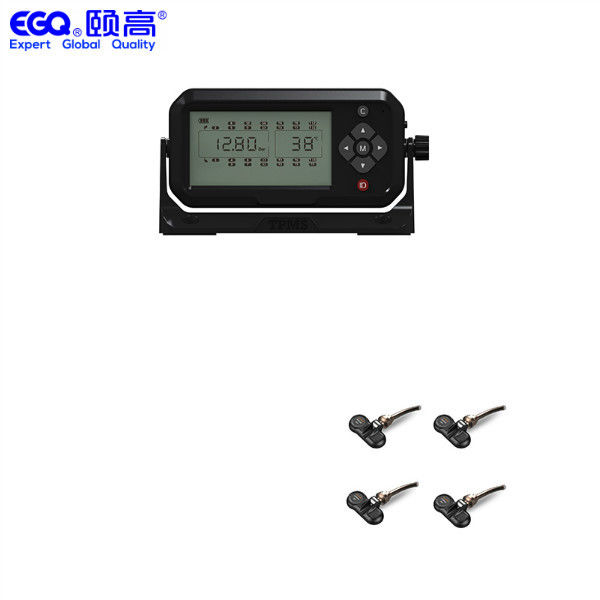

Internal 4 Tire Truck TPMS RV Tire Pressure Monitoring System
Features
* Internal TPMS,2 tires to 26 tires
* Sensor built-in installation
* It requires professional installation tire removal tool
* Provide a power line to truck VCC
* Monitor can support up to 26 tire pressure, temperature and battery voltage cycle
* High-definition 5.0-inch colorful LCD display
* you must use more repeaters when you use trailer
* Convertible pressure unit, Bar/Psi
* Adjustable viewing angle of display by steady
* High/low pressure alarm
Product parameters
| Receiver(7 Wheels) |
|
| Display interface |
LCD segment code (26 tires with the same display) |
| Receiver port |
Vehicle battery, ACC input and RS232 output |
| Machine weight (excluding packaging) |
230g±5g |
| Abnormal self-recovery |
Toggle Switches(The switch is facing up, restart after disconnecting the external power supply.) |
| Working temperature |
-30℃-80℃ |
| Power supply mode |
Internal rechargeable lithium battery and external power supply |
| Interface voltage |
Vehicle battery 24V, ACC24V |
| Internal battery voltage |
3.5V-4.2V |
| Bright working current |
12mA |
| Black working current (for data communication) |
4.5mA |
| Reception sensitivity |
-95dbm |
| Dimensions |
13.5cm(length)*6.5cm(width)*2.2cm(height) |
| Warranty |
Receiver Warranty within 1 years after delivery |
| Type |
Valve |
| Sensor(Ordinary internal type sensor) |
|
| Plastic parts material |
Nylon + glass fiber |
| Shell temperature resistance |
-50℃-150℃ |
| Antenna sheet material |
Phosphorus copper nickel plating |
| Machine weight (excluding valve) |
16g±1g |
| Power supply mode |
Button Battery |
| battery model |
CR2050 |
| battery capacity |
345mAh |
| Working voltage |
2.1V-3.6V |
| working temperature |
8.7mA |
| Self-test current |
2.2mA |
| Dormant current |
0.5uA |
| Working temperature |
-40℃-125℃ |
| Transmit frequency |
433.92MHZ |
| Transmit power |
>-12dBm |
| Dimensions |
5.3cm(length)*3.5cm(width)*1.4cm(height)(excluding valve) |
| Warranty |
Within 12 months after delivery |
| Pressure range |
0~203Psi |
System function
Reduce abnormal wear of relevant parts such as vehicle shock absorber and suspension system;
Maintain the normal tire pressure and improve the comfort of vehicle ride;
Reduce the pollution of vehicle exhaust emissions to the environment, and create a green and environmental friendly social environment;
Esteemed customer:
Thank you for buying our Tire pressure Monitoring System (TPMS). This system makes you more safety when driving.It can real-time monitor tire pressure and temperature conditions.If detected any abnormal pressure and temperature of tires, the system will transmit real-time voice alarm and flash warning icon to remind the driver.Real-time monitoring and warning can not only avoid risk of traffic accident but also make passenger safety.
In addition, this system can effectively help improve the vehicle comfortableness and driving safety, reduce vehicle wear, save fuel consumption and avoid risk of flat tire.
Please read the instruction carefully before using this product. If there is any misunderstanding,please consult distributor or phone customer service, thanks!
