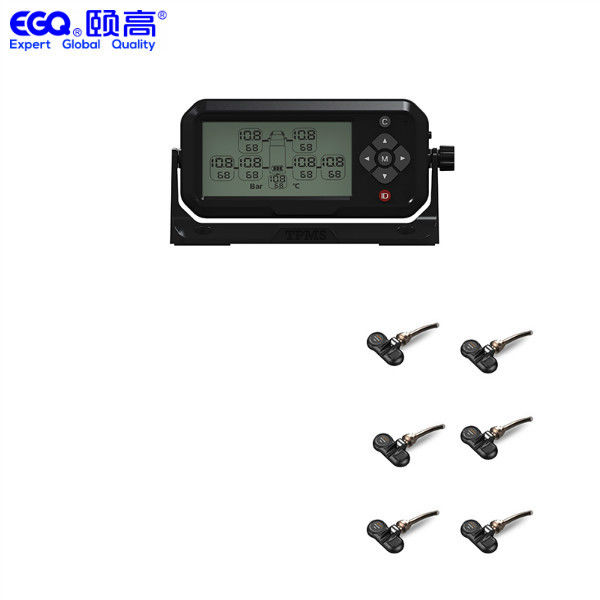

433.92 MHZ RF Wireless RV Tire Pressure Monitoring System
Specification
Real-time monitor the tires and alarm
Canbus System support
2-26 tires
Internal sensor and External sensor available
Truck/bus/trailer supported
6s to display the temperatue and tire pressure for each tire on the display
Sensor ID Learn and Pair Available
Sensor position Exchange Available
Alarm threshold adjustment Available
Temperature and Pressure unit change Available
Product parameters
| Receiver(7 Wheels) |
|
| Display interface |
LCD segment code (7 rounds with the same display) |
| Receiver port |
Vehicle battery, ACC input and RS232 output |
| Machine weight (excluding packaging) |
230g±5g |
| Abnormal self-recovery |
Toggle Switches(The switch is facing up, restart after disconnecting the external power supply.) |
| Working temperature |
-30℃-80℃ |
| Power supply mode |
Built-in rechargeable lithium battery and external power supply |
| Interface voltage |
Vehicle battery 24Volt, ACC24Volt |
| Internal battery voltage |
3.5-4.2Volt |
| Bright working current |
12mA |
| Black working current (for data communication) |
4.5mA |
| Reception sensitivity |
-95dbm |
| Dimensions |
13.5cm(length)*6.5cm(width)*2.2cm(height) |
| Warranty |
Within 12 months after delivery |
| Type |
Digital |
| Sensor(Ordinary internal type sensor) |
|
| Plastic parts material |
Nylon + glass fiber |
| Shell temperature resistance |
-50℃-150℃ |
| Antenna sheet material |
Phosphorus copper nickel plating |
| Machine weight (excluding valve) |
16g±1g |
| Power supply mode |
Button Battery |
| battery model |
CR2050 |
| battery capacity |
345mAh |
| Working voltage |
2.1V-3.6V |
| working temperature |
8.7mA |
| Self-test current |
2.2mA |
| Dormant current |
0.5uA |
| Working temperature |
-40℃-125℃ |
| Transmit frequency |
433.92MHZ |
| Transmit power |
>-12dBm |
| Dimensions |
5.3cm(length)*3.5cm(width)*1.4cm(height)(excluding valve) |
| Warranty |
12 Months |
System function
Reduce the pollution of vehicle exhaust emissions to the environment, and create a green and environmental friendly social environment;
Prevent tire blowout and reduce the risk of accidents;
Reduce vehicle tire damage and extend the service life of tires;
Reduce fuel consumption of vehicles, reduce the cost of use of vehicles;
Maintain the normal braking effect and reduce the occurrence of safety accidents;
Reduce abnormal wear of relevant parts such as vehicle shock absorber and suspension system;
Maintain the normal tire pressure and improve the comfort of vehicle ride;
Esteemed customer:
Thank you for buying our Tire pressure Monitoring System (TPMS). This system makes you more safety when driving.It can real-time monitor tire pressure and temperature conditions.If detected any abnormal pressure and temperature of tires, the system will transmit real-time voice alarm and flash warning icon to remind the driver.Real-time monitoring and warning can not only avoid risk of traffic accident but also make passenger safety.
In addition, this system can effectively help improve the vehicle comfortableness and drivingsafety, reduce vehicle wear, save fuel consumption and avoid risk of flat tire.
Please read the instruction carefully before using this product. If there is any misunderstanding,please consult distributor or phone customer service, thanks!
FAQ
Q: Are you a factory or trading company?
A: We are a factory.
Q: What is the guarantee of your TPMS?
A: For the TPMS,we have 1 years warranty.also will send guarantee certificate together with system to you.
Q: How to pack the goods?
A: We will pack the goods with paper carton,can pack with woven bag as well.
Q: Will u support any after-service?
A: Of course,it is our responsible to provide one-to-one excellent technology service of sensor.
Q: How to get the samples?
A: It is our honor to provide the samples to you,you just need to pay the freight and sample fee.
