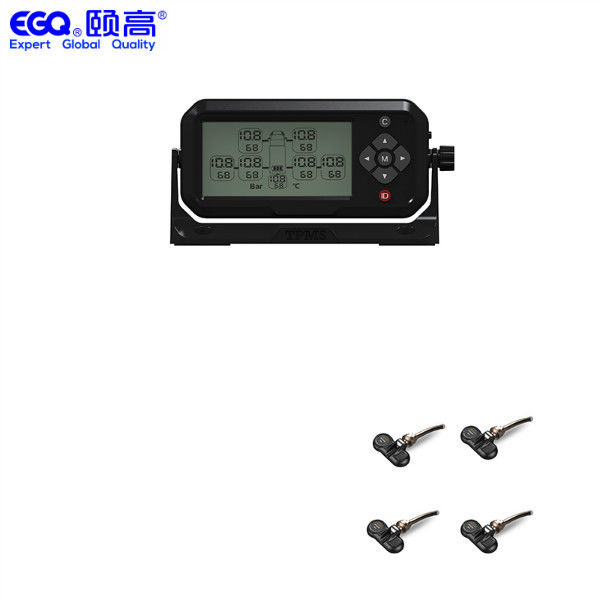

USB Rechargeable Digital RV Tire Pressure Monitoring System
Tyre Pressure Monitoring System for CAR, Truck Trailers , Semi Trailers , Caravans , RVs, 4WD, Motor holmes , any vehicles that has pneumatic tyres.
This unit monitors tyre pressure and temperature in your tyre, once you set the limit is exceeded an audible alarm is triggered for you to check your tyre. It will signal you with an alarm in up to 8 different conditions including fast and slow leakage, pressure loss and high pressure or high temperature situations.
Monitor has rechargeable lithium battery and may be operated continuously for 4-5 days without plugging into the USB port if desired (much longer if switched off when not driving)
Please Note: optional TPMS repeater Is also available in our alibaba Store . The TPMS repeater is used to strengthen the signal should this be required due to distance ,or interference . repeater are generally recommended for long vehicles like motor homes and semi trailers however we recommend you try our Tyre Pressure Monitoring System without a booster to start with and only add a repeater if you find it necessary.
Product parameters
| Receiver(7 Wheels) |
|
| Display interface |
LCD segment code (7 wheels with the same display) |
| Receiver port |
Vehicle battery, ACC input and RS232 output |
| Machine weight (excluding packaging) |
230±5g |
| Abnormal self-recovery |
Toggle Switches(The switch is facing up, restart after disconnecting the external power supply.) |
| Working temperature |
-30-80℃ |
| Power supply mode |
internal rechargeable lithium battery and external power supply |
| Interface voltage |
Vehicle battery 24Volt, ACC24Volt |
| Built-in battery voltage |
3.5V-4.2V |
| Bright working current |
12mA |
| Black working current (for data communication) |
4.5mA |
| Reception sensitivity |
-95dbm |
| Dimensions |
13.5cm*6.5cm*2.2cm |
| Warranty |
1 years |
| Type |
Digital |
| Sensor(Ordinary internal type sensor) |
|
| Plastic parts material |
Nylon + glass fiber |
| Shell temperature resistance |
-50℃-150℃ |
| Antenna sheet material |
Phosphorus copper nickel plating |
| Machine weight (excluding valve) |
16g±1g |
| Power supply mode |
Button Battery |
| battery model |
CR2050 |
| battery capacity |
345mAh |
| Working voltage |
2.1V-3.6V |
| working temperature |
8.7mA |
| Self-test current |
2.2mA |
| Dormant current |
0.5uA |
| Working temperature |
-40℃-125℃ |
| Transmit frequency |
433.92MHZ |
| Transmit power |
>-12dBm |
| Dimensions |
5.3cm(length)*3.5cm(width)*1.4cm(height)(excluding valve) |
| Warranty |
12 Months |
System function
Reduce the pollution of vehicle exhaust emissions to the environment, and create a green and environmental friendly social environment;
Prevent tire blowout and reduce the risk of accidents;
Reduce vehicle tire damage and extend the service life of tires;
Esteemed customer:
Thank you for buying our Tire pressure Monitoring System (TPMS). This system makes you moresafety when driving.It can real-time monitor tire pressure and temperature conditions.If detected any abnormal pressure and temperature of tires, the system will transmit real-time voice alarm and flash warning icon to remind the driver.Real-time monitoring and warning can not only avoid risk of traffic accident but also make passenger safety.
In addition, this system can effectively help improve the vehicle comfortableness and driving safety, reduce vehicle wear, save fuel consumption and avoid risk of flat tire.
Please read the instruction carefully before using this product. If there is any misunderstanding,
