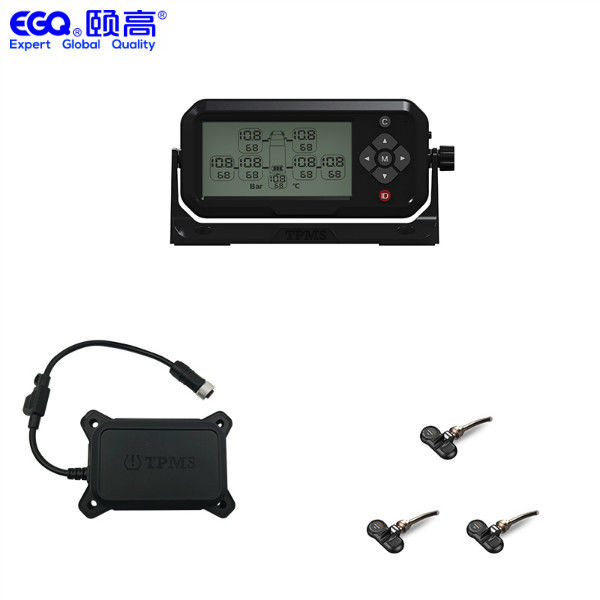

232 PSI Three Tire Pressure Monitoring System For Rv Trailer
Product parameters
| Receiver(7 Wheels) |
|
| Display interface |
LCD segment code (7 rounds with the same display) |
| Receiver port |
Vehicle battery, ACC input and RS232 output |
| Machine weight (excluding packaging) |
230g±5g |
| Abnormal self-recovery |
Toggle Switches(The switch is facing up, restart after disconnecting the external power supply.) |
| Working temperature |
-30-80℃ |
| Power supply mode |
internal rechargeable lithium battery and external power supply |
| Interface voltage |
Vehicle battery 24Volt, ACC24Volt |
| Built-in battery voltage |
3.5V-4.2V |
| Bright working current |
12mA |
| Black working current (for data communication) |
4.5mA |
| Reception sensitivity |
-95dbm |
| Dimensions |
13.5cm*6.5cm(width)*2.2cm(height) |
| Warranty |
1 years |
| Type |
Digital |
| Sensor(Ordinary internal type sensor) |
|
| Plastic parts material |
Nylon + glass fiber |
| Shell temperature resistance |
-50℃-150℃ |
| Antenna sheet material |
Phosphorus copper nickel plating |
| Machine weight (excluding valve) |
16g±1g |
| Power supply mode |
Button Battery |
| battery model |
CR2050 |
| battery capacity |
345mAh |
| Working voltage |
2.1V-3.6V |
| working temperature |
8.7mA |
| Self-test current |
2.2mA |
| Dormant current |
0.5uA |
| Working temperature |
-40℃-125℃ |
| Transmit frequency |
433.92MHZ |
| Transmit power |
>-12dBm |
| Dimensions |
5.3cm(length)*3.5cm(width)*1.4cm(height)(excluding valve) |
| Warranty |
12 Months |
Tyre Pressure Monitoring System for CAR, Truck Trailers , Semi Trailers , Caravans , RVs, 4WD, Motor holmes , any vehicles that has pneumatic tyres.
This unit monitors tyre pressure and temperature in your tyre, once you set the limit is exceeded an audible alarm is triggered for you to check your tyre. It will signal you with an alarm in up to 8 different conditions including fast and slow leakage, pressure loss and high pressure or high temperature situations.
Techincal Information
This unit is Easy to install and program and comes with a 12 month manufacturers warranty
Pressure range 0-232PSI
Pressure and temperature displayed for each tyre
Accurate to under 3%
Monitor displays pressure loss warnings visually and with an audible alarm
Tyre pressure levels can be individually set for each tyre
Dual pressure settings available for each tyre (on road/off road etc.)
Temperature alarms if tire temperature rises above 65C
Daily pressure reset
Trailer disconnect function
Sensors have replaceable batteries which are readily available
Minimum one year battery life
System function
Maintain the normal tire pressure and improve the comfort of vehicle ride;
Reduce the pollution of vehicle exhaust emissions to the environment, and create a green and environmental friendly social environment;
Esteemed customer:
Thank you for buying our Tire pressure Monitoring System (TPMS). This system makes you more safety when driving.It can real-time monitor tire pressure and temperature conditions.If detected any abnormal pressure and temperature of tires, the system will transmit real-time voice alarm and flash warning icon to remind the driver.Real-time monitoring and warning can not only avoid risk of traffic accident but also make passenger safety.
In addition, this system can effectively help improve the vehicle comfortableness and driving safety, reduce vehicle wear, save fuel consumption and avoid risk of flat tire.
