Rechargeable 433mhz Tire Pressure Sensor Rv Tpms System

Rechargeable 433mhz Tire Pressure Sensor Rv Tpms System

  • Rechargeable 433mhz Tire Pressure Sensor Rv Tpms System
Rechargeable 433mhz Tire Pressure Sensor Rv Tpms System
Product Details:
Place of Origin: China
Brand Name: EGQ
Certification: CE,FCC,ROHS,IATF16949:2016
Model Number: T1QZ1
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: boxs
Delivery Time: 7-15 work days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 10000 sets per month
Contact Now
Detailed Product Description
Plastic Parts Material: Nylon + Glass Fiber Dimensions: 13.5cm(length)*6.5cm(width)*2.2cm
Interface Voltage: Vehicle Battery 24V, ACC24V System Function: Reduce Vehicle Tire Damage And Extend The Service Life Of Tires
Bright Working Current: 12mA Warranty: 12 Months
Highlight:

433mhz Tire Pressure Sensor

,

Rv Tpms System

,

12mA Tpms System

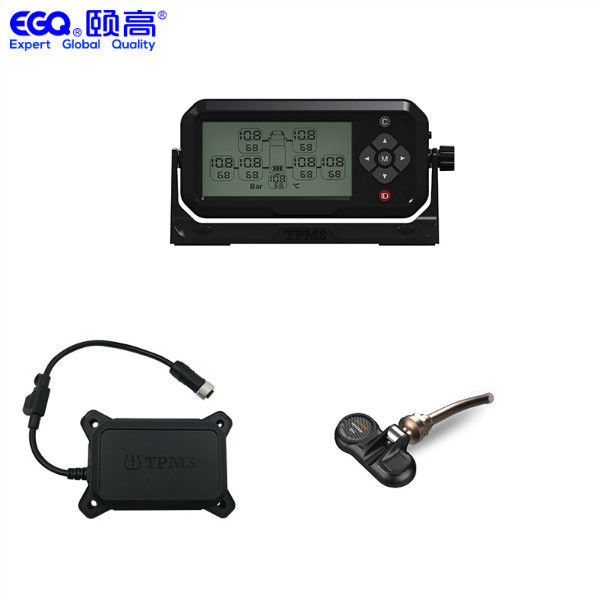

Rechargeable 433mhz Tire Pressure Sensor Rv Tpms System



Product parameters



Receiver
Display interface LCD segment code (7 rounds with the same display)
Receiver port Vehicle battery, ACC input and RS232 output
Machine weight (excluding packaging) 230g±5g
Abnormal self-recovery Toggle Switches(The switch is facing up, restart after disconnecting the external power supply.)
Working temperature -30-80℃
Power supply mode Built-in rechargeable lithium battery and external power supply
Interface voltage Vehicle battery 24V, ACC24V
Built-in battery voltage 3.5V-4.2V
Bright working current 12mA
Black working current (for data communication) 4.5mA
Reception sensitivity -95dbm
Dimensions 13.5cm(length)*6.5cm(width)*2.2cm(height)
Warranty 12 Months



Features

* Low battery alarm

* Sensor failure alarm

* Real-time tire data monitoring

* Visual/Audible alarm

* Wireless transmission

* With RS232 port, you can connected to GPS module



Sensor(Ordinary internal type sensor)
Plastic parts material Nylon + glass fiber
Shell temperature resistance -50℃-150℃
Antenna sheet material Phosphorus copper nickel plating
Machine weight (excluding valve) 16g±1g
Power supply mode Button Battery
battery model CR2050
battery capacity 345mAh
Working voltage 2.1V-3.6V
working temperature 8.7mA
Self-test current 2.2mA
Dormant current 0.5uA
Working temperature -40℃-125℃
Transmit frequency 433.92MHZ
Transmit power >-12dBm
Dimensions 5.3cm(length)*3.5cm(width)*1.4cm(height)(excluding valve)



System function



Reduce the pollution of vehicle exhaust emissions to the environment, and create a green and environmental friendly social environment;



Prevent tire blowout and reduce the risk of accidents;



Reduce vehicle tire damage and extend the service life of tires;



Reduce fuel consumption of vehicles, reduce the cost of use of vehicles;



Maintain the normal braking effect and reduce the occurrence of safety accidents;



Reduce abnormal wear of relevant parts such as vehicle shock absorber and suspension system;



Maintain the normal tire pressure and improve the comfort of vehicle ride;



Reduce the pollution of vehicle exhaust emissions to the environment, and create a green and environmental friendly social environment;



Reduce vehicle tire damage and extend the service life of tires;



Reduce fuel consumption of vehicles, reduce the cost of use of vehicles;



Esteemed customer:



Thank you for buying our Tire pressure Monitoring System (TPMS). This system makes you more safety when driving.It can real-time monitor tire pressure and temperature conditions.



This unit monitors tyre pressure and temperature in your tyre, once you set the limit is exceeded an audible alarm is triggered for you to check your tyre. It will signal you with an alarm in up to 8 different conditions including fast and slow leakage, pressure loss and high pressure or high temperature situations.
