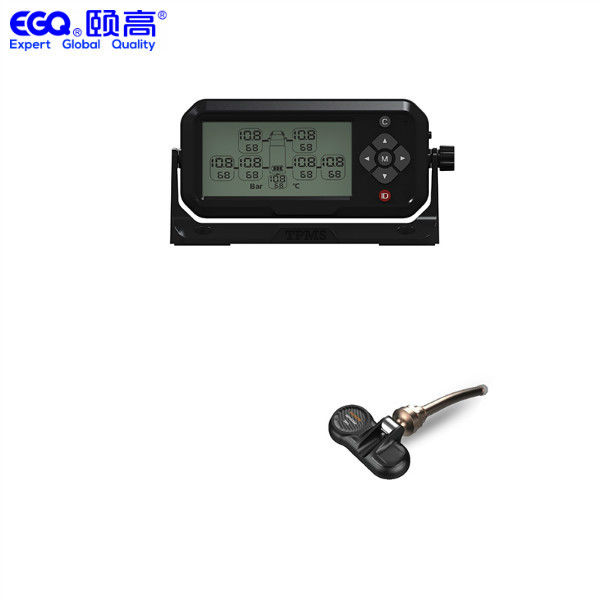

24V One Tire 433.92 MHZ RV Tire Pressure Monitoring System
Function:
The sensor collects the pressure and temperature data in the tire. And it sends data by radio frequency. The repeater can receive the pressure and temperature data sent by the sensor and forward the information to the receiver.
When the tire pressure or temperature is higher or lower than the preset alarm threshold, the receiver will automatically send the appropriate alarm to remind the user to pay attention to the tire status and timely treatment, in order to avoid a flat tire and damage the accident tire.
Feature:
◊ Easy to install, Perfect match between embedded monitor and original car interior;
◊ Button sensitive, easy to operate and learn, set up and query integration;
◊ White, elegant backlight display data is clearly visible
◊ Supports up to 26 tires pressure / temperature monitoring simultaneously
◊ Tire cycle display, data information, alarm icon at a glance, easy to observe;
◊ A variety of pressure / temperature unit selection
◊ Independently set the tire high pressure / low pressure / temperature alarm standard value
◊ Low pressure, high pressure, high temperature, leakage and other alarm functions
◊ Sound, flashing and other alarm methods, suitable for commercial vehicles noisy environment.
Product parameters
| Receiver |
|
| Display interface |
LCD segment code (7 rounds with the same display) |
| Receiver port |
Vehicle battery, ACC input and RS232 output |
| Machine weight (excluding packaging) |
230g±5g |
| Abnormal self-recovery |
Toggle Switches(The switch is facing up, restart after disconnecting the external power supply.) |
| Working temperature |
-30-80℃ |
| Power supply mode |
Built-in rechargeable lithium battery and external power supply |
| Interface voltage |
Vehicle battery 24V, ACC24Volt |
| Built-in battery voltage |
3.5V-4.2V |
| Bright working current |
12mA |
| Black working current (for data communication) |
4.5mA |
| Reception sensitivity |
-95dbm |
| Dimensions |
13.5cm(length)*6.5cm(width)*2.2cm(height) |
| Sensor(Ordinary internal type sensor) |
|
| Plastic parts material |
Nylon + glass fiber |
| Shell temperature resistance |
-50℃-150℃ |
| Antenna sheet material |
Phosphorus copper nickel plating |
| Machine weight (excluding valve) |
16g±1g |
| Power supply mode |
Button Battery |
| battery model |
CR2050 |
| battery capacity |
345mAh |
| Working voltage |
2.1V-3.6V |
| working temperature |
8.7mA |
| Self-test current |
2.2mA |
| Dormant current |
0.5uA |
| Working temperature |
-40℃-125℃ |
| Transmit frequency |
433.92MHZ |
| Transmit power |
>-12dBm |
| Dimensions |
5.3cm(length)*3.5cm(width)*1.4cm(height)(excluding valve) |
System function
Prevent tire blowout and reduce the risk of accidents;
Reduce vehicle tire damage and extend the service life of tires;
Esteemed customer:
Thank you for buying our Tire pressure Monitoring System (TPMS). This system makes you more
safety when driving.
