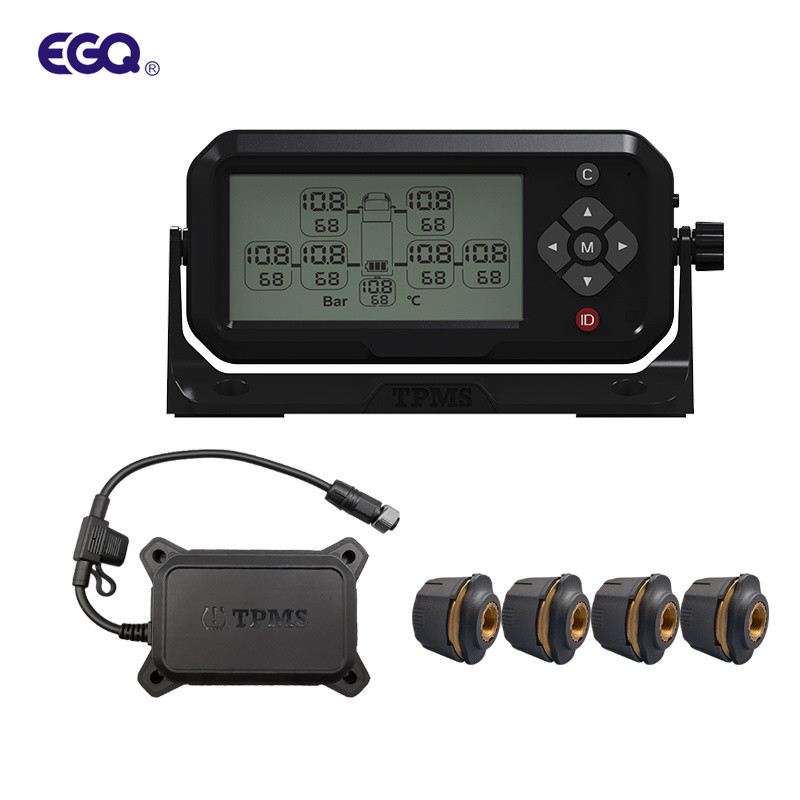

4 Wheels Trailer Tire Pressure Monitor With Repeater And Receiver

4 Wheels Trailer Tire Pressure Monitor With Repeater And Receiver

  • 4 Wheels Trailer Tire Pressure Monitor With Repeater And Receiver
4 Wheels Trailer Tire Pressure Monitor With Repeater And Receiver
Product Details:
Place of Origin: China
Brand Name: EGQ
Certification: CE,FCC,ROHS,IATF16949:2016
Model Number: B4WZ1
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: boxs
Delivery Time: 2-15 work days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 1000 sets per month
Contact Now
All Products
Tire Pressure Monitoring System (38)
Trailer Tire Pressure Monitoring System (37)
Truck Tire Pressure Monitoring System (105)
Bus TPMS (14)
OTR TPMS (32)
6 Tire Pressure Monitoring System (11)
Car Tire Pressure Monitoring System (18)
Motorcycle TPMS (10)
Bike TPMS (8)
Solar Tire Pressure Monitoring System (22)
RV Tire Pressure Monitoring System (45)
TPMS Solutions (34)
Detailed Product Description
Installation: External Waterproof Grade: IP67
Transmitting Frenquence: 433.92MHz Data Analysis: Real-time
Product Name: Trailer Tire Monitoring System Data Storage: Cloud
Alarm System: Alerts Compatibility: Android, IOS
Highlight:

4 Wheels Trailer Tire Pressure Monitor

,

Graphs Maps Trailer Tire Pressure Monitor

,

External Trailer Tire Pressure Sensor

B4WZ1 Description:

The Trailer Tire Monitoring System is a state-of-the-art solution to monitoring the performance of trailer tires. It is powered by a battery and provides encrypted real-time data. It sends alerts in various formats such as text, email, and voice messages to alert users of any abnormal tire performance. The Trailer Tire Monitoring System is an ideal solution for trailers to ensure their tires are in optimal condition for safe and efficient travel.

Sensor parameters:

Battery lifetime >5years
working voltage 2.1-3.6V
storage temperature -40℃-125℃
working temperature -35℃-120℃
temperature resolution ±3℃(25℃)
pressure range 0-1400Kpa
pressure resolution ±10Kpa
waterproof grade IP67
transimitting power 8dbm
Transmitting frenquence 433.92MHz

Monitor parameters:

Battery capacity: 480mAh
Working voltage: 24V
Screen on working current: <12mA
Screen off working current: <4.5mA
Working temperature: -30°C~85°C
Storage temperature: -40°C~90°C
sensitivity: -95dbm
working time: Charging permenent life
Receiving frequency: 433.92MHZ±50KHZ
Screen: LCD screen.



4 Wheels Trailer Tire Pressure Monitor With Repeater And Receiver 04 Wheels Trailer Tire Pressure Monitor With Repeater And Receiver 14 Wheels Trailer Tire Pressure Monitor With Repeater And Receiver 24 Wheels Trailer Tire Pressure Monitor With Repeater And Receiver 34 Wheels Trailer Tire Pressure Monitor With Repeater And Receiver 44 Wheels Trailer Tire Pressure Monitor With Repeater And Receiver 5





4 Wheels Trailer Tire Pressure Monitor With Repeater And Receiver 6

Tag:

433.92MHZ Trailer Tire Monitoring System,

TPMS Trailer Tire Monitoring System,

Twelve Tire TPMS
