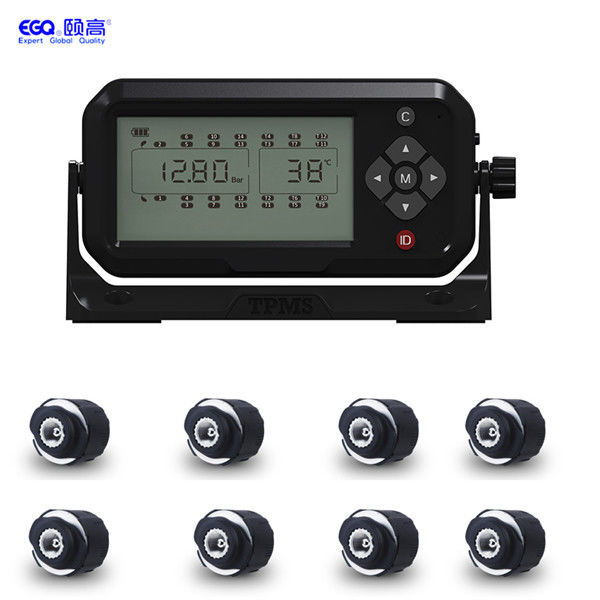

Eight Tire Truck TPMS Trailer Tire Pressure Monitoring System

Eight Tire Truck TPMS Trailer Tire Pressure Monitoring System

  • Eight Tire Truck TPMS Trailer Tire Pressure Monitoring System
Eight Tire Truck TPMS Trailer Tire Pressure Monitoring System
Product Details:
Place of Origin: China
Brand Name: EGQ
Certification: CE,FCC,ROHS,IATF16949:2016
Model Number: B8WZ0
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: boxs
Delivery Time: 7-15 work days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 10000 sets per month
Contact Now
Detailed Product Description
Receiver Abnormal Self-recovery: Toggle Switches(The Switch Is Facing Up, Restart After Disconnecting The External Power Supply.) Receiver Working Temperature: -30-80℃
Receiver Power Supply Mode: Internal Rechargeable Lithium Battery And External Power Supply Receiver Interface Voltage: Vehicle Battery 24Volt, ACC24Volt
Receiver Built-in Battery Voltage: 3.5Volt-4.2Volt Function: Reduce Vehicle Tire Damage And Extend The Service Life Of Tires;
Highlight:

Eight tire Truck TPMS

,

TPMS Trailer Tire Pressure Monitoring System

Eight Tire Truck TPMS Trailer Tire Pressure Monitoring System

Eight tire Truck TPMS For trailer truck non iclude repeater

Product parameters


Receiver
Display interfaceLCD segment code (7 rounds with the same display)
Receiver portVehicle battery, ACC input and RS232 output
Machine weight (excluding packaging)230g±5g
Abnormal self-recoveryToggle Switches(The switch is facing up, restart after disconnecting the external power supply.)
Working temperature-30-80℃
Power supply modeBuilt-in rechargeable lithium battery and external power supply
Interface voltageVehicle battery 24Volt, ACC24Volt
Built-in battery voltage3.5volt-4.2Volt
Bright working current12mA
Black working current (for data communication)4.5mA
Reception sensitivity-95dbm
Dimensions13.5cm(length)*6.5cm(width)*2.2cm(height)


System function

Prevent tire blowout and reduce the risk of accidents;

Reduce vehicle tire damage and extend the service life of tires;

Reduce fuel consumption of vehicles, reduce the cost of use of vehicles;

Maintain the normal braking effect and reduce the occurrence of safety accidents;

Main features:

1. LCD display with USB input charging slot.

2. RF wireless transmission.

3. receiver Battery rechargeable by charging

4. Flexible display place on dashboard freely.

5. High capacity battery for a month use.

6. Display showing 4tire pressure and tempreature all at a glance.

7. Compatible with both rxternal and internal sensor.

8. DIY installation for external sensor

9. Replacement battery for external sensor:CR2050B

10. Long life battery for internal sensor.

11. Visual and audible warning.

12. Convertible pressure and temperature unit.

Esteemed customer:

Thank you for buying our Tire pressure Monitoring System (TPMS). This system makes you more
safety when driving.It can real-time monitor tire pressure and temperature conditions.

If detected any abnormal pressure and temperature of tires, the system will transmit real-time voice alarm
and flash warning icon to remind the driver.
Real-time monitoring and warning can not only avoid risk of traffic accident but also make passenger safety.

Q: How can I get the sample to check your quality?
A: After price confirmation, you can require for samples to check our product’s quality. If you just need aTPMS sample to check the design and quality. We will provide you sample for free as long as you afford the express freight.

Q: What can I get the price?
A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please tell us in your email so that we will regard you inquiry priority.


Q: What is your term of delivery?
A: We accept EXW, FOB Shenzhen is ok. You can choosethe one which is the most convenient or cost effective for you.

Q: What about the lead time for the mass production?
A: Honestly, it depends on the order quantity and the season you place the order.
