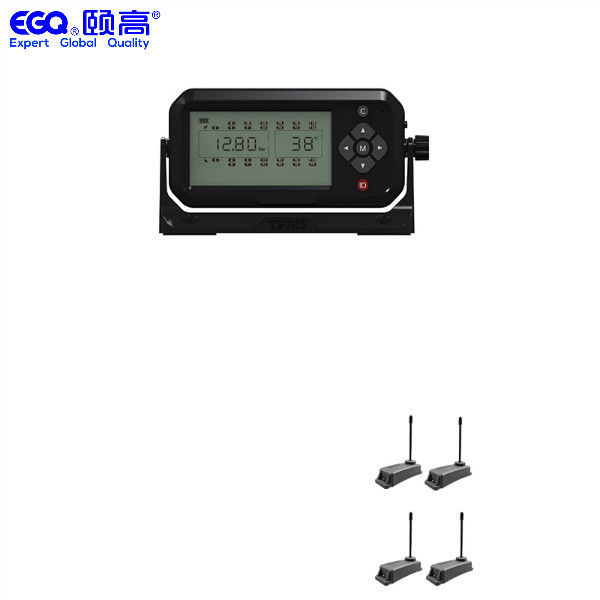

Real Time 4 Wheels 6 Tire Pressure Monitoring System
Product parameters
| Receiver(22 rounds) |
|
| Display interface |
LCD segment code (22 wheels with the same display) |
| Receiver port |
Vehicle battery, ACC input and RS232 output(about receiver) |
| Machine weight (excluding packaging) |
230±5gramme |
| Abnormal self-recovery |
Toggle Switches(The switch is facing up, restart after disconnecting the external power supply.) |
| Working temperature |
-30℃-80℃ |
| Power supply mode |
Internal rechargeable lithium battery and external power supply |
| Interface voltage |
Vehicle battery 24V, ACC24V |
| Built-in battery voltage |
3.5V-4.2V |
| Bright working current |
12mA |
| Black working current (for data communication) |
4.5mA |
| Reception sensitivity |
-95dbm |
| Dimensions |
13.5cm*6.5cm*2.2cm |
| Pressure range |
0bar~14bar/0psi~203psi |
| type |
internal binding type sensors |
| color |
black |
| Sensor (internal binding type sensor) |
|
| Plastic parts material |
Nylon + glass fiber |
| Machine weight (excluding bind belt) |
30g±1g |
| Shell temperature resistance |
-50℃-150℃ |
| bind belt material |
304 stainless steel |
| Power supply mode |
Button Battery |
| battery model |
CR2050 |
| battery capacity |
345mAh |
| Working voltage |
2.1V-3.6V |
| Working temperature |
-40℃-125℃ |
| working temperature |
8.7mA |
| Self-test current |
2.2mA |
| Dormant current |
0.5uA |
| Working temperature |
-40℃-125℃ |
| Transmit frequency |
433.92MHZ |
| Transmit power |
>-12dBm |
| Dimensions : |
7.3cm(length)*2.73cm(width)*2.2cm(height)(excluding antenna) |
component of product
Alarm function
leakage warning
High pressure warning
Low pressure warning
High temperature warning
Low power warning
No signal warning
Parameter Setting
Tire quantity selection setting
Pressure unit setting
Temperature unit setting
Pressure threshold setting
High temperature threshold setting
Restore factory setting
Product attention
1 Operation is not suggested during driving.
2 Sensor monitors pressure and temperature of tire and signal to receiver, receiver reports pressure and temperature by number and voice. If there is any abnormal pressure or temperature, flashing warning icon and voice prompt will notice driver immediately.
Drivers need to check and repair the tire immediately, in order to avoid risk of accident due to tire problem.
3 Tires have natural micro leakage phenomenon. It is a normal phenomenon that pressure of tire decreases over time. Pressure decreasing don't have directly relationship with install this products.
4 It is a normal phenomenon that pressure is unstable due to thermal expansion during driving. It don't have directly relationship with install this products.
5 Incorrectly installation will affect the use of this product or make damage. experienced technician is preferred to install this product. please be careful not to damage the sensor transmitter when disassembling tires again. Valve of internal sensor is not available for repeat assembling/disassembling.
6 Please use power cable provided by factory. It is not allowed to tie receiver by power cable, as I will damage product or effect signal . And you will lose warranty.
FAQ
1. Q: Are you a factory or trading company?
A: We are a 7 years experience manufacturer, and we will give you a factory price.
2. Q: Where is your factory located? How can I visit there?
A: Our factory is located in Shenzhen City, Guangdong Province, China. Welcome to visit us!
3. Q: I received the products is different with the pictures,how can i do?
A: Color different exists due to lighting and the use of different monitors. We will sent the samples to you for confirmation before mass production. If you are not satisfied with it, please contact me or our salesperson for solution.
4. Q: I received the item in broken, what should I do?
A: Every item before shipping is well inspected. Though they are well packed, sometimes damage can`t be avoided because of the rough handing during shipping. In this case, please contact me and send the pictures to me, let me know the quantity which is broken, we will resend them to you with next order.
5. Q: What is your MOQ?
A: Any quantity is acceptable for your order. And the price is negotiable for large quantity.
