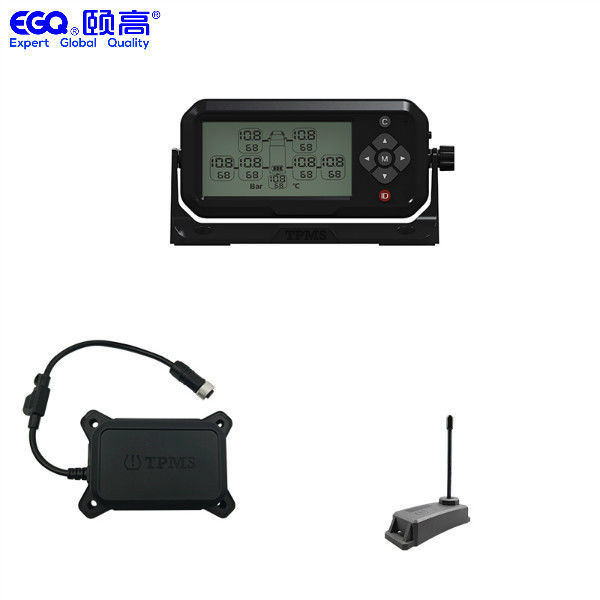

RS232 One wheel Internal Tire Pressure Monitoring System
Universal internal binding type one tire Truck TPMS For Trailer Truck iclude repeater
Product parameters
| Receiver(7 wheels) |
|
| Display interface |
LCD segment code (7 rounds with the same display) |
| Receiver port |
Vehicle battery, ACC input and RS232 output |
| Machine weight (excluding packaging) |
230±5g |
| Abnormal self-recovery |
Toggle Switches(The switch is facing up, restart after disconnecting the external power supply.) |
| Working temperature |
-30-80℃ |
| Power supply mode |
Built-in rechargeable lithium battery and external power supply |
| Interface voltage |
Vehicle battery 24V, ACC24V |
| Built-in battery voltage |
3.5V-4.2V |
| Bright working current |
12mA |
| Black working current (for data communication) |
4.5mA |
| Reception sensitivity |
-95dbm |
| Dimensions |
13.5cm(length)*6.5cm(width)*2.2cm(height) |
| Sensor (internal binding type sensor) |
|
| Plastic parts material |
Nylon + glass fiber |
| Machine weight (excluding bind belt) |
30g±1g |
| Shell temperature resistance |
-50℃-150℃ |
| bind belt material |
304 stainless steel |
| Power supply mode |
Button Battery |
| battery model |
CR2050 |
| battery capacity |
345mAh |
| Working voltage |
2.1V-3.6V |
| Working temperature |
-40℃-125℃ |
| working temperature |
8.7mA |
| Self-test current |
2.2mA |
| Dormant current |
0.5uA |
| Working temperature |
-40℃-125℃ |
| Transmit frequency |
433.92MHZ |
| Transmit power |
>-12dBm |
| Dimensions : |
7.3cm(length)*2.73cm(width)*2.2cm(height)(excluding antenna) |
System function
Maintain the normal tire pressure and improve the comfort of vehicle ride;
Reduce the pollution of vehicle exhaust emissions to the environment, and create a green and environmental friendly social environment;
Specifications:
1. Easy to install external sensor
2. Locking design for external sensor
3. Latest display mode of smart App
4. Display with visual and audible waring for tire pressure
5. Digital number warning for abnormal tire pressure
6. Circular LED light warning for abnormal tire condition
7. Stable signal transmission
8. Battery of sensor can be replaced
9. Save fuel and reduce emissions
10. Reduce wear & extend tire life
Warranty:
1. All products have been strictly Quality Checked in house before packing.
2. All products have been well packed before shipping.
3. 18 months warranty is provided for all models. We will bear maintenance cost during warranty.
Delivery:
1. Sample and mini order will be delivered within 1-2 working days after the receipt of payment.
2. For order over 500pcs or customized order, lead time will be 3-15 days after the receipt of payment. Please contact our sales to make sure the current inventory.
Esteemed customer:
Thank you for buying our Tire pressure Monitoring System (TPMS). This system makes you more
safety when driving.It can real-time monitor tire pressure and temperature conditions.
If detected any abnormal pressure and temperature of tires, the system will transmit real-time voice alarm
and flash warning icon to remind the driver.
Real-time monitoring and warning can not only avoid risk of traffic accident but also make passenger safety.
In addition, this system can effectively help improve the vehicle comfortableness and driving
safety, reduce vehicle wear, save fuel consumption and avoid risk of flat tire.
Please read the instruction carefully before using this product. If there is any misunderstanding,please consult distributor or phone customer service, thanks!
