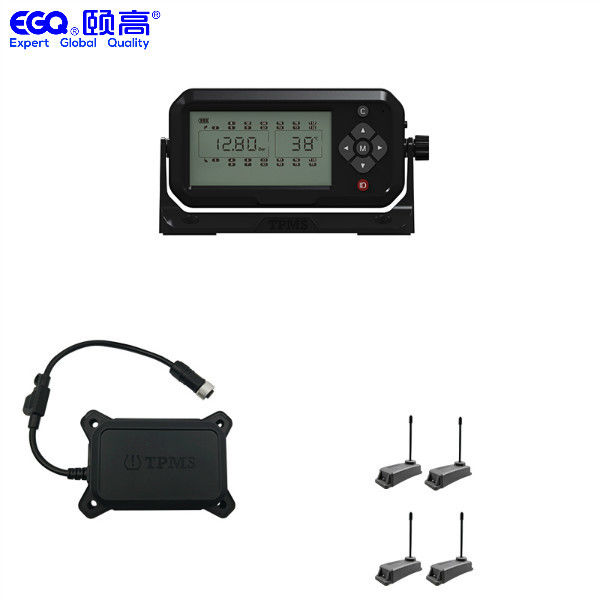

High Temperature Warning Binding Type 4 Tire Smart Tpms Sensor
Product parameters
| Receiver(22 rounds) |
|
| Display interface |
LCD segment code (22 wheels with the same display) |
| Receiver port |
Vehicle battery, ACC input and RS232 output(about receiver) |
| Machine weight (excluding packaging) |
230gramme±5gramme |
| Abnormal self-recovery |
Toggle Switches(The switch is facing up, restart after disconnecting the external power supply.) |
| Working temperature |
-30℃-80℃ |
| Power supply mode |
Internal rechargeable lithium battery and external power supply |
| Interface voltage |
Vehicle battery 24V, ACC24V |
| Built-in battery voltage |
3.5V-4.2V |
| Bright working current |
12mA |
| Black working current (for data communication) |
4.5mA |
| Reception sensitivity |
-95dbm |
| Dimensions |
13.5cm*6.5cm*2.2cm |
| Pressure range |
0bar~14bar/0psi~203psi |
| type |
internal binding type sensors |
| color |
black |
component of product
Alarm function
leakage warning
High pressure warning
Low pressure warning
High temperature warning
Low power warning
No signal warning
Parameter Setting
Tire quantity selection setting
Pressure unit setting
Temperature unit setting
Pressure threshold setting
High temperature threshold setting
Restore factory setting
| Sensor (internal binding type sensor) |
|
| Plastic parts material |
Nylon + glass fiber |
| Machine weight (excluding bind belt) |
30g±1g |
| Shell temperature resistance |
-50℃-150℃ |
| bind belt material |
304 stainless steel |
| Power supply mode |
Button Battery |
| battery model |
CR2050 |
| battery capacity |
345mAh |
| Working voltage |
2.1V-3.6V |
| Working temperature |
-40℃-125℃ |
| working temperature |
8.7mA |
| Self-test current |
2.2mA |
| Dormant current |
0.5uA |
| Working temperature |
-40℃-125℃ |
| Transmit frequency |
433.92MHZ |
| Transmit power |
>-12dBm |
| Dimensions : |
7.3cm(length)*2.73cm(width)*2.2cm(height)(excluding antenna) |
Product attention
1 Operation is not suggested during driving.
2 Sensor monitors pressure and temperature of tire and signal to receiver, receiver reports pressure and temperature by number and voice. If there is any abnormal pressure or temperature, flashing warning icon and voice prompt will notice driver immediately.
Drivers need to check and repair the tire immediately, in order to avoid risk of accident due to tire problem.
3 Tires have natural micro leakage phenomenon. It is a normal phenomenon that pressure of tire decreases over time. Pressure decreasing don't have directly relationship with install this products.
4 It is a normal phenomenon that pressure is unstable due to thermal expansion during driving. It don't have directly relationship with install this products.
5 Incorrectly installation will affect the use of this product or make damage. experienced technician is preferred to install this product. please be careful not to damage the sensor transmitter when disassembling tires again. Valve of internal sensor is not available for repeat assembling/disassembling.
FAQ
Q1: Could I print my own brand/ logo on the goods?
R: Sure, of course, OEM printing logo is welcomed based on MOQ.
Please show Brand Licensing and provide original logo file.
Q2. What’s the MOQ if I want to print my own brand/logo?
R: The MOQ will be decided by your customized packaging.
Q3: Can I make sample based on my demand?
R: Certainly, we have professional engineer to make a proof before order OEM mass product.
Q4: is there stock goods? What’s the MOQ?
R: Yes, we have approx 1,000 square meters as warehouse stock to ensure timely supply. The MOQ is 10 set.
Q5: How can I pay for order?
We accept Bank Transfer,Paypal, Western Union or Escrow for payment.
30% deposit is allowed for mass production.
