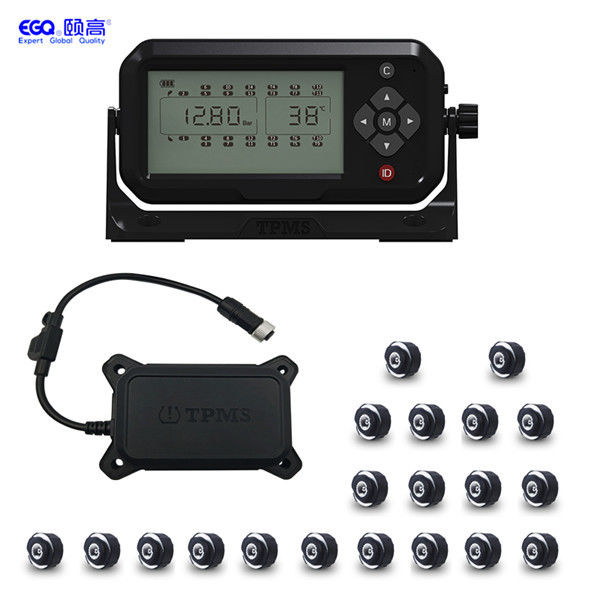

Twenty Tire TPMS 203psi Trailer Tire Monitoring System

Twenty Tire TPMS 203psi Trailer Tire Monitoring System

  • Twenty Tire TPMS 203psi Trailer Tire Monitoring System
Twenty Tire TPMS 203psi Trailer Tire Monitoring System
Product Details:
Place of Origin: China
Brand Name: EGQ
Certification: CE,FCC,ROHS,IATF16949:2016
Model Number: B18WZ1
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: boxs
Delivery Time: 7-15 work days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 10000 sets per month
Contact Now
Detailed Product Description
Plastic Parts Material: Nylon + Glass Fiber Working Voltage: 2.1-3.6Volt
Metal Part Material: Aluminum Alloy Built-in Battery Voltage: 3.5-4.2V
Dimensions: 13.5cm*6.5cm*2.2cm Interface Voltage: Vehicle Battery 24V, ACC24V
Pressure Range: 0~203psi/0~14bar
Highlight:

203psi Trailer Tire Monitoring System

,

Twenty Tire TPMS

,

203psi TPMS

Twenty Tire TPMS 203psi Trailer Tire Monitoring System



Twenty tire Truck TPMS For trailer truck iclude repeater



Product parameters



Receiver
Display interface LCD segment code (7 rounds with the same display)
Receiver port Vehicle battery, ACC input and RS232 output
Machine weight (excluding packaging) 230g±5g
Abnormal self-recovery Toggle Switches(The switch is facing up, restart after disconnecting the external power supply.)
Working temperature -30-80℃
Power supply mode Built-in rechargeable lithium battery and external power supply
Interface voltage Vehicle battery 24V, ACC24V
Built-in battery voltage 3.5-4.2V
Bright working current 12mA
Black working current (for data communication) 4.5mA
Reception sensitivity -95dbm
Dimensions 13.5cm(length)*6.5cm(width)*2.2cm(height)



Sensor(External sensor)
Plastic parts material Nylon + glass fiber
Metal part material Aluminum alloy
Shell temperature resistance -50-150℃
Thread Size 8V1 internal thread
Machine weight (excluding packaging) 12g±1g
Power supply mode Button Battery
battery model CR1632
battery capacity 135mAh
Working voltage 2.1-3.6Volt
working temperature 8.7mA
Self-test current 2.2mA
Dormant current 0.5uA
Sensor working temperature -30℃-80℃
Transmit frequency 433.92MHZ
Transmit power >-20dBm
Waterproof grade IP67
Dimensions Φ2.4cm(diameter)*2cm(height)



System function



Maintain the normal braking effect and reduce the occurrence of safety accidents;



Reduce abnormal wear of relevant parts such as vehicle shock absorber and suspension system;



1) Sensor interface leakage

it is usually caused by non -standard tire vavle,please replace it with a standard one in tire store.



2) After installed APP and set up sensor correctly, the vehicle is started, but no value on displayed

Pls restart the phone app and confirm whether the Bluetooth is turned om, data will be recived within two minutes under normal circumstance.



3) Sensor Missing

please buy sensors from our company and reset it



4) Battery out of power

please replace a new button battery CR1632



5) Tire Position Exchange

The sensor must be exchanged according to the mark in the cover after exchanging the tires position



OEM&ODM Service:

1. Customize logo and brand print on the device

2. Customize box

3. Offer firmware modification service

4. Customize design in bulk order



Package & Shipping

Payment:by Paypal,T/T,Western Union,Alipay

Shipping:by DHL,UPS,Fedex,TNT,Air Cargo...

Delivery:nolmal quantity around 3days after paypment ,OEM/Bulk quantity 7~15days







Thank you for buying our Tire pressure Monitoring System (TPMS). This system makes you more

safety when driving.It can real-time monitor tire pressure and temperature conditions.

Real-time monitoring and warning can not only avoid risk of traffic accident but also make passenger safety.

If detected any abnormal pressure and temperature of tires, the system will transmit real-time voice alarm

and flash warning icon to remind the driver.



FAQ



Q: Are you a factory or trading company?



A: We are a factory.





Q: What is the guarantee of your TPMS?



A: For the TPMS,we have 1 years warranty.also will send guarantee certificate together with system to you.





Q: How to pack the goods?



A: We will pack the goods with paper carton,can pack with woven bag as well.





Q: Will u support any after-service?



A: Of course,it is our responsible to provide one-to-one excellent technology service of sensor.





Q: How to get the samples?



A: It is our honor to provide the samples to you,you just need to pay the freight and sample fee.
