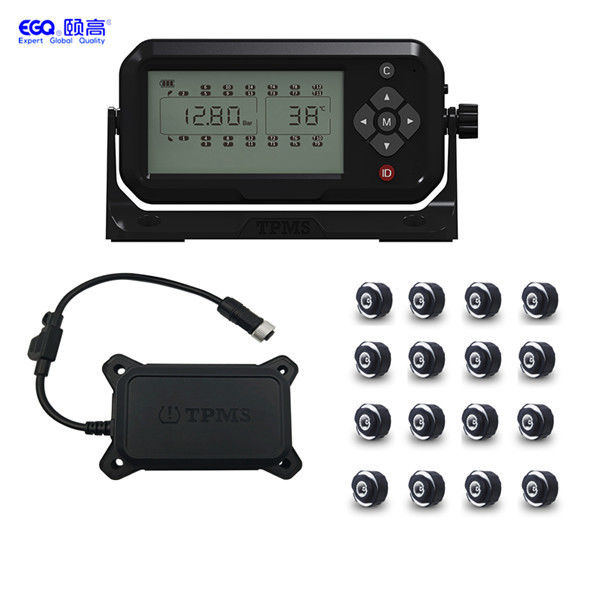

Wireless Sixteen Tire Truck Trailer Tire Pressure Monitor
Product parameters
| Receiver |
|
| Display interface |
LCD segment code (7 rounds with the same display) |
| Receiver port |
Vehicle battery, ACC input and RS232 output |
| Machine weight (excluding packaging) |
230g±5g |
| Abnormal self-recovery |
Toggle Switches(The switch is facing up, restart after disconnecting the external power supply.) |
| Working temperature |
-30-80℃ |
| Power supply mode |
Built-in rechargeable lithium battery and external power supply |
| Interface voltage |
Vehicle battery 24V, ACC24V |
| Built-in battery voltage |
3.5V-4.2Volt |
| Bright working current |
12mA |
| Black working current (for data communication) |
4.5mA |
| Reception sensitivity |
-95dbm |
| Dimensions |
13.5cm(length)*6.5cm(width)*2.2cm(height) |
Features
* Internal TPMS,2 tires to 26 tires
* Sensor built-in installation
* It requires professional installation tire removal tool
* Provide a power line to truck VCC
* Monitor can support up to 26 tire pressure, temperature and battery voltage cycle
* High-definition 5.0-inch colorful LCD display
* you must use more repeaters when you use trailer
* Convertible pressure unit, Bar/Psi
* Adjustable viewing angle of display by steady
* High/low pressure alarm
* Slow/fast leakage alarm
* High temperature alarm
* Low battery alarm
* Sensor failure alarm
* Real-time tire data monitoring
* Visual/Audible alarm
* Wireless transmission
* With RS232 port, you can connected to GPS module
| Sensor(External sensor) |
|
| Plastic parts material |
Nylon + glass fiber |
| Metal part material |
Aluminum alloy |
| Shell temperature resistance |
-50℃-150℃ |
| Thread Size |
8V1 internal thread |
| Machine weight (excluding packaging) |
12g±1g |
| Power supply mode |
Button Battery |
| battery model |
CR1632 |
| battery capacity |
135mAh |
| Working voltage |
2.1V-3.6V |
| working temperature |
8.7mA |
| Self-test current |
2.2mA |
| Dormant current |
0.5uA |
| Sensor working temperature |
-30℃-80℃ |
| Transmit frequency |
433.92MHZ |
| Transmit power |
>-20dBm |
| Waterproof grade |
IP67 |
| Dimensions |
Φ2.4cm(diameter)*2cm(height) |
System function
Reduce fuel consumption of vehicles, reduce the cost of use of vehicles;
Maintain the normal braking effect and reduce the occurrence of safety accidents;
