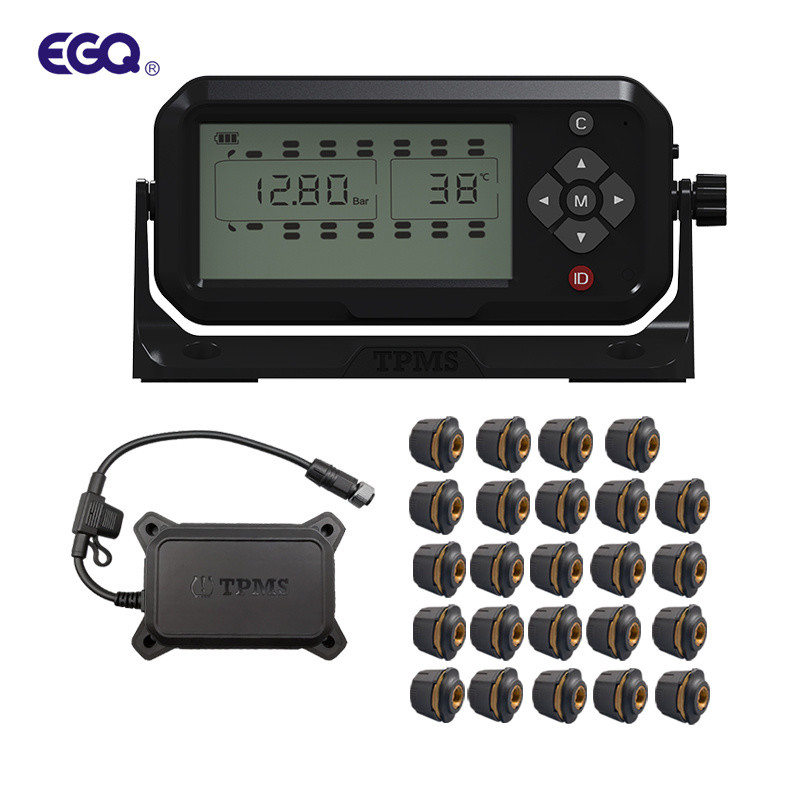

Twenty Four Tire Trailer Tire Monitoring System

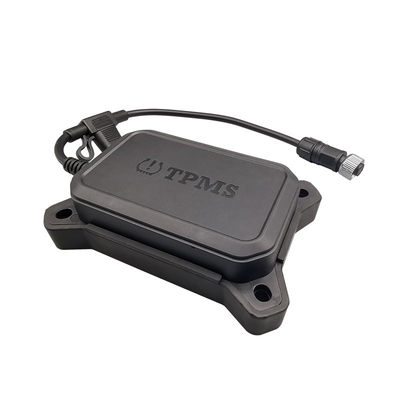

twenty four tire Truck TPMS For trailer truck iclude repeater
Product parameters

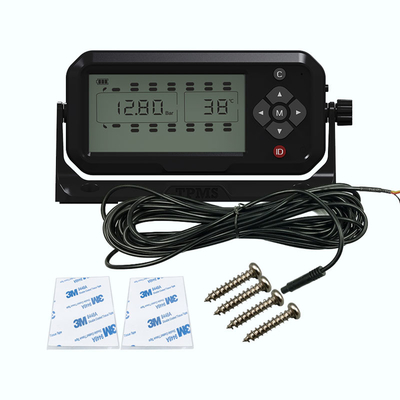

| Receiver |
|

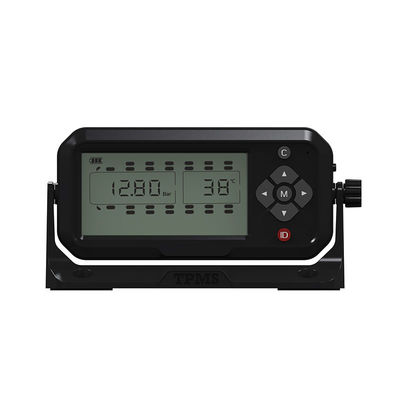

| Display interface |
LCD segment code (7 rounds with the same display) |
| Receiver port |
Vehicle battery, ACC input and RS232 output |
| Machine weight (excluding packaging) |
230g±5g |
| Abnormal self-recovery |
Toggle Switches(The switch is facing up, restart after disconnecting the external power supply.) |
| Working temperature |
-30-80℃ |
| Power supply mode |
Built-in rechargeable lithium battery and external power supply |
| Interface voltage |
Vehicle battery 24V, ACC24Volt |
| Built-in battery voltage |
3.5Volt-4.2Volt |
| Bright working current |
12mA |
| Black working current (for data communication) |
4.5mA |
| Reception sensitivity |
-95dbm |
| Dimensions |
13.5cm(length)*6.5cm(width)*2.2cm(height) |

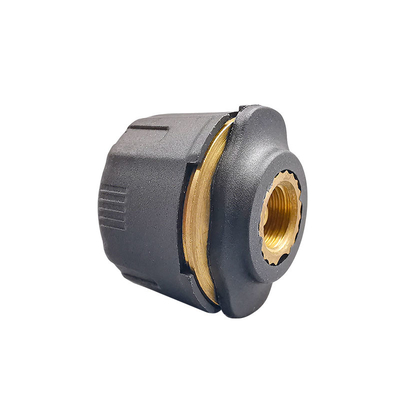

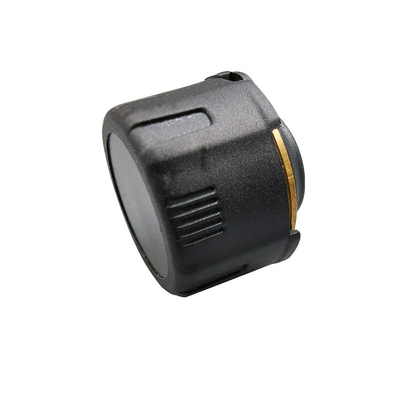

| Sensor(External sensor) |
|
| Plastic parts material |
Nylon + glass fiber |
| Metal part material |
Aluminum alloy |
| Shell temperature resistance |
-50-150℃ |
| Thread Size |
8V1 internal thread |
| Machine weight (excluding packaging) |
12g±1g |
| Power supply mode |
Button Battery |
| battery model |
CR1632 |
| battery capacity |
135mAh |
| Working voltage |
2.1-3.6Volt |
| working temperature |
8.7mA |
| Self-test current |
2.2mA |
| Dormant current |
0.5uA |
| Sensor working temperature |
-30℃-80℃ |
| Transmit frequency |
433.92MHZ |
| Transmit power |
>-20dBm |
| Waterproof grade |
IP67 |
| Dimensions |
Φ2.4cm(diameter)*2cm(height) |
System function
Maintain the normal tire pressure and improve the comfort of vehicle ride;
Reduce the pollution of vehicle exhaust emissions to the environment, and create a green and environmental friendly social environment;
1) Sensor interface leakage
it is usually caused by non -standard tire vavle,please replace it with a standard one in tire store.
2) After installed APP and set up sensor correctly, the vehicle is started, but no value on displayed
Pls restart the phone app and confirm whether the Bluetooth is turned om, data will be recived within two minutes under normal circumstance.
3) Sensor Missing
please buy sensors from our company and reset it
4) Battery out of power
please replace a new button battery CR1632
5) Tire Position Exchange
The sensor must be exchanged according to the mark in the cover after exchanging the tires position
OEM&ODM Service:
1. Customize logo and brand print on the device
2 .Customize box
3. Offer firmware modification service
4. Customize design in bulk order
Package & Shipping
Payment:by Paypal,T/T,Western Union,Alipay
Shipping:by DHL,UPS,Fedex,TNT,Air Cargo...
Delivery:nolmal quantity around 3days after paypment ,OEM/Bulk quantity 7~15days
Thank you for buying our Tire pressure Monitoring System (TPMS). This system makes you more
safety when driving.It can real-time monitor tire pressure and temperature conditions.
Real-time monitoring and warning can not only avoid risk of traffic accident but also make passenger safety.
In addition, this system can effectively help improve the vehicle comfortableness and driving
safety, reduce vehicle wear, save fuel consumption and avoid risk of flat tire.
