Shenzhen EGQ Cloud Technology Co., Ltd.
|
Product Details:
Payment & Shipping Terms:
|
| Receiver Abnormal Self-recovery: | Toggle Switches(The Switch Is Facing Up, Restart After Disconnecting The External Power Supply.) | Receiver Working Temperature: | -30-80℃ |
|---|---|---|---|
| Receiver Interface Voltage: | Vehicle Battery 24V, ACC24Volt | Working Voltage: | 2.1-3.6V |
| Function: | Maintain The Normal Braking Effect And Reduce The Occurrence Of Safety Accidents; | Transmit Frequency: | 433.92MHZ |
| High Light: | Twelve Tire TPMS,Truck Trailer TPMS,433.92MHZ 12 Tire TPMS |
||

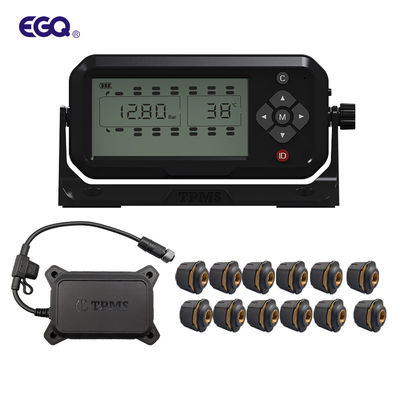

Twelve Tire Truck Trailer TPMS
twelve tire Truck TPMS For trailer truck iclude repeater
Product parameters

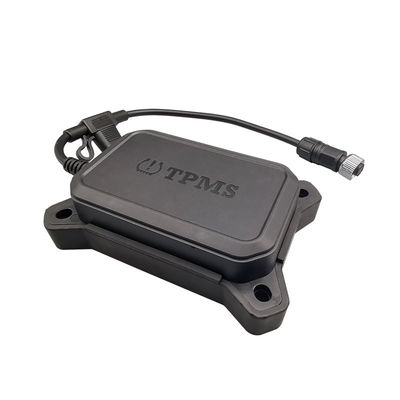

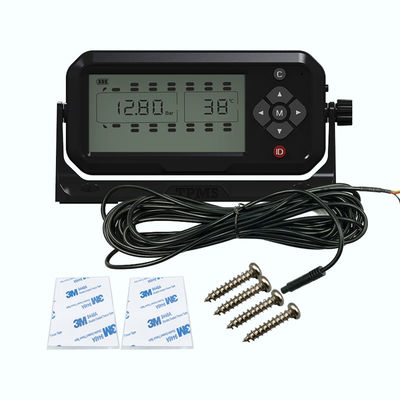

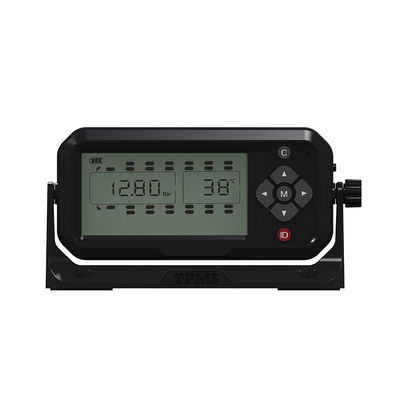

| Receiver | |
| Display interface | LCD segment code (7 rounds with the same display) |
| Receiver port | Vehicle battery, ACC input and RS232 output |
| Machine weight (excluding packaging) | 230g±5g |
| Abnormal self-recovery | Toggle Switches(The switch is facing up, restart after disconnecting the external power supply.) |
| Working temperature | -30-80℃ |
| Power supply mode | Built-in rechargeable lithium battery and external power supply |
| Interface voltage | Vehicle battery 24V, ACC24Volt |
| Built-in battery voltage | 3.5V-4.2V |
| Bright working current | 12mA |
| Black working current (for data communication) | 4.5mA |
| Reception sensitivity | -95dbm |
| Dimensions | 13.5cm(length)*6.5cm(width)*2.2cm(height) |

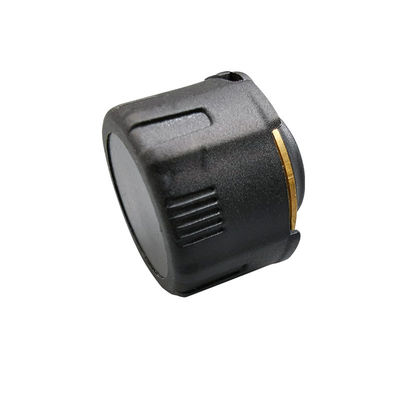

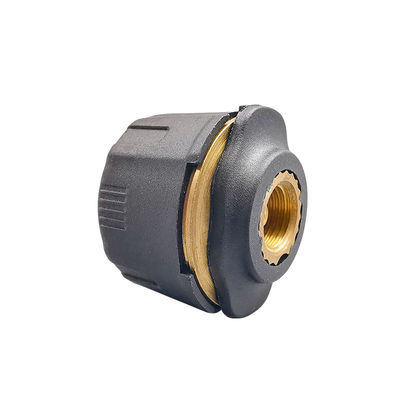

| Sensor(External sensor) | |
| Plastic parts material | Nylon + glass fiber |
| Metal part material | Aluminum alloy |
| Shell temperature resistance | -50℃-150℃ |
| Thread Size | 8V1 internal thread |
| Machine weight (excluding packaging) | 12g±1g |
| Power supply mode | Button Battery |
| battery model | CR1632 |
| battery capacity | 135mAh |
| Working voltage | 2.1-3.6V |
| working temperature | 8.7mA |
| Self-test current | 2.2mA |
| Dormant current | 0.5uA |
| Sensor working temperature | -30℃-80℃ |
| Transmit frequency | 433.92MHZ |
| Transmit power | >-20dBm |
| Waterproof grade:IP67 | |
| Dimensions | Φ2.4cm(diameter)*2cm(height) |
System function
Prevent tire blowout and reduce the risk of accidents;
Reduce vehicle tire damage and extend the service life of tires;
Features:
Multiple monitoring: high pressure alarm, low pressure alarm, high temperature alarm and emergency air alarm.
Real time display your tires’ temperature and pressure and real-time alarm function, and ensure safe driving.
Easy to install, and they can be easily and quickly installed by using the tools.
1. what is the shipment way?
• Express company like DHL,TNT,UPS,Fedex,EMS (Door to Door service),by air company;
• By sea (LCL or whole container shipment), you can choose the one you prefer!
2. if the price include duty?
• Usually the price we quote without the duty in your country, as different country duty rate different, but to some countries, we will send by a special line which can with duty (e.g. European special line), please contact with us if you want to need more.
Our Services
• 100% QC inspection Before Shippment, we will provide the photos or video of the whole process of produce, package till sending.
• We have After-sales service, please contact us if there is any questions about the order, we will relpy you in 12 hours due to time zone.
Esteemed customer:
Thank you for buying our Tire pressure Monitoring System (TPMS). This system makes you more
safety when driving.It can real-time monitor tire pressure and temperature conditions.
Delivery term?
Sample will be sent within 3-7 working days after received payment;Need about 20-25 working days for bulk order.
Warranty Policy?
We provide warranty for 12 months and we also provide another option which is you can choose 1% spare parts when you placing the order instead of 1 year warranty.
