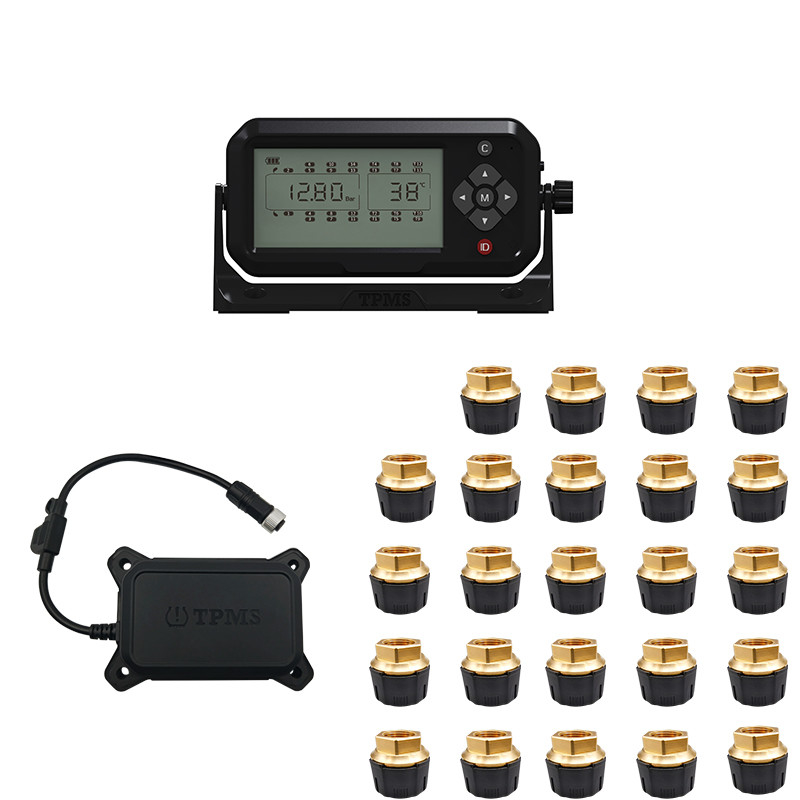

24 wheel OTR external sensors, repeaters, receivers tire pressure monitoring system

24 wheel OTR external sensors, repeaters, receivers tire pressure monitoring system

Good point/advantage

High temperature warning of tire

sensor Low power warning

sensor No signal warning

Sensor and receiver corresponding wheel position number(26 wheels)

Internal TPMS,2 tires to 26 tires

Sensor built-in installation

It requires professional installation tire removal tool

Provide a power line to truck VCC

Monitor can support up to 26 tire pressure, temperature and battery voltage cycle

High-definition 5.0-inch colorful LCD display

Product parameters

OTR sensors

Dimensions :Φ2.4cm(diameter)*2cm( height )

Plastic parts material: Nylon + glass fiber

Metal part material: copper

Shell temperature resistance :-50℃-150℃

Thread Size :12V1 internal thread(customizable)

Machine weight (excluding packaging) :23g±1g

Power supply mode: Button Battery

Battery model :CR1632

Battery capacity :135mAh

Working voltage :2.1V-3.6V

Transmit current :8.7mA

Self-test current :2.2mA

Sleep current :0.5uA

Sensor working temperature: -30℃-80℃

Transmit frequency: 433.92MHZ

Transmit power :-10dbm

Warranty :12months

FAQ

Q: What’s your payment term ?

A: 30% deposit by T/T, 70% balance paid before the shipping.

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: For TPMS Product,we will send goods to you within 15 work days after we receive your 70% Balance due.

For OEM products,the delivery time is 30-35 work days after we receive your 70% Balance due.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.OR T/T, L/C, D/A and western union.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample of extra fee but do not pay the cost of freight.

Q: What is your shipping way?

A: We will help you to choose the best shipping way according to your detail requirements,By sea,By air or By express,etc.

Q. How do you control the quality?

A: We will make samples before mass production, and after sample approved, we will begin mass production.Doing 100% inspection during production; then do random inspection.before packing; taking pictures after packing.

Q. If any quality problem, how can you settle it for us?

A: Any problem, our company has Professional technicians will be deal with it timely.
