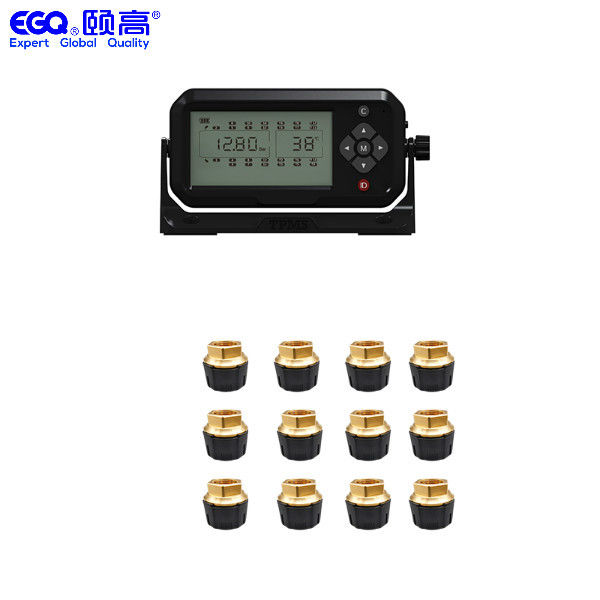

Real Time 12 Tires OTR Wireless Tire Pressure Monitoring System

Real Time 12 Tires OTR Wireless Tire Pressure Monitoring System

  • Real Time 12 Tires OTR Wireless Tire Pressure Monitoring System
Real Time 12 Tires OTR Wireless Tire Pressure Monitoring System
Product Details:
Place of Origin: China
Brand Name: EGQ
Certification: CE,FCC,ROHS,IATF16949:2016
Model Number: B12OZ0
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: boxs
Delivery Time: 7-15 work days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 10000 sets per month
Contact Now
Detailed Product Description
Features: * Real-time Tire Data Monitoring Display Interface: LCD Segment Code (7 Rounds With The Same Display)
Max Pressure: 203psi Transmit Frequency: 433.92MHZ
Sensor Working Temperature: -30-80℃ Feature: * Visual/Audible Alarm
Highlight:

Wireless Tire Pressure Monitoring System

,

OTR Tire Pressure Monitoring System

Real Time 12 Tires OTR Wireless Tire Pressure Monitoring System



Features



* Real-time tire data monitoring



* Visual/Audible alarm





Product parameters



Commercial vehicle repeater



Machine port:Vehicle battery ACC input(24V)



Machine weight (excluding packaging):120g±3g



working temperature:-40-85℃



Normal current:4.5mA



Reception sensitivity:-95dbm



Transmit frequency:433.92MHz



Transmit current:<50mA



Transmit power:<10dbm



Waterproof grade:IP67



OTR sensors
Dimensions Φ2.4cm(diameter)*2cm( height )
Plastic parts material Nylon + glass fiber
Metal part material copper
Shell temperature resistance -50℃-150℃
Thread Size 12V1 internal thread(customizable)
Machine weight (excluding packaging) 23±1g
Power supply mode Button Battery
Battery model CR1632
Battery capacity 135mAh
Working voltage 2.1V-3.6V
Transmit current 8.7mA
Self-test current 2.2mA
Sleep current 0.5uA
Sensor working temperature -30℃-80℃
Transmit frequency 433.92MHZ
Transmit power -10dbm



Monitor has rechargeable lithium battery and may be operated continuously for 4-5 days without plugging into the USB port if desired (much longer if switched off when not driving)

Please Note: optional TPMS repeater Is also available in our alibaba Store . The TPMS repeater is used to strengthen the signal should this be required due to distance ,or interference . repeater are generally recommended for long vehicles like motor homes and semi trailers however we recommend you try our Tyre Pressure Monitoring System without a booster to start with and only add a repeater if you find it necessary.



FAQ



Q1. What is your terms of payment?

A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages

before you pay the balance.



Q2. How about your delivery time?

A: Generally, it will take 3 to 7 working days after receiving your advance payment. The specific delivery time depends

on the items and the quantity of your order.



Q3. What is your sample policy?

A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and

the courier cost.



Q4. Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery



Q5: How do you make our business long-term and good relationship?

A:1. We keep good quality and competitive price to ensure our customers benefit ;

2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.



Q6: What's your MOQ?



A: 200pcs for car TPMS. 1000pcs for TRUCK TPMS.
