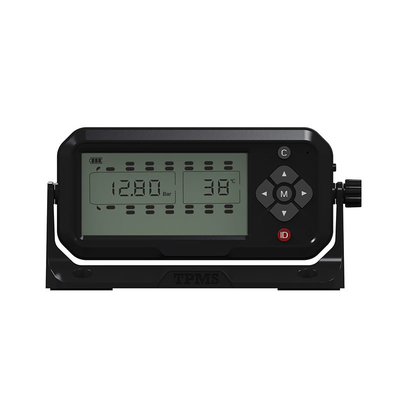

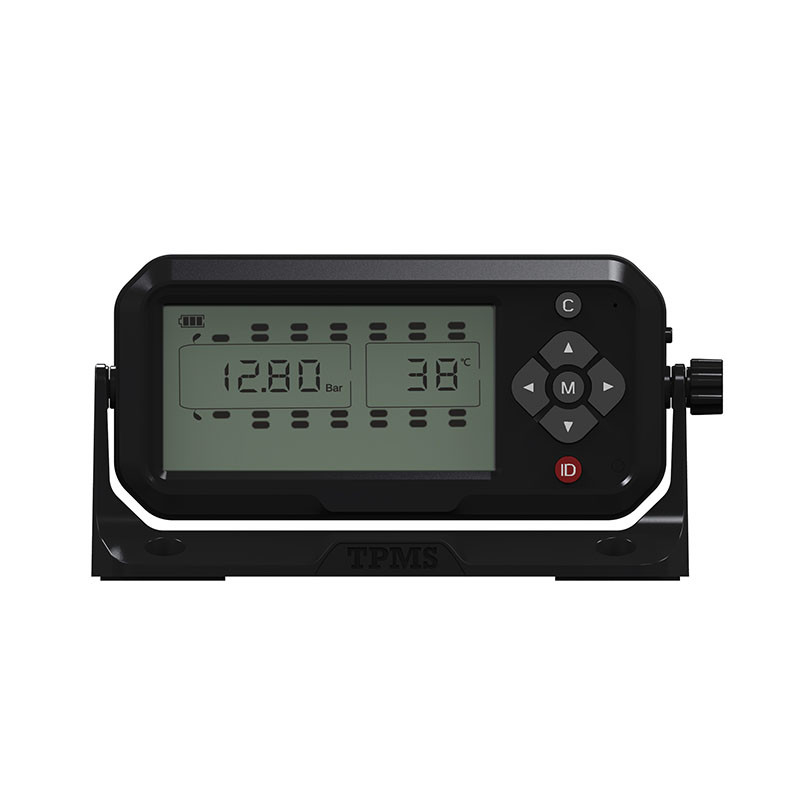

Twelve Sensors RF Wireless Tire Pressure Monitoring System
Universal internal Bluetooth twelve sensors Tire pressure monitoring system for Passenger car 2.4Ghz
Specifications
LCD pannel,with extra Micro USB port for charging.
Real-time Monitor the tempreature and pressure with high degree accuracy
RF wireless technology,can auto-alarm,when tire pressure and temperature is abnormal.
Support tire position exchange function.
With Freescale Chip and RENATA anti-explosion battery.
Real-time Wireless Car Tire Pressure Monitoring System Solar External Internal Universal TPMS
Hot sale bluetooth external tpms tire pressure monitoring system
Once BLE tire sensor installed in wheel, tire pressure and temperature can be displayed in cellphone with APP. During travel, tire pressure and temperature displayed in real time and send alert when statistics' abnormal. For your safety, please read manual before using, thank you!
sensor parameters
| Sensor dimensions |
7.1cm*5.3cm |
| Sensor plastic part material |
Nylon / glass fiber |
| Temperature resistance of the shell |
-50℃-150℃ |
| Volume resistivity of silica gel |
≥1.0×1013Ω•cm |
| The silicone heat-resistant |
-50℃-200℃ |
| Antenna material |
Phosphor copper nickel platin |
| Metal material of valve |
Aluminium (oxidation treatment) |
| Rubber pad material |
EPDM |
| Valve weight |
14.0g |
| Full weight of sensor (including valve nozzles) |
26.5g±2g |
| Sensor working temperature |
- 40℃-85℃ |
| Battery model |
CR2032 |
| Battery capacity |
350mAh |
| working voltage |
2.1V-3.3V |
| Emission current |
140uA |
| Self-checking current |
2.5mA |
| Sleep current |
2.4uA |
| Battery temperature resistant |
-40℃-125℃ |
| Emission frequency |
2.4GHZ |
| Emissive power |
0dbm |
Feature of Tire Pressure Monitoring System
1. LCD display with USB input charging slot.
2. RF wireless transmission.
3. receiver Battery rechargeable by charging
4. Flexible display place on dashboard freely.
5. High capacity battery for a month use.
6. Display showing 4tire pressure and tempreature all at a glance.
7. Compatible with both rxternal and internal sensor.
8. DIY installation for external sensor
9. Replacement battery for external sensor:CR2050B
10. Long life battery for internal sensor.
11. Visual and audible warning.
12. Convertible pressure and temperature unit.
