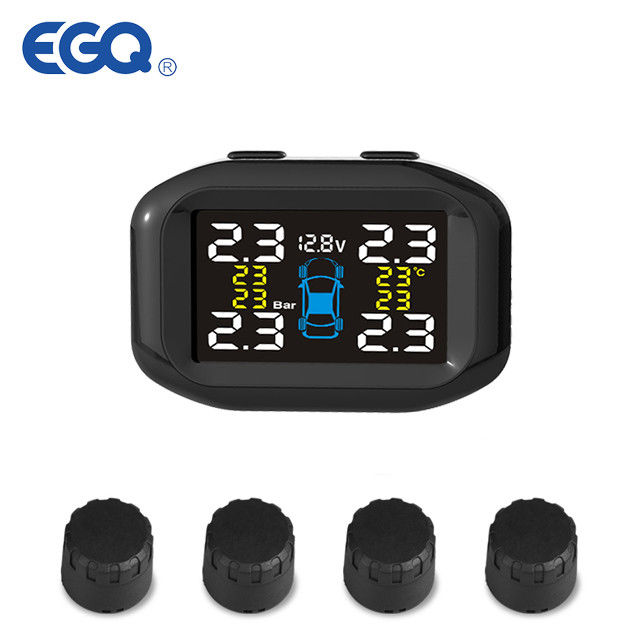

Cigarette Lighter Rechargeable Tire Pressure Monitoring System

Cigarette Lighter Rechargeable Tire Pressure Monitoring System

  • Cigarette Lighter Rechargeable Tire Pressure Monitoring System
  • Cigarette Lighter Rechargeable Tire Pressure Monitoring System
  • Cigarette Lighter Rechargeable Tire Pressure Monitoring System
Cigarette Lighter Rechargeable Tire Pressure Monitoring System
Product Details:
Place of Origin: China
Brand Name: EGQ
Certification: CE,FCC,ROHS,IATF16949:2016
Model Number: D9W
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: boxs
Delivery Time: 7-15 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000 sets per month
Contact Now
Detailed Product Description
Max Pressure: 120 Psi Product Name: Cigarette Lighter Tire Pressure Monitoring System (TPMS)
Bright Operating Current: < 8 MA Display: LCD Color Screen
RF Signal Reception Sensitivity: - 90 Dbm Storage Temperature: - 3 0℃--9 0℃
Highlight:

Rechargeable Tire Pressure Monitoring System

,

433.92 mhz Tire Pressure Monitoring System

Cigarette Lighter Rechargeable Tire Pressure Monitoring System



Universal external sensor Rechargeable Cigarette lighter Tire pressure monitoring system for passenger cars 433.92mhz



Specifications

1. Use Car charging port  to get electricity,with 4 internal or external sensors.
2. LCD pannel,with extra Micro USB port for charging.
3. Light weight design for sensor,no need to adjust to be balance when the tire moving.
4. Real-time Monitor the tempreature and pressure with high degree accuracy
5. Save fuel,forsee air leakage,reduce tire wearout,balance tire pressure,ensure safety driving.
6. RF wireless technology,can auto-alarm,when tire pressure and temperature is abnormal.



parameters



Operating Voltage 9-18 V
Display LCD color screen
Operating temperature -2 0℃--8 0℃
Storage temperature - 3 0℃--9 0℃
Bright operating current < 8 mA
Black Operating Current < 3 m A
RF Transmission frequency 433 . 92 MHz±50 KHz
RF Signal reception sensitivity - 90 dbm
Output current 5V / 2A
RF Emission Frequency 433.92MHZ
Pressure 0-120psi
Chip Freescale
Battery Life 24 month
Waterproof Grade IP67

Cigarette Lighter Rechargeable Tire Pressure Monitoring System 0

Features



Low power of vehicle battery
When the receiver detecting the voltage of vehicle battery less than 11V, the buzzer alarms, and the vaule of battery voltage
on the display screen flashes continuously until the battery voltage restores to the normal value. (In the state of vehicle
motor is not working, using the high power electric appliance in the car and TPMS USB in-charging function at the same
time , it may pull the battery voltage value to the alarm state, this is the normal phenomenon).
