Internal Four Tire Universal Tire Pressure Sensor For Trailer
Quick Detail Of Tire Pressure Monitoring System
1. Item type: Tire Pressure Monitoring System
2. The main unit is powered by solar cells. There is no need to connect the power cord and it saves precious on-board power supply ports.
3. When the vehicle is started, the built-in displacement sensor of the host computer automatically starts the host without manual startup.
4. Real-time notification of the tire pressure condition of each tire, the driver can guarantee the pressure balance of the four tires according to the tire pressure value, so as to achieve smoother running
5. Reduce tire resistance and save fuel.
6. Built-in sensor ransmitter
Product parameters
| Receiver(7 wheels) |
|
| Display interface |
LCD segment code (7 rounds with the same display) |
| Receiver port |
Vehicle battery, ACC input and RS232 output |
| Machine weight (excluding packaging) |
230g±5g |
| Abnormal self-recovery |
Toggle Switches(The switch is facing up, restart after disconnecting the external power supply.) |
| Working temperature |
-30℃-80℃ |
| Power supply mode |
Internal rechargeable lithium battery and external power supply |
| Interface voltage |
Vehicle battery 24Volt, ACC24V |
| Built-in battery voltage |
3.5-4.2V |
| Bright working current |
12mA |
| Black working current (for data communication) |
4.5mA |
| Reception sensitivity |
-95dbm |
| Dimensions |
13.5cm(length)*6.5cm(width)*2.2cm(height) |
| Pressure range |
0bar~14bar/0psi~203psi |
| type |
internal binding sensor |

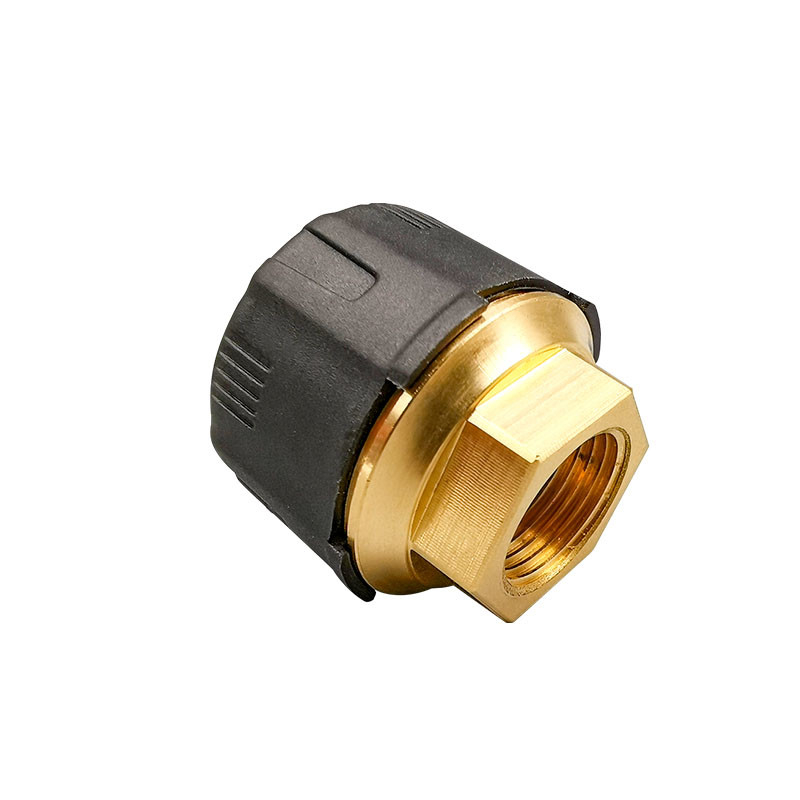

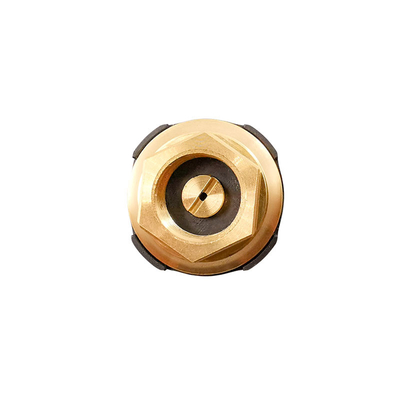

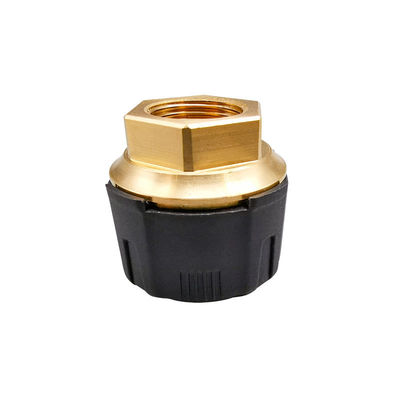

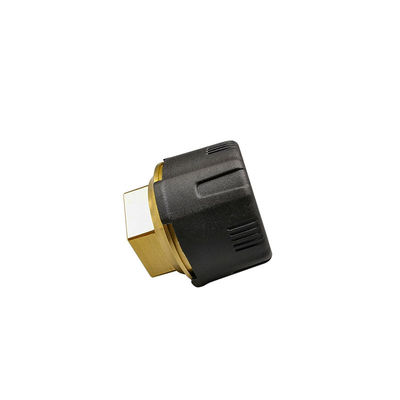

| Sensor (internal binding type sensor) |
|
| Plastic parts material |
Nylon + glass fiber |
| Machine weight (excluding bind belt) |
30g±1g |
| Shell temperature resistance |
-50℃-150℃ |
| bind belt material |
304 stainless steel |
| Power supply mode |
Button Battery |
| battery model |
CR2050 |
| battery capacity |
345mAh |
| Working voltage |
2.1V-3.6V |
| Working temperature |
-40℃-125℃ |
| working temperature |
8.7mA |
| Self-test current |
2.2mA |
| Dormant current |
0.5uA |
| Working temperature |
-40℃-125℃ |
| Transmit frequency |
433.92MHZ |
| Transmit power |
>-12dBm |
| Dimensions : |
7.3cm(length)*2.73cm(width)*2.2cm(height)(excluding antenna) |
Customization
1. Could design your own logo on the product
2. Could design the special color box, blister card and double blister as your requirement
3. Offering you the high-quality product with attractive and competitive price!
component of product
Alarm function
leakage warning
High pressure warning
Low pressure warning
High temperature warning
Low power warning
No signal warning
Product attention
Parameter Setting
1 Operation is not suggested during driving.
2 Sensor monitors pressure and temperature of tire and signal to receiver, receiver reports pressure and temperature by number and voice. If there is any abnormal pressure or temperature, flashing warning icon and voice prompt will notice driver immediately.
Drivers need to check and repair the tire immediately, in order to avoid risk of accident due to tire problem.
