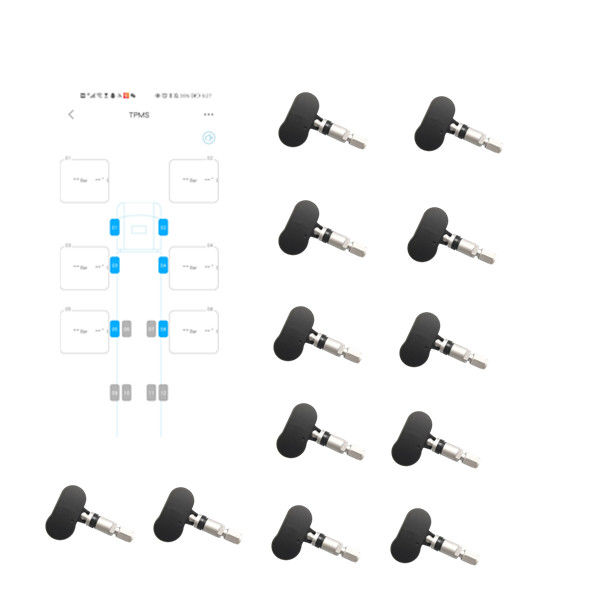

Bluetooth Eight Sensors Smart Tire Pressure Monitoring System
Universal internal Bluetooth eight sensors Tire pressure monitoring system for Passenger car 2.4Ghz
Hot sale bluetooth external tpms tire pressure monitoring system
Once BLE tire sensor installed in wheel, tire pressure and temperature can be displayed in cellphone with APP. During travel, tire pressure and temperature displayed in real time and send alert when statistics' abnormal. For your safety, please read manual before using, thank you!
WARNING
1: Support cellphone with Bluetooth 4.0 or above. Do NOT support Cellphone with Bluetooth lower than 4.0.(Due to the different hardware performance of android phone manufacturers, data transmission may be delayed, which is a normal phenomenon)
2: Product displays by cellphone. During driving, please be careful when viewing tire pressure and temperature in cellphone.
3: If tire pressure accelerates down or up continuously,please stop car and check if there's any problem with the tire.
4: This product can read tire pressure and temperature, but it cannot avoid sudden accident caused by tire. It's important to use tire with high quality.
5: Slightly tire leakage makes tire pressure decreases over time is normal. It has nothing to do with this product installation.
Function
Parameter Setting
Tire quantity selection setting
Pressure unit setting
sensor parameters
| Sensor dimensions |
7.1cm*5.3cm |
| Sensor plastic part material |
Nylon / glass fiber |
| Temperature resistance of the shell |
-50℃-150℃ |
| Volume resistivity of silica gel |
≥1.0×1013Ω•cm |
| The silicone heat-resistant |
-50℃-200℃ |
| Antenna material |
Phosphor copper nickel platin |
| Metal material of valve |
Aluminium (oxidation treatment) |
| Rubber pad material |
EPDM |
| Valve weight |
14.0g |
| Full weight of sensor (including valve nozzles) |
26.5g±2g |
| Sensor working temperature |
- 40℃-85℃ |
| Battery model |
CR2032 |
| Battery capacity |
350mAh |
| working voltage |
2.1V-3.3V |
| Emission current |
140uA |
| Self-checking current |
2.5mA |
| Sleep current |
2.4uA |
| Battery temperature resistant |
-40℃-125℃ |
| Emission frequency |
2.4GHZ |
| Emissive power |
0dbm |
Features
1. Prevent accidents
2. Real-time monitoring of tire pressure and temperture to prevent puncture
3. Extend tire life
4. Reduces wear on the suspension system
5. Make driving more economical
DESCRIPTION:
Thanks for choosing our BLE TPMS product which is designed for smart cellphones and supports cellphone with Bluetooth 4.0 or above. Once BLE tire sensor installed in wheel, tire pressure and temperature can be displayed in cellphone with APP. During travel, tire pressure and temperature displayed in real time and send alert when statistics abnormal For your safety, please read manua before using.
