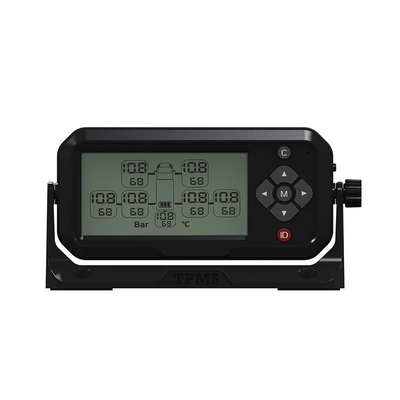

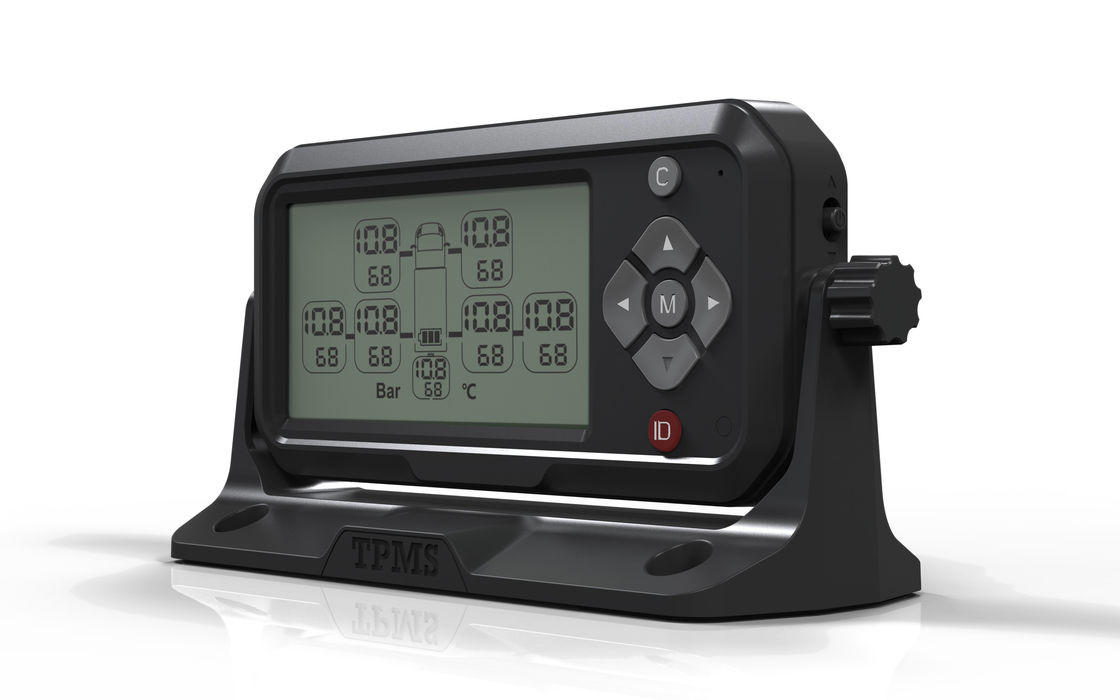

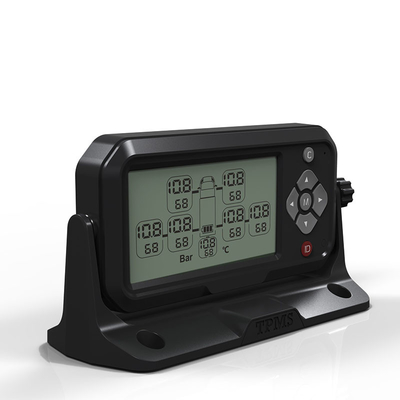

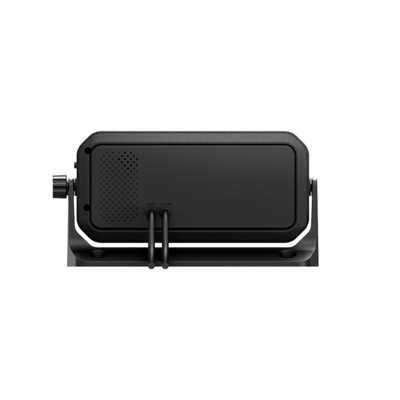

RS232 7 Wheels 12mA 4V Tire Pressure Monitoring System

RS232 7 Wheels 12mA 4V Tire Pressure Monitoring System

  • RS232 7 Wheels 12mA 4V Tire Pressure Monitoring System
  • RS232 7 Wheels 12mA 4V Tire Pressure Monitoring System
  • RS232 7 Wheels 12mA 4V Tire Pressure Monitoring System
  • RS232 7 Wheels 12mA 4V Tire Pressure Monitoring System
RS232 7 Wheels 12mA 4V Tire Pressure Monitoring System
Product Details:
Place of Origin: China
Brand Name: EGQ
Certification: CE,FCC,ROHS,IATF16949:2016
Model Number: B
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: boxs
Delivery Time: 2-15 work days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 10000 sets per month
Contact Now
Detailed Product Description
Receiver Abnormal Self-recovery: Toggle Switches(The Switch Is Facing Up, Restart After Disconnecting The External Power Supply.) Receiver Working Temperature: -30-85℃
Receiver Power Supply Mode: Internal Rechargeable Lithium Battery And External Power Supply Receiver Interface Voltage: Vehicle Battery 24Volt, ACC9~50V
Function: Prevent Tire Blowout And Reduce The Risk Of Accidents Display Viewing Angle: Manual Adjustment
Highlight:

12mA Tire Pressure Monitoring System

,

4V Tire Pressure Monitoring System

,

RS232 Tire Pressure Receiver

7 Wheels Commercial Truck Tire Pressure Monitoring System

Advantage
- High-definition LCD color screen display
- Supports  charging
- Shows Seven wheels' tire pressure and temperature simultaneously
- High and low tire pressure alarm
- High temperature alarm
- Air leakage condition alarm
- Multiple information: sensor/display's battery capacity display, solar energy charging display, spare tire display
- Non-stop monitor always keeps an eye on your car's performance
- Reliable alarm system delivers audio alerts whenever an unusual situation occurs
- Low power alarm


Product parameters


Receiver
Display interfaceLCD segment code (7 rounds with the same display)
Receiver portVehicle battery, ACC input and RS232 output
Machine weight (excluding packaging)230g±5g
Abnormal self-recoveryToggle Switches(The switch is facing up, restart after disconnecting the external power supply.)
Working temperature-30-85℃
Power supply modeBuilt-in rechargeable lithium battery and external power supply
Interface voltageVehicle battery 24V, ACC9~50Volt
Built-in battery voltage3.5-4.2V
Bright working current12mA
Black working current (for data communication)4.5mA
Reception sensitivity-95dbm
Dimensions13.5cm(length)*6.5cm(width)*2.2cm(height)


System function

Prevent tire blowout and reduce the risk of accidents;

Reduce vehicle tire damage and extend the service life of tires;

Reduce fuel consumption of vehicles, reduce the cost of use of vehicles;

Maintain the normal braking effect and reduce the occurrence of safety accidents;

Esteemed customer:

Thank you for buying our Tire pressure Monitoring System (TPMS). This system makes you more safety when driving.It can real-time monitor tire pressure and temperature conditions.

If detected any abnormal pressure and temperature of tires, the system will transmit real-time voice alarm and flash warning icon to remind the driver.Real-time monitoring and warning can not only avoid risk of traffic accident but also make passenger safety.

RS232 7 Wheels 12mA 4V Tire Pressure Monitoring System 0

FAQ

1. Can we get a lower price? Any Discount?
• Yes, price is not a problem, everything could be negotiated based on the quantity.

2. What is your MOQ?
• No MOQ for any sample test.

3. OEM/ODM Service is available?
• Yes, EGQ have strong ability to offer customers ODM&OEM products of highest quality,but it will require the MOQ.

4. For Trade Terms, such as payment and leadtime.
• Payment Terms: We mainly support T/T bank transfer,Paypal ,Western Union Or pay online on alibaba.
• Shipping Methods: EMS, DHL, Fedex, TNT, UPS, by sea or your own shipping agent.
• Leadtime: Sample order 4 working days; Bulk order 10-25 working days(after your payment)

5. How about the Warranty?
• There are 12 month warranty.
• While the warranty is not responsible for those broken by violence or updated with other brands.
