6 Wheeler Intelligent Car Tire Pressure Monitoring System
Universal external Bluetooth six sensors Tire pressure monitoring system for Passenger car 2.4Ghz
Hot sale bluetooth external tpms tire pressure monitoring system

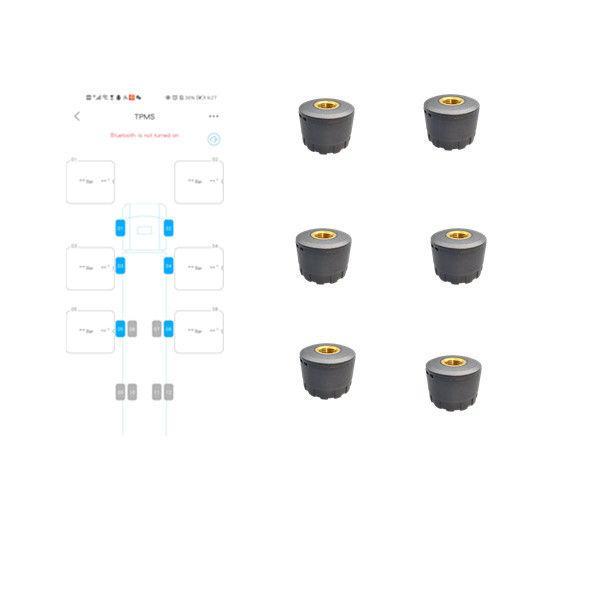

Once BLE tire sensor installed in wheel, tire pressure and temperature can be displayed in cellphone with APP. During travel, tire pressure and temperature displayed in real time and send alert when statistics' abnormal. For your safety, please read manual before using, thank you!
WARNING
1: Support cellphone with Bluetooth 4.0 or above. Do NOT support Cellphone with Bluetooth lower than 4.0.(Due to the different hardware performance of android phone manufacturers, data transmission may be delayed, which is a normal phenomenon)
2: Product displays by cellphone. During driving, please be careful when viewing tire pressure and temperature in cellphone.
3: If tire pressure accelerates down or up continuously,please stop car and check if there's any problem with the tire.
4: This product can read tire pressure and temperature, but it cannot avoid sudden accident caused by tire. It's important to use tire with high quality.
5: Slightly tire leakage makes tire pressure decreases over time is normal. It has nothing to do with this product installation.
sensor parameters
| Sensor SIZE |
2.1cm(width)*1.7cm(height) |
| Materials of plastic part |
Nylon/Fiberglass |
| Case working temperature |
-50℃-150℃ |
| Valve crew size |
8V1 outer screw |
| Material of valve screw |
phosphor copper |
| baterry replacement tool |
4.2cm(width)*0.6cm(height) |
| Material of battery replacement tool |
ABS |
| Material of Anti-theif nut |
Nickel plated brass |
| Weight of Anti-theif nut(single piece) |
0.7g |
| Waterproof rubber ring size |
Diameter:1.6cm,wire diameter:1.0mm |
| Material of waterproof rubber ring |
Rubber |
| Sensor weight |
9.8g±1g |
| Sensor working temperature |
-30℃-80℃ |
| Battery Model No. |
CR1632 |
| Capacity of battery |
140mAh |
| Working voltage |
2.1V-3.6V |
| Transmitting current |
140uA |
| Self-testing current |
2.5mA |
| Sleeping current |
2.4uA |
| battery working temperature |
-30℃-80℃ |
| Transmitting frequency |
0dbm |
Functions and Features:
Real-time monitoring the pressure and temperature, 4 tires data displayed simultaneously
Wireless transmission technology,100% DIY installation
With built-in rechargeable explosion proof lithium battery,panasonic cr1632
Vibration awaken controlled
Support' BAR' 'PSI' unit optional
Wireless monitor could be placed anywhere.
Intelligent Alarm
High Pressure Alert
It will start to warn when the tire pressure is over the upper limit
Low Pressure Alert
It will start to warn when the tire pressure is under the lower limit
