Eight Sensors Bluetooth Tyre Pressure Monitor For Passenger Car
Universal external Bluetooth eight sensors Tire pressure monitoring system for Passenger car 2.4Ghz
Products Advantages
* All the parts can supply original package
* OE quality
* Accept trial order
* Fast delivery
* Factory price,let you have enough profit
* Passionate team
* Excellent pre-sales and after-sales services.
Hot sale bluetooth external tpms tire pressure monitoring system

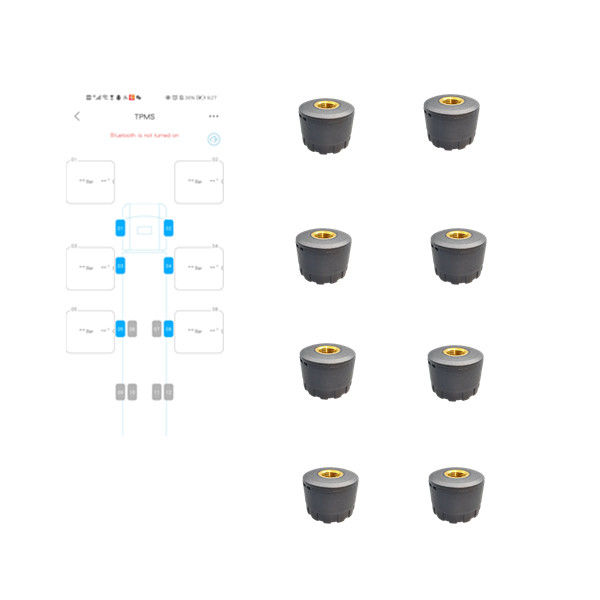

Once BLE tire sensor installed in wheel, tire pressure and temperature can be displayed in cellphone with APP. During travel, tire pressure and temperature displayed in real time and send alert when statistics' abnormal. For your safety, please read manual before using, thank you!
WARNING
1: Support cellphone with Bluetooth 4.0 or above. Do NOT support Cellphone with Bluetooth lower than 4.0.(Due to the different hardware performance of android phone manufacturers, data transmission may be delayed, which is a normal phenomenon)
2: Product displays by cellphone. During driving, please be careful when viewing tire pressure and temperature in cellphone.
3: If tire pressure accelerates down or up continuously,please stop car and check if there's any problem with the tire.
4: This product can read tire pressure and temperature, but it cannot avoid sudden accident caused by tire. It's important to use tire with high quality.
5: Slightly tire leakage makes tire pressure decreases over time is normal. It has nothing to do with this product installation.
sensor parameters
| Sensor SIZE |
2.1cm(width)*1.7cm(height) |
| Materials of plastic part |
Nylon/Fiberglass |
| Case working temperature |
-50℃-150℃ |
| Valve crew size |
8V1 outer screw |
| Material of valve screw |
phosphor copper |
| baterry replacement tool |
4.2cm(width)*0.6cm(height) |
| Material of battery replacement tool |
ABS |
| Material of Anti-theif nut |
Nickel plated brass |
| Weight of Anti-theif nut(single piece) |
0.7g |
| Waterproof rubber ring size |
Diameter:1.6cm,wire diameter:1.0mm |
| Material of waterproof rubber ring |
Rubber |
| Sensor weight |
9.8g±1g |
| Sensor working temperature |
-30℃-80℃ |
| Battery Model No. |
CR1632 |
| Capacity of battery |
140mAh |
| Working voltage |
2.1V-3.6V |
| Transmitting current |
140uA |
| Self-testing current |
2.5mA |
| Sleeping current |
2.4uA |
| battery working temperature |
-30℃-80℃ |
| Transmitting frequency |
0dbm |
Intelligent Alarm
High Temperature Alert
It will start to warn when the inner tire temperature is over the upper limit
No Signal Alert
It will start to warn when the tire condition can not be detected over time
FAQ
Q:How long is the lead time for sending sample ? Does the sample fee can be returned ?
A: Usually it will takes 2~5 days working days for sample preparing & sending.
If the order reach or exceed behind MOQ quantity, sample fee will be refunded.
Q: What is your shipping way?
A: We will help you to choose the best shipping way according to your detail requirements,By sea,By air or By express,etc.
Q. How do you control the quality?
A: We will make samples before mass production, and after sample approved, we will begin mass production.Doing 100% inspection during production; then do random inspection.before packing; taking pictures after packing.
Q.If any quality problem, how can you settle it for us?
A: Any problem, our company has Professional technicians will be deal with it timely.
