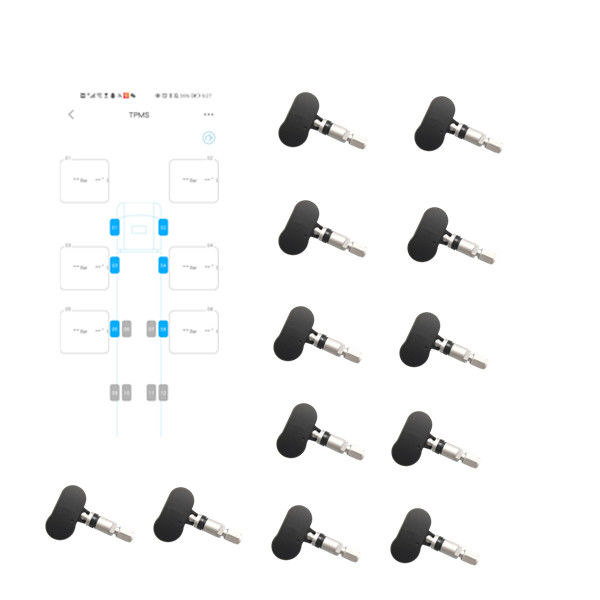

Twelve Sensors RF Wireless Tire Pressure Monitoring System

Twelve Sensors RF Wireless Tire Pressure Monitoring System

  • Twelve Sensors RF Wireless Tire Pressure Monitoring System
Twelve Sensors RF Wireless Tire Pressure Monitoring System
Product Details:
Place of Origin: China
Brand Name: EGQ
Certification: CE,FCC,ROHS,IATF16949:2016
Model Number: BLE TPMS
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: boxs
Delivery Time: 7-15 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000 sets per month
Contact Now
Detailed Product Description
Max Pressure: 120 Psi Product Name: RF Wireless Twelve Tire Pressure Monitoring System ( Bluetooth TPMS)
Frequency: 2.4Ghz Function: Temperature Unit Setting
Battery Temperature Resistant: -40℃-125℃ Emission Frequency: 2.4GHZ
Highlight:

wireless tire pressure monitor

,

wireless Tire pressure monitoring system

Twelve Sensors RF Wireless Tire Pressure Monitoring System



Universal internal Bluetooth twelve sensors Tire pressure monitoring system for Passenger car 2.4Ghz



Specifications



LCD pannel,with extra Micro USB port for charging.



Real-time Monitor the tempreature and pressure with high degree accuracy



RF wireless technology,can auto-alarm,when tire pressure and temperature is abnormal.



Support tire position exchange function.



With Freescale Chip and RENATA anti-explosion battery.



Real-time Wireless Car Tire Pressure Monitoring System Solar External Internal Universal TPMS



Hot sale bluetooth external tpms tire pressure monitoring system

Once BLE tire sensor installed in wheel, tire pressure and temperature can be displayed in cellphone with APP. During travel, tire pressure and temperature displayed in real time and send alert when statistics' abnormal. For your safety, please read manual before using, thank you!



sensor parameters



Sensor dimensions 7.1cm*5.3cm
Sensor plastic part material Nylon / glass fiber
Temperature resistance of the shell -50℃-150℃
Volume resistivity of silica gel ≥1.0×1013Ω•cm
The silicone heat-resistant -50℃-200℃
Antenna material Phosphor copper nickel platin
Metal material of valve Aluminium (oxidation treatment)
Rubber pad material EPDM
Valve weight 14.0g
Full weight of sensor (including valve nozzles) 26.5g±2g
Sensor working temperature - 40℃-85℃
Battery model CR2032
Battery capacity 350mAh
working voltage 2.1V-3.3V
Emission current 140uA
Self-checking current 2.5mA
Sleep current 2.4uA
Battery temperature resistant -40℃-125℃
Emission frequency 2.4GHZ
Emissive power 0dbm





Features



Temperature unit setting



Pressure threshold setting



High temperature threshold setting





FAQ



Q. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.



Q. What about the lead time?
A: Sample needs 3-5 days.



Q. What does EGQ do?

A: We provide many kinds of car&truck accessories for resellers or fleet managers,like TPMS,MDVR,Dashcam and Driver Fatigue Monitor,and so on.



Q. What's your warranty policy?

A: Most of our products has 12 months warranty, however some special parts can exceed to 24 months.If products have a fault in warranty, you can send it back to us and we will fix or exhange a new one for you.



Q. Does your company provide an OEM service?

A: Yes,we do.But we need to know your OEM details and evaluate it before quotation.



Q. What is your shipment method?

A: As the products have a built-in battery,so we usually recommend ship by HK DHL for small orders, and ship by sea for bulk order.
