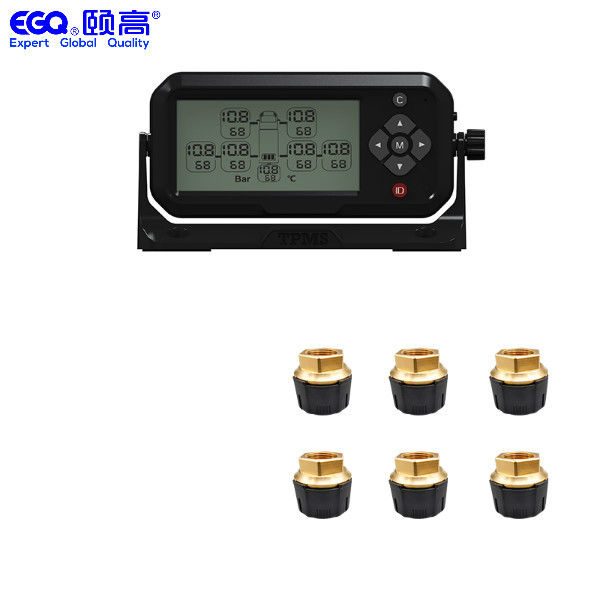

OTR Sensors SIX Tires Tpms Tyre Pressure Monitoring System

OTR Sensors SIX Tires Tpms Tyre Pressure Monitoring System

  • OTR Sensors SIX Tires Tpms Tyre Pressure Monitoring System
OTR Sensors SIX Tires Tpms Tyre Pressure Monitoring System
Product Details:
Place of Origin: China
Brand Name: EGQ
Certification: CE,FCC,ROHS,IATF16949:2016
Model Number: B6OZ0
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: boxs
Delivery Time: 7-15 work days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 10000 sets per month
Contact Now
Detailed Product Description
Features: Internal TRUCK TPMS,2 Tires To 26 Tires Display Interface: LCD Segment Code (26 Rounds With The Same Display)
Max Pressure: 14bar Transmit Frequency: 433.92MHZ
Sensor Working Temperature: -30℃-80℃ Transmit Power: -10dbm
Highlight:

Tpms Tyre Pressure Monitoring System

,

SIX Tires Tpms Tyre Pressure Monitoring System

OTR Sensors SIX Tires Tpms Tyre Pressure Monitoring System





12V1 433.92MHZ OTR sensors SIX tires Truck TPMS For Engineering vehicle non iclude repeater





Features



Internal TRUCK TPMS,2 tires to 26 tires



Easy to install, Perfect match between embedded monitor and original car interior;



Button sensitive, easy to operate and learn, set up and query integration;



White, elegant backlight display data is clearly visible



Supports up to 26 tires pressure / temperature monitoring simultaneously



Tire cycle display, data information, alarm icon at a glance, easy to observe;





Product parameters



Commercial vehicle repeater
Machine port Vehicle battery ACC input(24Volt)
Machine weight (excluding packaging) 120g±3g
working temperature -40℃-85℃
Normal current 4.5mA
Reception sensitivity -95dbm
Transmit frequency 433.92MHz
Transmit current <50mA
Transmit power <10dbm
Waterproof grade IP67
Dimensions 11.7cm(length)*7.9cm(width)*2.2cm
Max pressure 203psi





OTR sensors
Dimensions Φ2.4cm(diameter)*2cm( height )
Plastic parts material Nylon + glass fiber
Metal part material copper
Shell temperature resistance -50℃-150℃
Thread Size 12V1 internal thread(customizable)
Machine weight (excluding packaging) 23±1g
Power supply mode Button Battery
Battery model CR1632
Battery capacity 135mAh
Working voltage 2.1V-3.6V
Transmit current 8.7mA
Self-test current 2.2mA
Sleep current 0.5uA
Sensor working temperature -30℃-80℃
Transmit frequency 433.92MHZ
Transmit power -10dbm





FAQ



1. Can we get a lower price? Any Discount?

• Yes, price is not a problem, everything could be negotiated based on the quantity.



2. What is your MOQ?

• No MOQ for any sample test.



3. OEM/ODM Service is available?

• Yes, EGQ have strong ability to offer customers ODM&OEM products of highest quality,but it will require the MOQ.



4. For Trade Terms, such as payment and leadtime.

• Payment Terms: We mainly support T/T bank transfer,Paypal ,Western Union Or pay online on alibaba.

• Shipping Methods: EMS, DHL, Fedex, TNT, UPS, by sea or your own shipping agent.

• Leadtime: Sample order 4 working days; Bulk order 10-25 working days(after your payment)



5. How about the Warranty?

• There are 12 month warranty.

• While the warranty is not responsible for those broken by violence or updated with other brands.



6. How long is the lead time for sending sample ? Does the sample fee can be returned ?



• Usually it will takes 2~5 days working days for sample preparing & sending.

If the order reach or exceed behind MOQ quantity, sample fee will be refunded.
