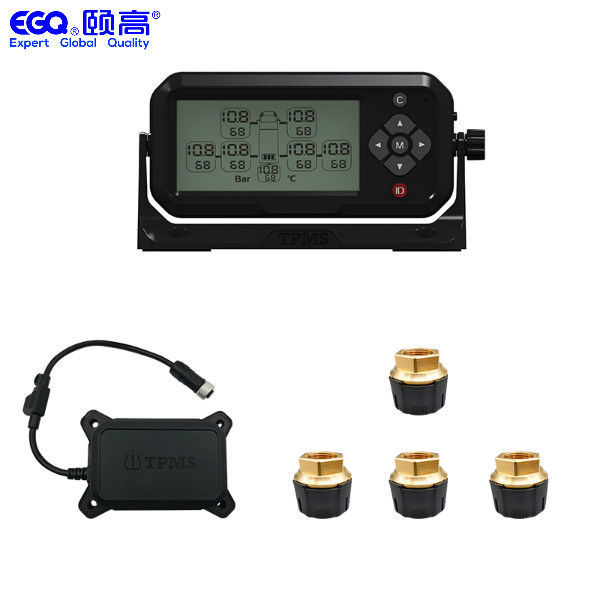

433.92MHZ Four Semi Trailer Tire Pressure Monitoring System

433.92MHZ Four Semi Trailer Tire Pressure Monitoring System

  • 433.92MHZ Four Semi Trailer Tire Pressure Monitoring System
433.92MHZ Four Semi Trailer Tire Pressure Monitoring System
Product Details:
Place of Origin: China
Brand Name: EGQ
Certification: CE,FCC,ROHS,IATF16949:2016
Model Number: B4OZ1
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: boxs
Delivery Time: 7-15 work days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 10000 sets per month
Contact Now
Detailed Product Description
Display Interface: LCD Segment Code (7 Rounds With The Same Display) Max Pressure: 203psi
Transmit Frequency: 433.92MHZ Working Voltage: 2.1-3.6Volt
Transmit Current: 8.7milliampere Self-test Current: 2.2mA
Highlight:

Semi Trailer Tire Pressure Monitoring System

,

433.92MHZ Semi Trailer Pressure Monitoring System

433.92MHZ Four Semi Trailer Tire Pressure Monitoring System



12V1 433.92MHZ OTR sensors four tires Truck TPMS For Engineering vehicle include repeater



Product parameters



Commercial vehicle repeater
Machine port Vehicle battery ACC input(24Volt)
Machine weight (excluding packaging) 120g±3g
working temperature -40℃-85℃
Normal current 4.5mA
Reception sensitivity -95dbm
Transmit frequency 433.92MHz
Transmit current <50mA
Transmit power <10dbm
Waterproof grade IP67
Dimensions 11.7cm(length)*7.9cm(width)*2.2cm
Max pressure 203psi





OTR sensors
Dimensions Φ2.4cm(diameter)*2cm( height )
Plastic parts material Nylon + glass fiber
Metal part material copper
Shell temperature resistance -50-150℃
Thread Size 12V1 internal thread(customizable)
Machine weight (excluding packaging) 23±1g
Power supply mode Button Battery
Battery model CR1632
Battery capacity 135mAh
Working voltage 2.1V-3.6V
Transmit current 8.7mA
Self-test current 2.2mA
Sleep current 0.5uA
Sensor working temperature -30-80℃
Transmit frequency 433.92MHZ
Transmit power -10dbm







Tyre Pressure Monitoring System for CAR, Truck Trailers , Semi Trailers , Caravans , RVs, 4WD, Motor holmes , any vehicles that has pneumatic tyres.



This unit monitors tyre pressure and temperature in your tyre, once you set the limit is exceeded an audible alarm is triggered for you to check your tyre. It will signal you with an alarm in up to 8 different conditions including fast and slow leakage, pressure loss and high pressure or high temperature situations.



FAQ



Q: Why Choose EGQ TPMS?



A: Professional tool worth having, UNIVERSAL FIT CAR TRUCK Protect your vehicle, Extend useful life



of tyre.Save your FUEL cost, Enhance your driving ability ,The key reason should be repeated three times.



Keep you and your family safer,Keep you and your family safer,Keep you and your family safer.



Q: Are you manufacturer or trader?



A: We are a manufacturer specialized in machining field for 8 years.



Q: What's your location? Which is the nearest port for EGQ TPMST?



A: EGQ TPMS is located in guangdong,shenzhen city, where is near from hongkong and shenzhen port.



Q: What's your MOQ?



A: 200pcs for Solar TPMS. 1000pcs for BLE TPMS.



Q. Are you manufactory or trade company ?



A: We are the manufactory specialized in TPMS(Tire pressure Monitoring system)for many years already, in shenzhen, Guangdong province, China. You are welcome to visit our factory at any time.
