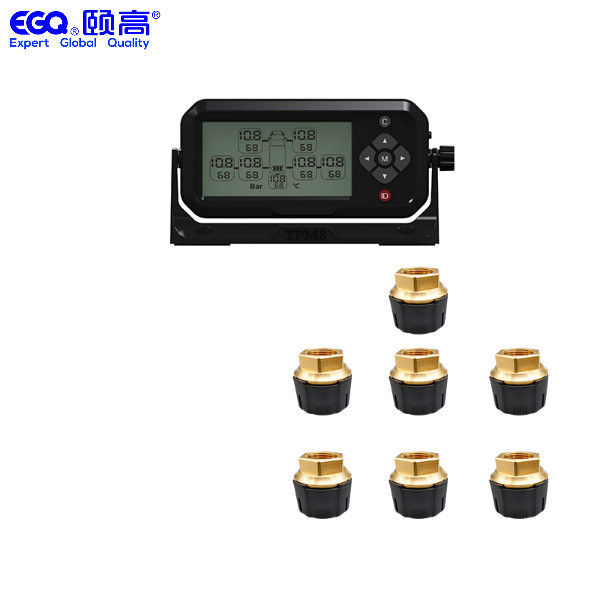

Smart Seven Tires Engineering Vehicle Tpms Monitoring System

Smart Seven Tires Engineering Vehicle Tpms Monitoring System

  • Smart Seven Tires Engineering Vehicle Tpms Monitoring System
Smart Seven Tires Engineering Vehicle Tpms Monitoring System
Product Details:
Place of Origin: China
Brand Name: EGQ
Certification: CE,FCC,ROHS,IATF16949:2016
Model Number: T7OZ0
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: boxs
Delivery Time: 7-15 work days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 10000 sets per month
Contact Now
Detailed Product Description
Display Interface: LCD Segment Code (7 Rounds With The Same Display) Max Pressure: 14bar
Transmit Frequency: 433.92MHZ Thread Size: 12V1 Internal Thread(customizable)
Machine Weight (excluding Packaging): 23±1g Power Supply Mode: Button Battery
Highlight:

Vehicle Tpms Monitoring System

,

Seven Tires Tpms Monitoring System

Smart Seven Tires Engineering Vehicle Tpms Monitoring System



433.92MHZ OTR sensors seven tires Truck TPMS For Engineering vehicle non iclude repeater



Product parameters



Commercial vehicle repeater
Machine port Vehicle battery ACC input(24Volt)
Machine weight (excluding packaging) 120g±3g
working temperature -40℃-85℃
Normal current 4.5mA
Reception sensitivity -95dbm
Transmit frequency 433.92MHz
Transmit current <50mA
Transmit power <10dbm
Waterproof grade IP67
Dimensions 11.7cm(length)*7.9cm(width)*2.2cm
Max pressure 203psi



System function



Maintain the normal tire pressure and improve the comfort of vehicle ride;



Reduce the pollution of vehicle exhaust emissions to the environment, and create a green and environmental friendly social environment;





OTR sensors
Dimensions Φ2.4cm(diameter)*2cm( height )
Plastic parts material Nylon + glass fiber
Metal part material copper
Shell temperature resistance -50℃-150℃
Thread Size 12V1 internal thread(customizable)
Machine weight (excluding packaging) 23±1g
Power supply mode Button Battery
Battery model CR1632
Battery capacity 135mAh
Working voltage 2.1V-3.6V
Transmit current 8.7mA
Self-test current 2.2mA
Sleep current 0.5uA
Sensor working temperature -30℃-80℃
Transmit frequency 433.92MHZ
Transmit power -10dbm





What You Will Get



- Shows seven wheels' tire pressure and temperature simultaneously



- High and low tire pressure alarm



- High temperature alarm



- Air leakage condition alarm



Main features:

- Powerful TPMS:

1. Tyre pressure monitoring system (TPMS) can monitor the tyre pressure/temperature status in real time,

which will transmit real-time voice alarm and flash warning iron to remind the driver for the comfortableness of vehicle and driving safety.

2. Displays tire pressure and temperature simultaneously.

3. Air leakage warning, low pressure warning, high pressure warning.

4. High temperature warning,low power warning, no signal warning.



Delivery term?

Sample will be sent within 3-7 working days after received payment;Need about 20-25 working days for bulk order.



Warranty Policy?

We provide warranty for 12 months and we also provide another option which is you can choose 1% spare parts when you placing the order instead of 1 year warranty.
