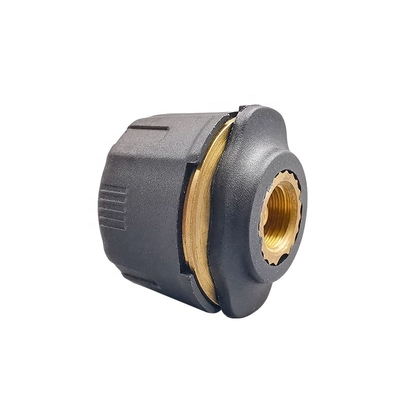

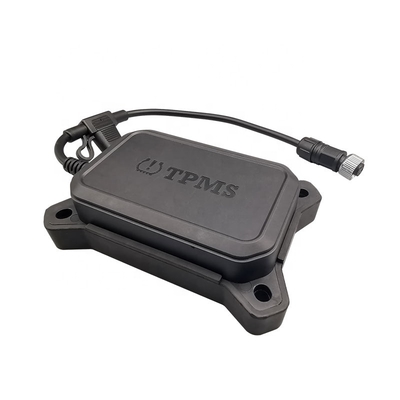

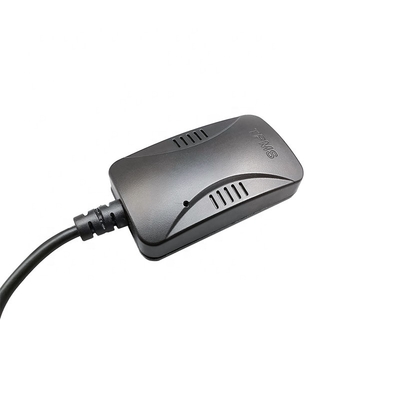

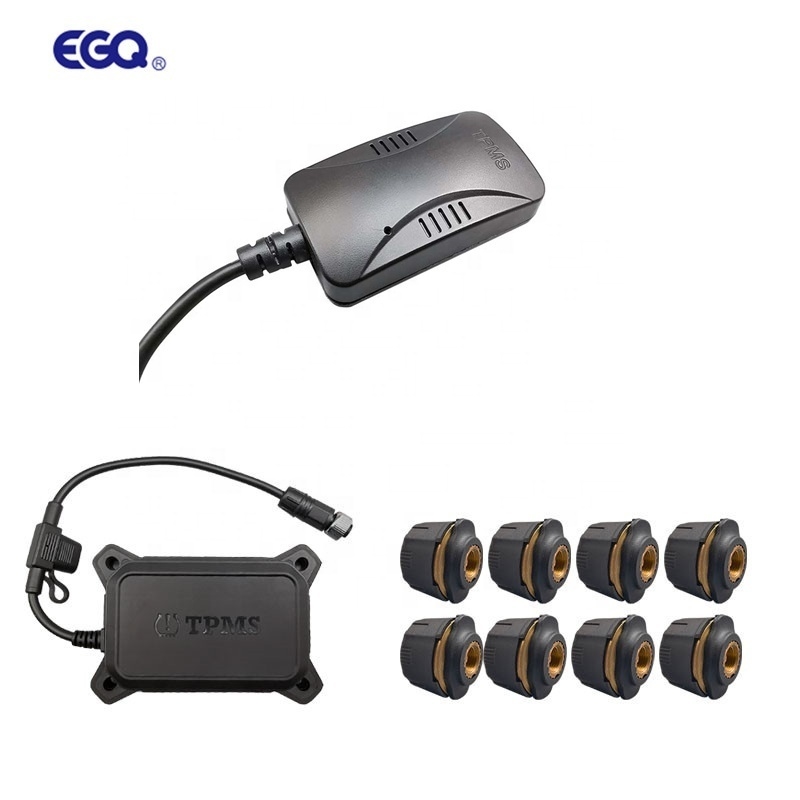

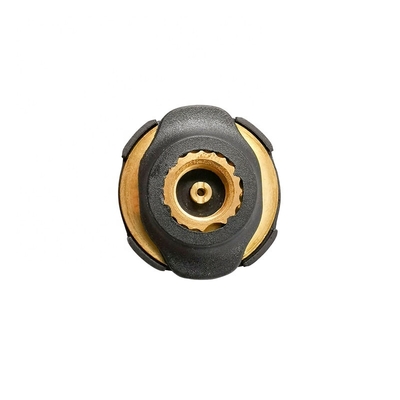

8mm External TPMS Sensor with RS232 Receiver for Trailers

8mm External TPMS Sensor with RS232 Receiver for Trailers

  • 8mm External TPMS Sensor with RS232 Receiver for Trailers
  • 8mm External TPMS Sensor with RS232 Receiver for Trailers
  • 8mm External TPMS Sensor with RS232 Receiver for Trailers
  • 8mm External TPMS Sensor with RS232 Receiver for Trailers
  • 8mm External TPMS Sensor with RS232 Receiver for Trailers
8mm External TPMS Sensor with RS232 Receiver for Trailers
Product Details:
Place of Origin: Guangdong, China
Brand Name: EGQ
Certification: CE
Payment & Shipping Terms:
Price: $153/sets 1-9 sets
Contact Now
All Products
Tire Pressure Monitoring System (38)
Trailer Tire Pressure Monitoring System (37)
Truck Tire Pressure Monitoring System (121)
Bus TPMS (14)
OTR TPMS (32)
6 Tire Pressure Monitoring System (11)
Car Tire Pressure Monitoring System (18)
Motorcycle TPMS (10)
Bike TPMS (8)
Solar Tire Pressure Monitoring System (22)
RV Tire Pressure Monitoring System (45)
TPMS Solutions (34)
Detailed Product Description
Warranty: 1Year Frequency: 433MHz
Voltage: 24V Pressure Range: 0 - 14
Year: Universal Model: Universal
Sensor Type: External Car Fitment: Universal
Display Type: LCD Product Type: Truck TPMS, Trailer TPMS, External Sensor TPMS
Battery Lifetime: >2Years
Highlight:

8mm TPMS sensor for trailers

,

trailer tire pressure sensor RS232

,

external TPMS sensor truck tires

Product Description
Product Description

Sensor parameters:

Certification CE
Battery Lifetime >5Years
Pressure Range 0-1400Kpa
Working Voltage 24v
Waterproof Grade IP67
Transimitting Power 8dbm
Storage Temperature -40°C-125C
Working Temperature -35°C-120°C
Temperature Resolution +3°C(25°C)
Transmitting Frenquence 433.92MHz

 Monitor parameters:

Screen On Working Current: <12mA
Screen Off Working Current: <4.5mA
Working Temperature: -30°C~85°C
Storage Temperature: -40°C~90°C
Receiving Frequency: 433.92MHZ±50KHZ
Battery Capacity: 480mAh
Working Voltage: 24V
Working Time: Charging  permenent life
Sensitivity: -95dbm
Screen: LCD  screen.



      8mm External TPMS Sensor with RS232 Receiver for Trailers 08mm External TPMS Sensor with RS232 Receiver for Trailers 18mm External TPMS Sensor with RS232 Receiver for Trailers 28mm External TPMS Sensor with RS232 Receiver for Trailers 38mm External TPMS Sensor with RS232 Receiver for Trailers 48mm External TPMS Sensor with RS232 Receiver for Trailers 5





8mm External TPMS Sensor with RS232 Receiver for Trailers 6








Packaging & Shipping

8mm External TPMS Sensor with RS232 Receiver for Trailers 7

Company Information

8mm External TPMS Sensor with RS232 Receiver for Trailers 88mm External TPMS Sensor with RS232 Receiver for Trailers 98mm External TPMS Sensor with RS232 Receiver for Trailers 108mm External TPMS Sensor with RS232 Receiver for Trailers 118mm External TPMS Sensor with RS232 Receiver for Trailers 12

why choose us?

1,We have our own professional R&D team.one stop quality service of R&D/manufacturing and aaplication can be provide here.and we have rich severice experience on ODM and OEM for all kindly of customers.



2.We make all product solution and SMT by ourself,we can control the product quality well.



3.We are realiable manufacturer,we have 16years related industrial experience.



4 We have a professional technical team to provide 24H online service.



5, We have a very strong quality control team are always available for checking quality .



6, Samples are always available for checking quality and can be dispatched to you very quickly.



7, Design ability: artwork/ Instruction manual/ product design according to customer's requirement.



8, Warranty :12months
